SliceMaster Sample Preparation Tools

precision cutting from 10-200µm



SliceMaster Micro Sample Preparation Tools are compact instruments that can easily cut thin sections from 10 to 200µm. These thinly sliced specimens may be viewed with a microscope. These instruments are simple to set-up for thin section preparation for specimens such as polypropylene bottles and multi-layer paper cartons. This product was originally designed for cutting specimens for FTIR analysis but is useful for many other applications.

The SliceMaster is available in three blade angles: vertical, angled and multi-angled. The TS-10 Pellet Slicer is for irregular sized pellets, seeds, caplets and tablets. All of the SliceMaster tools use double-edge or single edge razor blades.

SliceMaster Series Specifications Table

	HS-1 Vertical Slicer (#10187-V)	HK-1 Angled Slicer (#10187-A)	HW-1 Multi- Angled Slicer (#10187-M)	TS-1 Pellet Slicer (#10187-P)
Cutting Angle (against surface)	90°	15°	45° to 90° Stepless Variable	70° to 90°
Sample Holder	Removable	Body Fixed	Removable	Removable
Sample Stage	Feed Screw Type (500 µm/l rotation: stepless adjustable)
Maximum Thickness	3mm	0.2mm	2mm	10mm
Dimensions	85mm W × 150mm D × 110mm H	95mm W × 115mm D × 65mm H	85mm W × 115mm D × 95mm H	85mm W x 120mm D x 110mm H
Weight	approx 730g	approx 1100g	approx 820g	approx 1100g

Blade Angle and Cut-Off Example Table

Sample Name	Sample Shape	Sample Size	Sample Cut Section Size	Blade Angle
Health Food A	Round (Pellets)	φ9.0mm	6.0mm	75°
Health Food B	Triangle (Pellets)	9.0 x 8.0mm	4.0mm	76°
Pharmaceutical Pellets A (Antibacterial)	Round (Pellets)	φ10.0mm	4.0mm	77°
Pharmaceutical B (Cold Medicine)	Football Shape (Couplet)	13.0 x 7.0mm	5.0mm	77°
Pharmaceutical C (Stomach Medicine)	Round (Pellets)	φ10.0mm	4.0mm	76°
Food A (Mouth Freshener)	Spherical	φ2.5mm	2.5mm	90°
Food B (Freshener)	Round (Pellets)	φ7.0mm	3.0mm	78°
Food C (Lemon Candies)	Spherical	φ4.0mm	4.0mm	90°
Food D (Chocolate)	Spherical with Icing	φ4.0mm	4.0mm	90°
Food E (Tapioca)	Spherical	φ2.5mm	2.5mm	90°
Grain A (Soba with Shells)	Triangular Pyramid	7.0 x 4.0mm	4.0mm	90°
Grain B (Wheat with Shells)	Oval	7.0 x 3.0mm	3.0mm	90°
Grain C (Rice with Hulls)	Oval	8.0 x 3.0mm	2.0mm	90°
Industrial Products A (O Ring)	Doughnut (Resin)	φ9.0mm	1.0mm	90° (Using Liquid Nitrogen)
Industrial Products B (Sealing Materials)	Doughnut (Resin)	φ7.0mm	5.0mm	85°
Industrial Products C (Pet Food)	Cylindrical	10.0 x 4.0mm	4.0mm	90°

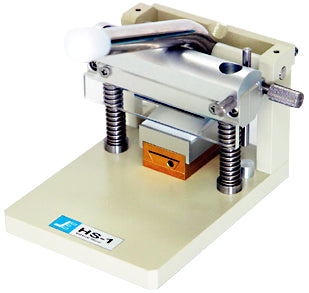

HS-1 Vertical Slicer

10187-V



The HS-1 Vertical Slicer can vertically cut samples such as polypropylene bottles into 100 to 500µm sections, multi-layer paper cartons from 100 to 600µm sections, and PET samples from 150 to 400µm sections. Items such as polyester or other polymers can be sliced with a variable thickness of 100µm or greater.

1000µm	Polypropylene Bottles
800µm	Multi-layered Paper Cartons
600µm	Polyethylene Tubes
400µm	PET Bottles
200µm	Polyester Cards
100µm	Straws, Copy Paper, Polymide Sheets, etc.



HK-1 Angled Slicer

10187-A



The HK-1 Angled Slicer can cut samples at a 15° angle. It can cut samples of coated paper to 140µm, zip-lock bags to 100µm, hair to 80µm and snack food bags to 60µm.

200µm	Polyester Cards
160µm	Coated Paper
120µm	Thick Bags for Tea or Zip Locks*
80µm	Hair, Instant/Snack Food Bags*
40µm	Polypropylene Cartons
10µm	Polyvinyl Chloride and Polyvinylidene Chloride Wrappers, Polyethylene Bags, Aluminum Foil
*Polyethylene, Polypropylene, Polyester, Polyimide, Polyvinyl Alcohol, Polyvinyl Acetate, etc.

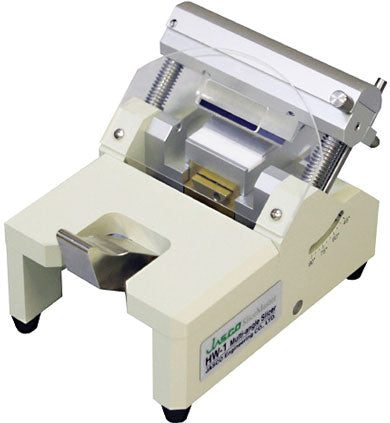

HW-1 Multi-Angle Slicer

10187-M

The HW-1 Multi-Angle Slicer can cut samples at any angle from 45° to 90°. Various types of samples can be prepared with thin section thickness of 10 to 500µm, with the ability to select the desired sample thickness.

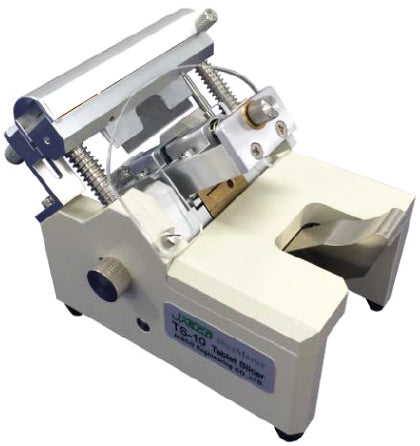

TS-10 Pellet Slicer

10187-P

The TS-10 Pellet Slicer cuts at angles of 70° to 90° angles. The TS-10 Pellet Slicer used for cutting irregular sized pellets, seeds, caplets and tablets.

---

ACCESSORIES FOR SliceMaster

Feather^® Blades

121-9

Carbon steel; sharp edges. Break in half lengthwise for use (protect fingers and use eye protection). This is the preferred cutting blade for use with the PELCO easiSlicer™. Ideally suited for use with Microslicer™, Vibratome^® and other vibratory slicers. Excellent when used as is (unbroken) in McIlwain Tissue Chopper.
• Length: 42.8mm (1.685")
• Cutting Edge Length: 36mm (1.42")
• Width: 22mm (0.865")
• Thickness: 0.127mm (0.0045")

---

GEM^® Single Edge, Carbon Steel Blades, Uncoated

121-1

Best quality 3 facet blade, single edge, aluminum back. Individually protected, 2 boxes of 100 each.
• Length: 38.9mm (1.53")
• Cutting Edge Length: 38.8mm (1.527")
• Width: 19.6mm (0.77")
• Thickness: 0.229mm (0.009")
• Individually wrapped

---

GEM^® Single Edge, Carbon Steel Blades in Pop-Up Dispenser

121-111

Same as 121-1 above but in a handy plastic dispenser box of 100 blades. Push down on blue tab and a new blade pops up. Store used blades in rear slot for safe disposal.
• Length: 38.9mm (1.53")
• Cutting Edge Length: 38.8mm (1.527")
• Width: 19.6mm (0.77")
• Thickness: 0.229mm (0.009")
