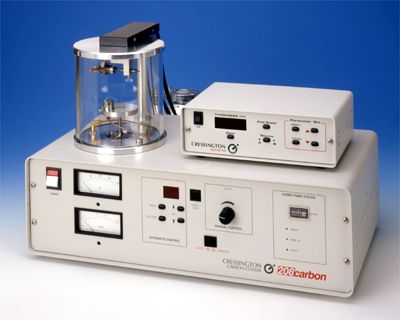

High Vacuum Carbon Coater 208carbon

High Vacuum Carbon Coater 208carbon

87130 & 87135
High Vacuum Carbon Coater 208carbon &  High Vacuum Carbon Coater 208carbon Dry Pumped with thickness controller MTM-10

High vacuum carbon coater with modular design permits rapid change between a variety of applications including TEM, SEM and microprobe analysis.

The main features are:

  • Voltage controlled rod source gives multiple evaporation capability.
  • Automatic evaporation control gives ease of use in a busy environment.
  • Thickness monitor can be fitted to give reproducible results.
  • Turbo pump on a 150mm chamber gives very rapid pumpdown.
  • Compact, space saving modern benchtop design.

The High Vacuum Carbon Coater 208carbon 87130 includes as standard:

  • pumping system HiPace80/DUO3
  • graphite rod evaporation with voltage feedback
  • auto/manual coating cycle control
  • Ø150mm chamber with telescopic top-plate support
  • Penning & Pirani gauges with auto change-over

The High Vacuum Carbon Coater 208carbon Dry Pumped 87135 includes standard the same items as 87130 but with oil-free vacuum system pumping system HiPace80/MVP020


Evaporation Supply


Fully integrated electronic feedback-controlled power control. Current and voltage are monitored by sensor wires in the head where the evaporation source is part of the feedback loop. This gives the conventional rod fed source unusual stability and reproducibility. The evaporation source can be operated in "pulse" or automatic "continuous" modes. The pulsed mode, when used in conjunction with the optional MTM-10 thickness monitor, gives absolute control over the desired thickness of the carbon coating.

SPECIFICATION

Automatic sputter coater

Chamber size 150mm Ø (5.9")
Variable height, 165mm - 250mm (6.5" - 9.8")
Evaporation source Bradley type (6.15mm Ø rods)and optional Carbon Fibre Evaporation Source
Heavy duty stainless steel construction
Evaporation supply Microprocessor based
Feedback loop controlled with remote current/voltage sensing
Safety interlocked
Variable, 135A max. with over-current protection
Sample stage Static table holds 12 SEM ½" stubs
Height adjustment through 60mm
Optional rotary-planetary-tilt stage
Analogue metering Vacuum, dual range: Atm - 0.001mb
                                 1x10-3mb - 5x10-6mb
Current, 0- 200A
Control method Automatic evaporation control using programmed voltage and timer
Full manual override with pulsed or continuous operation
Digital timer, 1 - 30 seconds
Digital voltage setting, 0.1 - 5.5V
Automatic vent
Thickness monitoring Optional, MTM-10 only
Dimensions Width 420mm (16.5"), Depth 295mm (11.6"),
Height 325mm (12.8")
Weight 14Kg (30.9 lbs)
Power 800 VA max (excluding rotary pump)



Pumping system

Configuration Turbo/rotary pump combination
Pumping speed 80 litres/sec
Pumpdown time 1.5 min. to 1x10-4mb
Ultimate pressure 5x10-6mb
Desktop system Rotary pump is mounted on desktop compatible anti-vibration table
All metal vacuum coupling system


Thickness monitor

MTM-10 Microprocessor based
4 digit display with push button zero
5 times/sec. display update rate
6 MHz crystal with life-time check
Thickness range 0 - 999.9nm
Resolution Better than 0.1nm
Density range 0.50 - 30.00gm/cm3
Tooling factor range 0.25 - 8.00



Services required

Supply 100 - 120 or 200 - 240 VAC, 50/60Hz
(specify on order)
Power 1200 VA max



System dimensions

Size Width 600mm (23.6"), Depth 600mm (23.6"),
Height 360mm (14.2")
Weight 45Kg (99.5 lbs)



Documentation

SDS

Technical Notes

🚚 Estimated Delivery: 5 - 6 weeks from payment confirmation

View full details
Variant Variant total Quantity Price Variant total
High Vacuum Carbon Coater 208carbon without thickness measuring system, source shutter, R-T or R-P-T stage. PLEASE ASK FOR THE OFFER (Unit: each)87130
High Vacuum Carbon Coater 208carbon without thickness measuring system, source shutter, R-T or R-P-T stage. PLEASE ASK FOR THE OFFER (Unit: each)87130
0,00 lei/ea		 0,00 lei
Sold out
0,00 lei/ea 0,00 lei
High Vacuum Carbon Coater 208carbon Dry Pumped without thickness measuring system, source shutter, R-T or R-P-T stage. PLEASE ASK FOR THE OFFER (Unit: each)87135
High Vacuum Carbon Coater 208carbon Dry Pumped without thickness measuring system, source shutter, R-T or R-P-T stage. PLEASE ASK FOR THE OFFER (Unit: each)87135
0,00 lei/ea		 0,00 lei
Sold out
0,00 lei/ea 0,00 lei
Carbon Fibre Evaporation Source (for 108carbonA/SE) (Unit: each)85185
Carbon Fibre Evaporation Source (for 108carbonA/SE) (Unit: each)85185
4.126,13 lei/ea		 0,00 lei
4.126,13 lei/ea 0,00 lei
Partial MTM Kit (Internal Components) - a factory fitted option. Allows fitting thickness monitor without working inside the 208C instrument case. Incl.: Vacuum feedthrough RF10 (21201), Oscillator unit (21101), Internal cable BNC-BNC (21107).(Unit: each)87020
Partial MTM Kit (Internal Components) - a factory fitted option. Allows fitting thickness monitor without working inside the 208C instrument case. Incl.: Vacuum feedthrough RF10 (21201), Oscillator unit (21101), Internal cable BNC-BNC (21107).(Unit: each)87020
3.386,66 lei/ea		 0,00 lei
3.386,66 lei/ea 0,00 lei
Partial MTM Kit (External Components) incl.: MTM-10 control unit (21000), External BNC-BNC (21104), Crystal holder (21301), Crystal holder cable SMB-SMB (21307) (Unit: each)87022
Partial MTM Kit (External Components) incl.: MTM-10 control unit (21000), External BNC-BNC (21104), Crystal holder (21301), Crystal holder cable SMB-SMB (21307) (Unit: each)87022
8.680,59 lei/ea		 0,00 lei
8.680,59 lei/ea 0,00 lei
Thickness Monitor Outfit for 208C with static table incl: Internal kit (87020) & External kit (87022). PLEASE ASK FOR HE OFFER (Unit: each)87025
Thickness Monitor Outfit for 208C with static table incl: Internal kit (87020) & External kit (87022). PLEASE ASK FOR HE OFFER (Unit: each)87025
0,00 lei/ea		 0,00 lei
Sold out
0,00 lei/ea 0,00 lei
Thickness Monitor Outfit for 208C with R-T Stage incl: Internal kit (87020) & External kit (87022), Crystal head mounting bracket for R-T Stage (80211). PLEASE ASK FOR THE OFFER (Unit: each)87031
Thickness Monitor Outfit for 208C with R-T Stage incl: Internal kit (87020) & External kit (87022), Crystal head mounting bracket for R-T Stage (80211). PLEASE ASK FOR THE OFFER (Unit: each)87031
0,00 lei/ea		 0,00 lei
Sold out
0,00 lei/ea 0,00 lei
Thickness Monitor Outfit for 208C with R-P-T Stage incl: Internal kit (87020) & External kit (87022), Crystal head mounting bracket for R-P-T Stage (80212). PLEASE ASK FOR HE OFFER (Unit: each)87032
Thickness Monitor Outfit for 208C with R-P-T Stage incl: Internal kit (87020) & External kit (87022), Crystal head mounting bracket for R-P-T Stage (80212). PLEASE ASK FOR HE OFFER (Unit: each)87032
0,00 lei/ea		 0,00 lei
Sold out
0,00 lei/ea 0,00 lei
Thickness Monitor Crystals (pkg/10) (Unit: each)21300
Thickness Monitor Crystals (pkg/10) (Unit: each)21300
973,17 lei/ea		 0,00 lei
973,17 lei/ea 0,00 lei
Manual Carbon Source Shutter (Unit: each)87049
Manual Carbon Source Shutter (Unit: each)87049
3.892,66 lei/ea		 0,00 lei
3.892,66 lei/ea 0,00 lei
Rotary-Tilting (R-T) Stage (∅150mm) incl: mounting collar with glass spacer, variable rotation speed control and one table to be specified on order: 87434, 87435, 87436, 87439, 87440, 87441, 87442 or 87443. PLEASE ASK FOR THE OFFER (Unit: each)87054
Rotary-Tilting (R-T) Stage (∅150mm) incl: mounting collar with glass spacer, variable rotation speed control and one table to be specified on order: 87434, 87435, 87436, 87439, 87440, 87441, 87442 or 87443. PLEASE ASK FOR THE OFFER (Unit: each)87054
0,00 lei/ea		 0,00 lei
Sold out
0,00 lei/ea 0,00 lei
∅80mm Table for 1 x slide, 3” wafer (Unit: each)87434
∅80mm Table for 1 x slide, 3” wafer (Unit: each)87434
1.167,91 lei/ea		 0,00 lei
1.167,91 lei/ea 0,00 lei
∅105mm Table for 3 x slides, 4” wafer (Unit: each)87435
∅105mm Table for 3 x slides, 4” wafer (Unit: each)87435
1.362,43 lei/ea		 0,00 lei
1.362,43 lei/ea 0,00 lei
∅75mm Table for 2 x petrographic slides (Unit: each)87436
∅75mm Table for 2 x petrographic slides (Unit: each)87436
1.206,75 lei/ea		 0,00 lei
1.206,75 lei/ea 0,00 lei
∅40mm Table for 1 x ∅32mm SEM mount (Unit: each)87439
∅40mm Table for 1 x ∅32mm SEM mount (Unit: each)87439
350,32 lei/ea		 0,00 lei
350,32 lei/ea 0,00 lei
∅40mm Table for 4 x 0.5” SEM pin stubs (Unit each)87440
∅40mm Table for 4 x 0.5” SEM pin stubs (Unit each)87440
350,32 lei/ea		 0,00 lei
350,32 lei/ea 0,00 lei
∅40mm Table for 3 x JEOL ∅12mm SEM mounts (Unit: each)87441
∅40mm Table for 3 x JEOL ∅12mm SEM mounts (Unit: each)87441
506,00 lei/ea		 0,00 lei
506,00 lei/ea 0,00 lei
∅40mm Table for 4 x JEOL ∅10mm SEM mounts (Unit: each)87442
∅40mm Table for 4 x JEOL ∅10mm SEM mounts (Unit: each)87442
506,00 lei/ea		 0,00 lei
506,00 lei/ea 0,00 lei
∅40mm Table for 3 x Hitachi ∅15mm SEM mounts (Unit: each)87443
∅40mm Table for 3 x Hitachi ∅15mm SEM mounts (Unit: each)87443
506,00 lei/ea		 0,00 lei
506,00 lei/ea 0,00 lei
Rotary-Planetary-Tilting (R-P-T) Stage (∅150mm) for 108auto/SE & 108carbonA/SE incl: mounting collar with glass spacer, variable rotation speed control and 4 tables to be specified on order: 87080...87087. PLEASE ASK FOR THE OFFER (Unit: each)87053
Rotary-Planetary-Tilting (R-P-T) Stage (∅150mm) for 108auto/SE & 108carbonA/SE incl: mounting collar with glass spacer, variable rotation speed control and 4 tables to be specified on order: 87080...87087. PLEASE ASK FOR THE OFFER (Unit: each)87053
0,00 lei/ea		 0,00 lei
Sold out
0,00 lei/ea 0,00 lei
R-P-T 87053 ∅150mm Sample Table for 6 x 12.5mm pin stubs (Unit: each)87080
R-P-T 87053 ∅150mm Sample Table for 6 x 12.5mm pin stubs (Unit: each)87080
311,48 lei/ea		 0,00 lei
311,48 lei/ea 0,00 lei
R-P-T 87053 ∅150mm Sample Table for 3 x M4 and 3 x 12.5mm pin stubs (Unit: each)87081
R-P-T 87053 ∅150mm Sample Table for 3 x M4 and 3 x 12.5mm pin stubs (Unit: each)87081
350,32 lei/ea		 0,00 lei
350,32 lei/ea 0,00 lei
R-P-T 87053 ∅150mm Sample Table for 4 x ∅10mm stubs (Unit: each)87082
R-P-T 87053 ∅150mm Sample Table for 4 x ∅10mm stubs (Unit: each)87082
311,48 lei/ea		 0,00 lei
311,48 lei/ea 0,00 lei
R-P-T 87053 ∅150mm Sample Table for 4 x ∅15mm stubs (Unit: each)87083
R-P-T 87053 ∅150mm Sample Table for 4 x ∅15mm stubs (Unit: each)87083
661,80 lei/ea		 0,00 lei
661,80 lei/ea 0,00 lei
R-P-T 87053 ∅150mm Sample Table for 1 x ∅25mm mount (Unit: each)87084
R-P-T 87053 ∅150mm Sample Table for 1 x ∅25mm mount (Unit: each)87084
350,32 lei/ea		 0,00 lei
350,32 lei/ea 0,00 lei
R-P-T 87053 ∅150mm Sample Table for 1 x ∅32mm mount (Unit: each)87085
R-P-T 87053 ∅150mm Sample Table for 1 x ∅32mm mount (Unit: each)87085
389,27 lei/ea		 0,00 lei
389,27 lei/ea 0,00 lei
R-P-T 87053 ∅150mm Sample Table for 4 x ∅12.5mm stubs (Unit: each)87086
R-P-T 87053 ∅150mm Sample Table for 4 x ∅12.5mm stubs (Unit: each)87086
661,80 lei/ea		 0,00 lei
661,80 lei/ea 0,00 lei
R-P-T 87053 ∅150mm Adaptor for ∅32mm mount to ∅25mm mount (Unit: each)87087
R-P-T 87053 ∅150mm Adaptor for ∅32mm mount to ∅25mm mount (Unit: each)87087
272,53 lei/ea		 0,00 lei
272,53 lei/ea 0,00 lei
MTM-10 Thickness Monitor (control unit only) (Unit: each)21000
MTM-10 Thickness Monitor (control unit only) (Unit: each)21000
0,00 lei/ea		 0,00 lei
Sold out
0,00 lei/ea 0,00 lei
Oscillator Unit - spare part for thickness monitors (Unit: each)21101
Oscillator Unit - spare part for thickness monitors (Unit: each)21101
1.401,38 lei/ea		 0,00 lei
1.401,38 lei/ea 0,00 lei
External Cable (BNC/BNC) - spare part for thickness monitors (Unit: each)21104
External Cable (BNC/BNC) - spare part for thickness monitors (Unit: each)21104
116,84 lei/ea		 0,00 lei
116,84 lei/ea 0,00 lei
Internal Cable (BNC-BNC) with right-angle & bulkhead connectors (Unit: each)21107
Internal Cable (BNC-BNC) with right-angle & bulkhead connectors (Unit: each)21107
622,95 lei/ea		 0,00 lei
622,95 lei/ea 0,00 lei
RF10 Vacuum Feedthrough - spare part for thickness measuring system (Unit: each)21201
RF10 Vacuum Feedthrough - spare part for thickness measuring system (Unit: each)21201
1.673,91 lei/ea		 0,00 lei
1.673,91 lei/ea 0,00 lei
Crystal Holder - spare part for thickness measuring system (Unit: each)21301
Crystal Holder - spare part for thickness measuring system (Unit: each)21301
1.907,38 lei/ea		 0,00 lei
1.907,38 lei/ea 0,00 lei
Crystal Holder Cable (SMB/SMB) 19cm long for coaters without R-T or R-P-T stage - spare part for thickness measuring system (Unit: each)21305
Crystal Holder Cable (SMB/SMB) 19cm long for coaters without R-T or R-P-T stage - spare part for thickness measuring system (Unit: each)21305
311,48 lei/ea		 0,00 lei
311,48 lei/ea 0,00 lei
Crystal Holder Cable (SMB/SMB) 30cm long for coaters with R-T or R-P-T stage - spare part for thickness measuring system (Unit: each)21307
Crystal Holder Cable (SMB/SMB) 30cm long for coaters with R-T or R-P-T stage - spare part for thickness measuring system (Unit: each)21307
350,32 lei/ea		 0,00 lei
350,32 lei/ea 0,00 lei
Adjustable Crystal Head Bracket for R-P-T stage (Unit: each)80211
Adjustable Crystal Head Bracket for R-P-T stage (Unit: each)80211
622,95 lei/ea		 0,00 lei
622,95 lei/ea 0,00 lei
Crystal Head Bracket for R-T stages - spare part for thickness measuring system (Unit: each)80212
Crystal Head Bracket for R-T stages - spare part for thickness measuring system (Unit: each)80212
155,79 lei/ea		 0,00 lei
155,79 lei/ea 0,00 lei
Rotary Pump Exhaust Filters (pkg/5 ) - spare part for vacuum system (Unit: each)80156
Rotary Pump Exhaust Filters (pkg/5 ) - spare part for vacuum system (Unit: each)80156
3.191,92 lei/ea		 0,00 lei
3.191,92 lei/ea 0,00 lei
P3 Rotary Pump Oil (0.5 Litre) - consumable for vacuum system (Unit: each)81121
P3 Rotary Pump Oil (0.5 Litre) - consumable for vacuum system (Unit: each)81121
233,58 lei/ea		 0,00 lei
233,58 lei/ea 0,00 lei
Replacement Pirani Gauge Head (108/108SE) - spare part for vacuum system (Unit: each)80505
Replacement Pirani Gauge Head (108/108SE) - spare part for vacuum system (Unit: each)80505
1.946,33 lei/ea		 0,00 lei
1.946,33 lei/ea 0,00 lei
Replacement Penning Gauge Cathode Assembly (Unit: each)87521
Replacement Penning Gauge Cathode Assembly (Unit: each)87521
661,80 lei/ea		 0,00 lei
661,80 lei/ea 0,00 lei
Replacement Vent Valve (108auto) (Unit: each)80523
Replacement Vent Valve (108auto) (Unit: each)80523
1.479,17 lei/ea		 0,00 lei
1.479,17 lei/ea 0,00 lei
Replacement Glass Chamber for SE (∅150 x 150mm) (Unit: each)87010
Replacement Glass Chamber for SE (∅150 x 150mm) (Unit: each)87010
1.518,12 lei/ea		 0,00 lei
1.518,12 lei/ea 0,00 lei
Replacement Glass Spacer for SE (∅150 x 65mm) (Unit: each)87011
Replacement Glass Spacer for SE (∅150 x 65mm) (Unit: each)87011
778,53 lei/ea		 0,00 lei
778,53 lei/ea 0,00 lei
Replacement Metal Spacer (∅150 x 15mm) (Unit: each)87012
Replacement Metal Spacer (∅150 x 15mm) (Unit: each)87012
856,43 lei/ea		 0,00 lei
856,43 lei/ea 0,00 lei
Replacement Chamber O-rings for SE (∅150mm, pkg/2)87015
Replacement Chamber O-rings for SE (∅150mm, pkg/2)87015
77,90 lei/ea		 0,00 lei
77,90 lei/ea 0,00 lei
Replacement Switch/PCB for R-P-T/R-T stages (Unit: each)87066
Replacement Switch/PCB for R-P-T/R-T stages (Unit: each)87066
1.401,38 lei/ea		 0,00 lei
1.401,38 lei/ea 0,00 lei
Carbon Rod Shaper (Unit: each)30816
Carbon Rod Shaper (Unit: each)30816
739,69 lei/ea		 0,00 lei
739,69 lei/ea 0,00 lei
Precision Machined Carbon Rods for 50/60Hz (Pk 10) (Unit: each)85001
Precision Machined Carbon Rods for 50/60Hz (Pk 10) (Unit: each)85001
1.012,11 lei/ea		 0,00 lei
1.012,11 lei/ea 0,00 lei
Carbon Rods (∅6.15 x 305mm) for 50/60Hz (Pk 10) (Unit: each)85103
Carbon Rods (∅6.15 x 305mm) for 50/60Hz (Pk 10) (Unit: each)85103
1.751,70 lei/ea		 0,00 lei
1.751,70 lei/ea 0,00 lei
Carbon Rod Slider, spare part Carbon source (Unit: each)85110
Carbon Rod Slider, spare part Carbon source (Unit: each)85110
817,48 lei/ea		 0,00 lei
817,48 lei/ea 0,00 lei
Carbon Rod Slider Springs (Pk 5), spare part Carbon source (Unit: each)85111
Carbon Rod Slider Springs (Pk 5), spare part Carbon source (Unit: each)85111
233,58 lei/ea		 0,00 lei
233,58 lei/ea 0,00 lei
Copper Braids (Pk 5), spare part Carbon source (Unit: each)85112
Copper Braids (Pk 5), spare part Carbon source (Unit: each)85112
428,21 lei/ea		 0,00 lei
428,21 lei/ea 0,00 lei
Ceramic Insulators (Pk 8), spare part Carbon source (Unit: each)85113
Ceramic Insulators (Pk 8), spare part Carbon source (Unit: each)85113
506,00 lei/ea		 0,00 lei
506,00 lei/ea 0,00 lei
Feedthrough Insulator Set (2 x PTFE washers with O-ring), spare part Carbon source (Unit: each)85114
Feedthrough Insulator Set (2 x PTFE washers with O-ring), spare part Carbon source (Unit: each)85114
311,48 lei/ea		 0,00 lei
311,48 lei/ea 0,00 lei
Feedthrough Electrode, spare part Carbon source (Unit: each)85115
Feedthrough Electrode, spare part Carbon source (Unit: each)85115
661,80 lei/ea		 0,00 lei
661,80 lei/ea 0,00 lei
Static Rod Holder, spare part Carbon source (Unit: each)85116
Static Rod Holder, spare part Carbon source (Unit: each)85116
1.323,48 lei/ea		 0,00 lei
1.323,48 lei/ea 0,00 lei
Moving Rod Frame, spare part Carbon source (Unit: each)85117
Moving Rod Frame, spare part Carbon source (Unit: each)85117
1.557,06 lei/ea		 0,00 lei
1.557,06 lei/ea 0,00 lei
Slider Nut (with washers), spare part Carbon source (Unit: each)85118
Slider Nut (with washers), spare part Carbon source (Unit: each)85118
70,09 lei/ea		 0,00 lei
70,09 lei/ea 0,00 lei
Spare Rod Evaporation Source (for 208carbon) (Unit: each)85150
Spare Rod Evaporation Source (for 208carbon) (Unit: each)85150
4.632,24 lei/ea		 0,00 lei
4.632,24 lei/ea 0,00 lei
Spare Fibre Evaporation Source (for 108carbonA/SE) (Unit: each)85185
Spare Fibre Evaporation Source (for 108carbonA/SE) (Unit: each)85185
4.126,13 lei/ea		 0,00 lei
4.126,13 lei/ea 0,00 lei
View cart
0

Total items

0,00 lei

Product subtotal

Taxes, discounts and shipping calculated at checkout.
View cart
