Thickness Monitor System MTM-10 & Thickness Controlling System MTM-20

Thickness Monitor System MTM-10 & Thickness Controlling System MTM-20

80225
MTM-10 Thickness Monitor System

80325
MTM-20 Thickness Monitor System

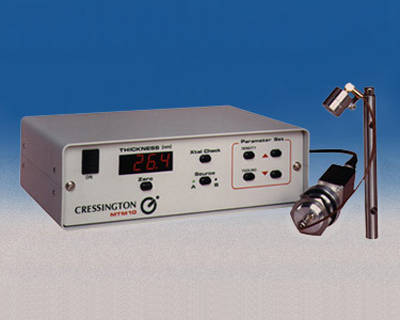

The MTM-10 is a compact, low cost thickness monitor. Originally designed for electron microscopy applications, it is also suitable for multiple use in complex deposition systems. The MTM-20 includes a thickness set-point controller for automating deposition.

The main features are:

  • Compact, low cost system designed for multiple use.
  • Simple parameter input (material density; sensor head tooling factor)
  • High speed thickness display.
  • High resolution: better than 0.1nm for aluminium.
  • Measurement range of 1000nm with crystal life display feature.

SPECIFICATION

Display 4 digit red LED (0.56")
Update rate 10Hz
Push button zeroing
Thickness range -99.9nm to +999.9nm
Resolution 0.1nm
Density range 0.50 - 30.00gm/cm3
Tooling factor range 0.25 - 8.00
Quartz crystal Industry standard 6 MHz, 14mm (0.55") Ø Au coated
Crystal check Lifetime display, 0.0 to 999.9kHz shift
Parameter setting Non-volatile parameter memory with automatic acceleration of scrolling rate
Supply 100 - 120 or 200 - 240 VAC @ 10 VA, 50/60Hz
Dimensions Width 208mm (8.2"), Height 76mm (3.0"),
Depth 160mm (6.3"), Weight 1.5kg (3.75 lbs)
MTM-10
Terminate facility Not fitted
MTM-20
Terminate facility Push button enable/disable
Termination range 0 - 999.9nm



Documentation

SDS

Technical Notes

View full details
