Carbon Coater 108carbonA/SE

87105

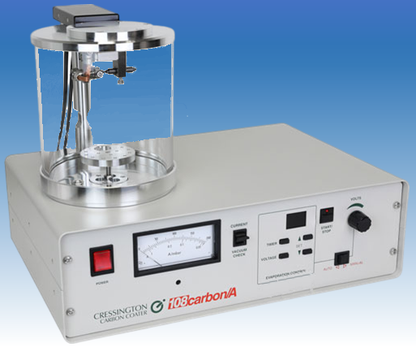

Automatic Carbon Coater 108carbonA/SE with
thickness controller MTM-10

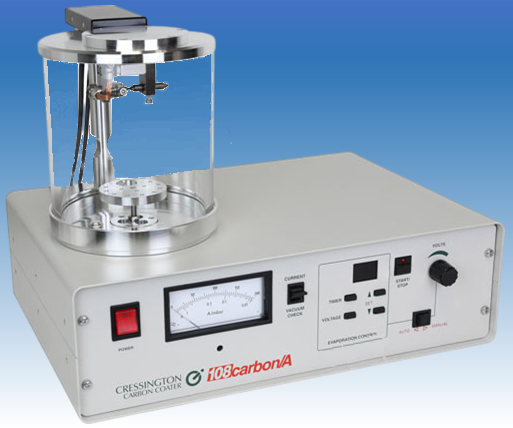

The Cressington 108carbonA/SE evaporation supply gives the conventional rod fed source unusual stability and reproducibility. Current and voltage are monitored by sensor wires in the head and the evaporation source is controlled as part of a feedback loop. Power consumption is low and the source shows exceptional re-starting characteristics. The evaporation source can be operated in "pulse" or "continuous" modes.

As option, the Cressington 108carbonA/SE conventional rod fed source can be replaced by operator with a Carbon Fibre Evaporation Source (for 108carbonA/SE), part number 87105.

The Cressington 108carbonA/SE offers the choice of either manual or automatic evaporation.

In automatic mode the evaporation source operates at a programmed voltage for a programmed time. The programmer is simply adjusted and displays voltage and time digitally.

In manual mode the supply can be operated in "pulse" or "continuous" with the output voltage set using the rotary control.

The 108carbonA/SE Carbon Coater has the same technical specifications regarding the carbon coating capabilities as the standard 108carbonA Carbon Coater. The special feature of the 108carbonA/SE is the larger, 150mm outer diameter chamber which will accommodate the optional Rotary Tilting Stage or Rotary Planetary Tilting Stage. The advantage of using the Rotary Planetary Tilting Stage is that highly topographic specimens or larger specimens can be uniformly coated to give better conductivity when performing EDX analysis on such specimens. For more demanding TEM, STEM, EBSD and microprobe applications the 208C High Vacuum Turbo Carbon Coater is the carbon coater of choice.

Pumping System

The modular desktop design combines sputter control unit, pumping system and thickness monitor into an area of approximately 16" x 24" (42cm x 60cm). The desktop pumping system is connected with a metal coupling system. The compact high speed rotary pump is mounted on an anti-vibration table with a desktop base.

The pumping system can be easily extended into a dual pumping system to accommodate the Cressington Sputter Coater along side a Cressington Carbon Coater.

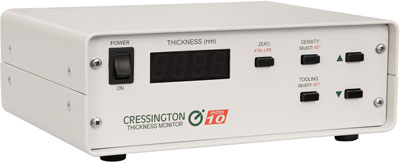

The 108 carbon coater can be retrofitted with a high resolution MTM-10 for reproducible deposition.

SPECIFICATION

Automatic sputter coater

Chamber size	150 OD x 165mm high (5.9 x 6.5")
Evaporation source	Bradley type (6.15mm Ø rods)and optional Carbon Fibre Evaporation Source Heavy duty stainless steel construction
Evaporation supply	Microprocessor based Feedback loop controlled with remote current/voltage sensing Safety interlocked Variable, 135A max. with over-current protection
Sample table	Holds 12 SEM ½" stubs Height adjustment through 60mm
Analogue metering	Vacuum, Atm - 0.001mb Current, 0 - 200A
Control method	Automatic evaporation control using programmed voltage and timer Full manual override with pulsed or continuous operation Digital timer, 1 - 9.9 seconds Digital voltage setting, 0.1 - 5.5V Automatic vent
Thickness monitoring	Optional, MTM-10 only
Dimensions	Width 420mm (16.5"), Depth 295mm (11.6"), Height 325mm (12.8")
Weight	14Kg (30.9 lbs)
Power	800 VA max (excluding rotary pump)

Pumping system

Rotary Pump	High speed, direct drive 2-stage
Pumping speed	2.5 m³/hr (50/60Hz) Pumpdown time to 0.1mb is 20/25 sec.
Desktop system	Vacuum pump is mounted on desktop compatible anti-vibration table All metal vacuum coupling system
Dimensions	Width 330mm (13.0"), Depth 215mm (8.5"), Height 210mm (8.3"), 270mm (10.6") with filter
Weight	15Kg (33.2 lbs)
Power	130 VA

Services required

Supply	100 - 120 or 200 - 240 VAC, 50/60Hz (specify on order)
Power	1000 VA max

Documentation

SDS

Technical Notes

View full details
