WELL® Diamond Wire Saw MODEL 4500

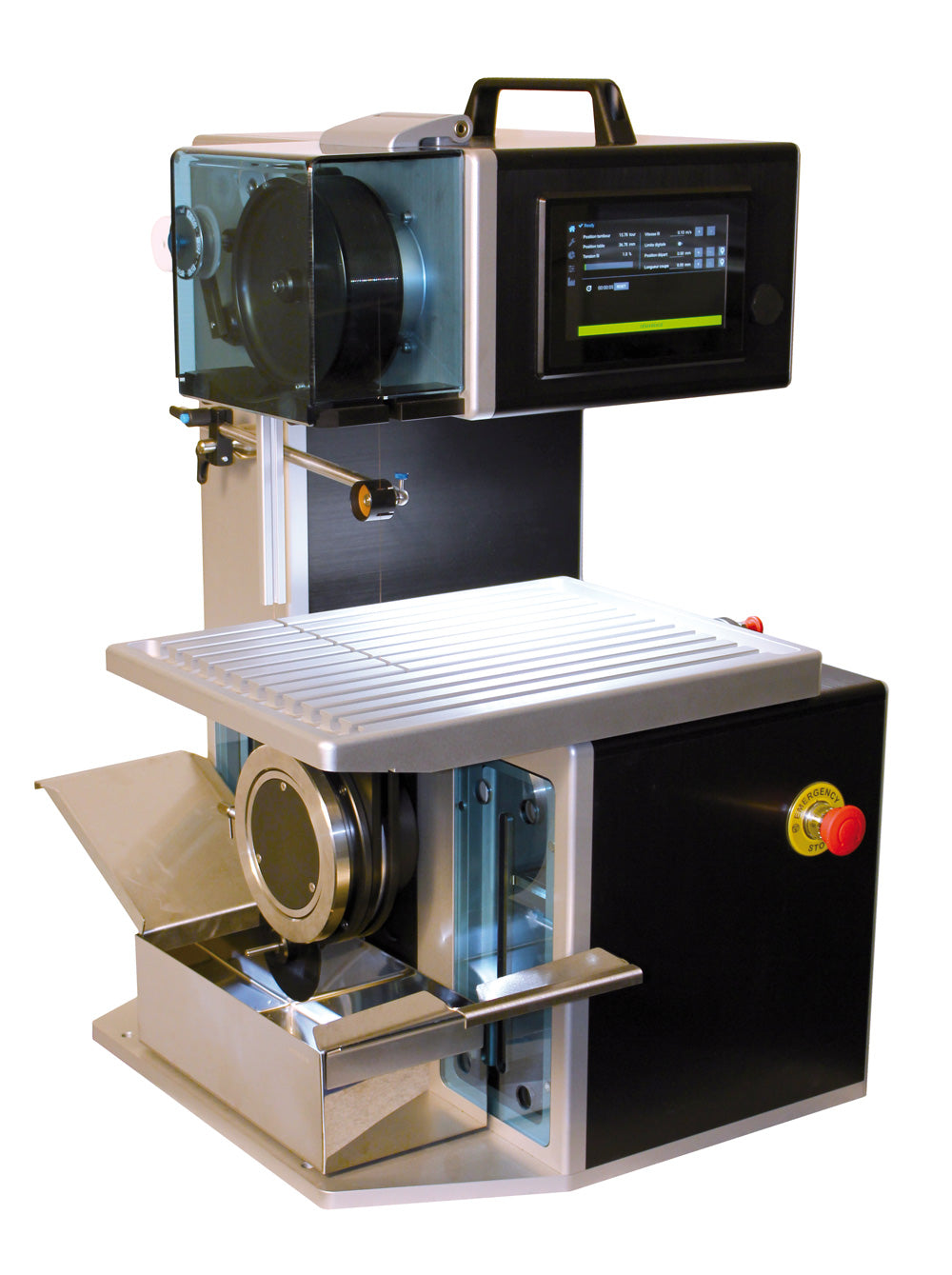

Model 4500 Premium (45.P.000)

Of all Well saws, the 4500 model is, without question, the most universal. Compact and easy to use, it can meet the needs of industrials as well as laboratories.
Very often, it avoids a lengthy and costly polishing job.
The proven and much sought-after Well cutting principle is integrated in the 4500 model, for cutting medium-sized samples (150 mm in height, 150 mm in width).
The length of the sample is virtually unlimited as long as support for the work piece can be provided. To cut small parts, the wire guide rollers can be lowered as close as possible
to the sample. In addition, optional micrometric tables are supplied when cutting accurate slices is needed.
Since the patented diamond embedded wire, of approximately 15 metres in length, travels in both a forward and reversing direction, the sample must be firmly secured to the worktable. The tension on the wire on the “T-slotted” table can be adjusted with the
tensioning mechanisms supplied with the saw.
An electronic protection device is installed at the heart of the machine for a longer lasting wire. If the cutting pressure on the wire is too high, a warning will be displayed on the screen. With this new technology, even very fine wires can be installed.
An electronic ruler is installed underneath the work table. It is used to display the cutting progress on screen. You can also simply modify the parameters in order to use it as a depth-of-cut stop allowing you to adjust the stop of the machine precisely.
With its sleek design, it is easy to maintain and use. With the semi-automatic wire winding system combined with the latest drum technology, replacing the wire is staggeringly simple.
Work table with motorised feed available upon request

THE CUTTING PRINCIPLE OF THE WELL PRECISION DIAMOND WIRE SAW MODEL 4500

The WELL 4500 model is a benchtop saw. This is probably the most versatile saw. Indeed, when creating this model, have been applied the operating principle of the WELL 3000 series diamond wire saws (see Model 3500 for details). Designed as a benchtop model, the WELL 4500 incorporates state-of-the-art technology and offers additional capabilities compared with the WELL 3000 series. It adapts to a wider range of materials and larger sample sizes.

All WELL diamond wire saws use a drum with precision threaded grooves machined into the surface to hold the diamond wire in place. The 15-metre-long diamond wire used by Model 4500 is attached and wound on the drum by a winding device, mounted on a lead screw of the same size as the drum and connected to a motor that rotates in both directions.

The constant force (feed speed) of the wire against the sample is obtained by counterweights. The feed speed is determined by the resistance of the material, which is thus not subjected to mechanical stress. The saw motor housing is guided by precision guides on ball bearings. In addition to the possibility of adjusting the force of the wire, its speed is also adjustable via a continuously variable potentiometer.

Model 4500 cuts samples with the wire travelling vertically.  The sample can be positioned inside or outside the loop thereby allowing for accurate positioning prior to and viewing of the sample during the cutting process.  The sample holder is attached to a horizontal mobile table.  Tensioning of the wire is also accomplished through the use of weights.

It enables you to configure the following data:

• Wire tension (gram)
• Wire speed (metre / second)
• Feed power (gram)

The configuration of these parameters makes it possible to use different diamond wires, including the finest wires (diameters 0.13 to 0.50 mm). The 158 mm diameter drum with 15m of diamond wire offers a large working space with a cutting depth of 150 mm, and enables the adaptation of sample holders to the micrometer table supplied as an option with the machine.

It shares the same design as the 6500 model, but smaller.

Cutting is performed by the movement of the table on the workpiece fixed on it or on a standard or special sample holder.

The saw is equipped with a high-quality colour touchscreen control. Different parameters can be configured. For the convenience of the operator and longer wire life, a constant display on the screen alerts the operator when wire tension is too high. This prevents wire breakage due to excessive feed power.
The depth of the cut can also be easily configured. When the wire reaches this setting, the saw will automatically stop.

Wire replacement is surprisingly easy and quick. All the steps of the process are displayed on the screen. It is an operation that can be carried out by anyone.

This model is built with aluminium plates and high-quality surface treatment. Virtually all the screws that fasten the plates together are invisible. These large, smooth surfaces make for easy cleaning and maintenance.

Various adaptable holding accessories are provided as standard or can be made on request.

THE ADVANTAGES OF THE WELL PRECISION DIAMOND WIRE SAW MODEL 4500

• WELL 4500 saw for demanding users
• Simple operation and easy maintenance for long-term use
• Continuous wire speed from 0 to 2.5 m / s
• Diamond wire Ø 0.13 mm to 0.50 mm 40μ or thinner.
• Max. cutting depth and height of 150 mm.


MODEL 4500 Base Features:

The Model 4500 is delivered ready to use and includes:

• Original WELL Diamond Wire: 0,35mm diameter, 64 µ grit, 120m length
• Cutting liquid concentrate:500ml

Various accessories are available for WELL Model 4500 diamond wire saws. Click here for details.
