Wafer Cleaving / Glass Breaking Pliers

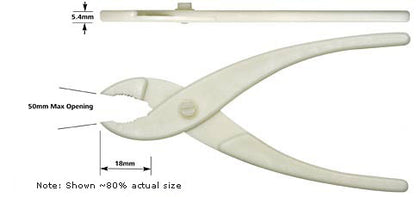

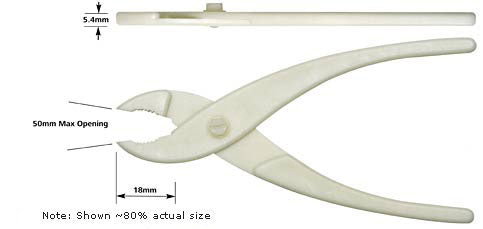

Glass Filled Delrin® Pliers

53020

Glass filled Delrin® and glass filled nylon pliers with serrated or non-serrated jaws. These pliers resist many chemicals and are not electrically conductive. Thermal conductivity is very low.

---

---

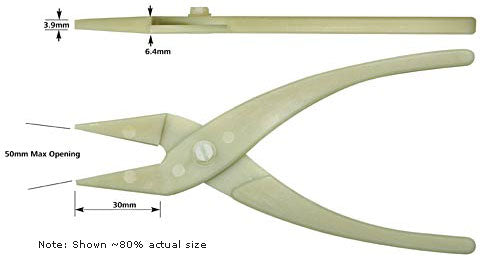

Glass Filled Nylon Pliers

53021

---

---

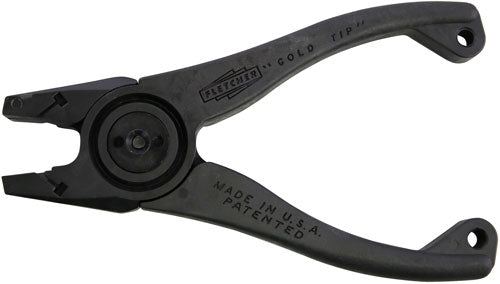

CleanBreak™ Pliers, 6"

54361

54361-T
Replacement Running Jaws
(included)

High quality cleaving pliers, supplied with plastic 3-point cleaving jaws for crystalline substrates, and flat metal jaws for glass and ceramics. These 6" long pliers have a 0.75" jaw opening, suitable for crystals and glass up to 2mm thick. Supplied with a spare set of running jaws.

---

---

CleanBreak™ Pliers, 8"

7298

High quality cleaving pliers, supplied with plastic 3-point cleaving jaws for crystalline substrates, and flat metal jaws for glass and ceramics. These 8" long pliers have a 0.9" jaw opening, suitable for thick substrates and hard materials such as sapphire.

---

---

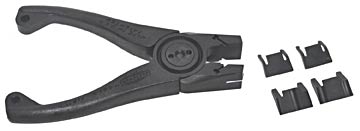

Wafer Cleaving / Glass Breaking Pliers

7295

The Wafer Cleaving / Glass Breaking Pliers are used to make clean breaks of silicon wafers, glass, quartz or thin ceramic tiles. They are also called glass pliers or running pliers.

The pliers come with two sets of jaw inserts:

• One soft set to break out over a the scored line. A white line on the nose of the pliers helps with alignment of the breaking line.
• One flat metal set nipping along a parallel score line.

Made of strong reinforced plastic, 6" overall length.

---

---

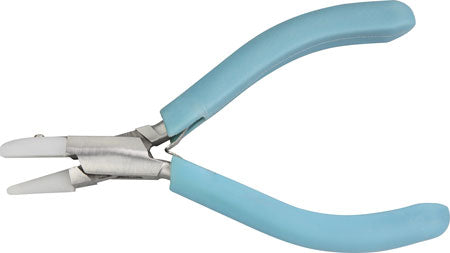

Small Sample Cleaving Pliers

54363

54364

Soft-jaw sample cleaving pliers for small samples are ideal for cleaving scribed samples down to 2-3mm in size. The nylon jaws prevent marring of the sample during cleaving. Replacement tips available.
