Vacuum oils

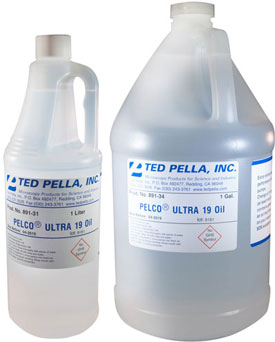

PELCO^® Ultra 19 Vacuum Pump Oil

Premium quality vacuum pump oil for single and dual stage rotary pumps. Extra refined for increased lubrication, enhanced sealing and reduced back streaming. Excellent oil for rotary backing pumps on high vacuum systems, electron microscopes and mass spectrometers. PELCO^® Ultra 19 vacuum pump oil is suitable for our VRP, RVP and VRI Rotary Vane Pumps. Compatible with rotary vane pumps from Edwards, Adixen, Alcatel, Varian, Agilent, Leybold, Oerlikon, Ulvac, Sargent-Welch, Ilmvac and other brands. Fully comparable with Edwards Ultragrade 19 and Inland 19 Ultra rotary pump oil. Great cost savings compared to more expensive brand products.

SDS (93KB PDF)
Typical Properties of PELCO® Ultra 19 Vacuum Pump Oil

---

---

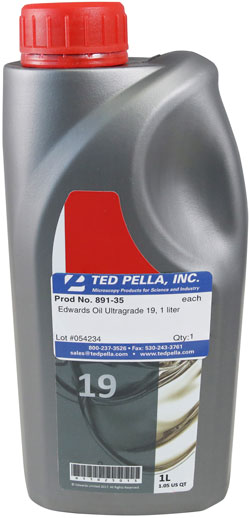

Ultragrade 19 Vacuum Pump Oil

Mineral oil derivative ideally suited for mechanical rotary vacuum pumps. Light end fractions are removed through molecular distillation resulting in lower vapor pressures and reduced backstreaming compared to undistilled refinery products. Offers reduced maintenance costs, longer fluid life and cooler running.

Suitable for single and dual rotary vane pumps from VRL, Edwards, Alcatel, Adixen, Varian, Agilent, Leybold, Oerlikon, Sargent-Welch, Ulvac, Ilmvac, and other brands.

SDS (66KB PDF)
Typical Properties of Ultragrade 19 Oil

---

---



Pfeiffer P3 Vacuum Pump Oil

Clear, monograde oil that has the correct viscosity for Pfeiffer Rotary vacuum pumps, excellent sealing and lubrication properties, low vapor pressure and reduced back streaming. Used also for #7010, 7010-220 Pfeiffer DUO 3.0 Rotary Pumps.

SDS (98KB PDF)
Typical Properties of Pfeiffer P3 Vacuum Pump Oil

---

---

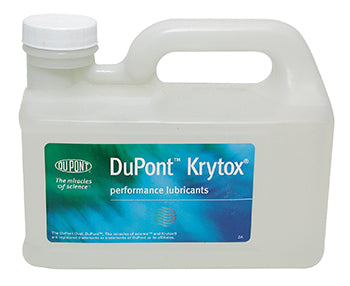

Krytox® 1525 Vacuum Pumping Fluid

Krytox® Perfluorinated Polyether (PFPE) inert vacuum pump fluid for corrosive and oxygen applications. Chemically inert pumping fluid with excellent lubrication properties. Used in chemical resistant pumps as used in plasma cleaning systems.

Typical Properties of Krytox® 1525 Vacuum Pumping Fluid

---

---

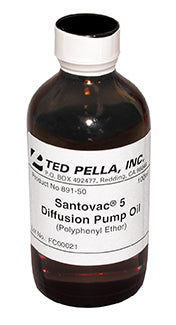

Santovac® 5 Diffusion Pump Oil

Polyphenyl ether vacuum pump fluid, excellent for TEM, SEM

Operates efficiently, economically and safely in diffusion pumps in properly designed systems to produce ultra-high vacuums in the 10-10 torr range. A wide liquid range, low vapor pressure and balance of properties make it an ideal working fluid in diffusion pumps.

Extremely low vapor pressure results in low ultimate pressures. The vapor pressure of Santovac® 5 at 25°C is 4 x 10-10 as determined by extrapolation from higher temperature data. Together with low backstreaming characteristics, 10-10 torr vacuums can be obtained in well designed systems without the use of nitrogen traps.

Low backstreaming. Santovac® 5 pump fluid can be used for electronic component manufacture, laboratory, analytical, instrument and research applications.

Santovac® 5 offers unusually high thermal and oxidation stability, with isoteniscope tests showing thermal stability at 465°C (870°F). May discolor with use but this does not affect its operation. Oxidation and corrosion tests, and field experience have shown that Santovac® 5 has little tendency to increase in viscosity during use.

SDS (90KB PDF)
Typical Properties of Santovac® 5 Diffusion Pump Oil

---

---

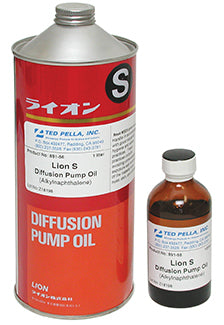

Lion S Diffusion Pump Oil

Lion S diffusion pump oil is a high quality alkyl naphthalene based diffusion pump oil, especially developed for applications such as electron microscopes, mass spectrometers and small vacuum systems. Recommended for TEMs and SEMs made by Hitachi, JEOL and ISI/ABT/Topcon equipped with a diffusion pump.

No need for lower grade substitutes, this is the original LION S diffusion pump oil, manufactured by the Lion Corporation, Japan. It has been and is still used in diffusion pumps used in instruments manufactured in Japan. Lion S diffusion oil has a high resistance against oxidation and works well with small and medium size diffusion pumps.

SDS (PDF 2410KB)
Technical Notes (137KB PDF)
Typical Properties of Lion S Diffusion Pump Oil
