Vacuum Hose, Hose Clamps & NW/KF Hose Adapters

Vacuum Hose, Hose Clamps & NW/KF Hose Adapters



NW/KF Hose Flanges with Wire Reinforced PVC Vacuum Hose

92422-XXXX

Low cost alternative for flexible stainless vacuum hoses.

Wire reinforced PVC tubing with 304 stainless steel NW/KF flanges on each end and secured with stainless steel hose clamps.

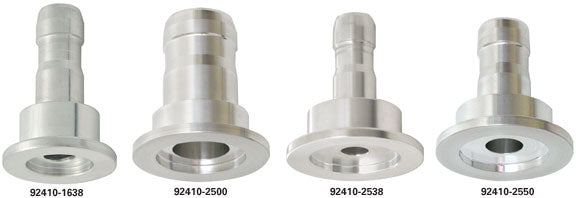

NW/KF Hose Adapters, Aluminum

Machined from solid bar, no welds

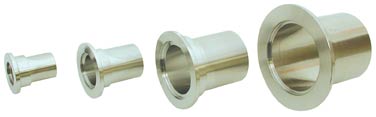

NW/KF Hose Adapter, 304 Stainless Steel

Machined from solid bar, no welds.

Wire Reinforced Thick Wall PVC Vacuum Hose

Use with hose adapters and hose clamps to make custom vacuum hoses. Can be ordered per ft. with minimum length of 3 ft. and maximum length of 50 ft. Wire is embedded in PVC hose.

Permits full vacuum capabilities (29.9 in./Hg.) for all sizes without hose collapse. Constructed of corrosion-resistant PVC, can be used to transport various chemicals in areas with tight turns and sharp bends. Its bend radius is approximately four times the I.D. Can be used at Temperatures from +10° to +140°F (-12° to +60°C).

For ordering: Minimum length 3 ft. - Maximum length 50 ft.

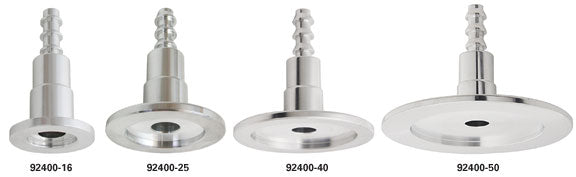

NW/KF Multiple Hose Adapter, Aluminum

3 step aluminum adapter for 1/4", 1/2" and 5/8" hoses

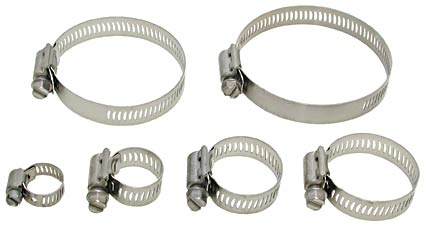

Hose Clamps for Vacuum Hose, Stainless Steel

These clamps are compatible with the wire reinforced, thick wall PVC vacuum hose we offer. They are quick, economical and reusable. Bands are 0.023" thick x 5/16" wide (1/4") and 1/2" wide (all other sizes) with temperature range of –50° to +250° F. Not recommended for use with silicone hose. Clamps tighten with a wrench, slotted screwdriver or hex nutdriver. Made from type 301 stainless steel with stainless steel screw.

1/2" and 3/4" ID Vacuum Hose

Heavy wall, versatile and resilient natural, pure gum rubber tubes. These cost effective vacuum hoses have a good oxidation resistance, are vibration resistant and have excellent rebound characteristics. Durometer 45+-5. Meets or exceeds standard ZZ-T831C, minimum tensile strength 3000PSI. Use #92426-50 1-1/2" stainless steel vacuum hose clamp on either 1/2" or 3/4" ID rubber hose to secure connection.

1/4" ID Silicone Vacuum Hose

Thick walled silicone vacuum hose with 1/4" (6.35mm) inside diameter and 1/2" (12.7mm) outside diameter. Sturdy, yet flexible material with wall thickness of 1/8" (3.2mm), will not collapse under vacuum. Can be used with NW/KF Multiple Hose Adapter to KF-16. Sold in lengths of 3 and 9 ft. Use #92426-25 clamp or this vacuum hose.

Documentation

SDS

Technical Notes

View full details
Variant Variant total Quantity Price Variant total
NW/KF 16 with PVC Hose, A=20", B=3/4" (Unit: each)92422-1620
NW/KF 16 with PVC Hose, A=20", B=3/4" (Unit: each)92422-1620
644,70 lei/ea		 0,00 lei
644,70 lei/ea 0,00 lei
NW/KF 16 with PVC Hose, A=40", B=3/4" (Unit: each)92422-1640
NW/KF 16 with PVC Hose, A=40", B=3/4" (Unit: each)92422-1640
755,00 lei/ea		 0,00 lei
755,00 lei/ea 0,00 lei
NW/KF 25 with PVC Hose, A=20", B=1" (Unit: each)92422-2520
NW/KF 25 with PVC Hose, A=20", B=1" (Unit: each)92422-2520
717,50 lei/ea		 0,00 lei
717,50 lei/ea 0,00 lei
NW/KF 25 with PVC Hose, A=40", B=1" (Unit: each)92422-2540
NW/KF 25 with PVC Hose, A=40", B=1" (Unit: each)92422-2540
874,80 lei/ea		 0,00 lei
874,80 lei/ea 0,00 lei
NW/KF 40 with PVC Hose, A=20", B=1-1/2" (Unit: each)92422-4020
NW/KF 40 with PVC Hose, A=20", B=1-1/2" (Unit: each)92422-4020
874,80 lei/ea		 0,00 lei
874,80 lei/ea 0,00 lei
NW/KF 40 with PVC Hose, A=40", B=1-1/2" (Unit: each)92422-4040
NW/KF 40 with PVC Hose, A=40", B=1-1/2" (Unit: each)92422-4040
1.150,80 lei/ea		 0,00 lei
1.150,80 lei/ea 0,00 lei
NW/KF 50 with PVC Hose, A=20", B=2" (Unit: each)92422-5020
NW/KF 50 with PVC Hose, A=20", B=2" (Unit: each)92422-5020
1.196,50 lei/ea		 0,00 lei
1.196,50 lei/ea 0,00 lei
NW/KF 50 with PVC Hose, A=40", B=2" (Unit: each)92422-5040
NW/KF 50 with PVC Hose, A=40", B=2" (Unit: each)92422-5040
1.472,50 lei/ea		 0,00 lei
1.472,50 lei/ea 0,00 lei
NW/KF 16 - 3/8" Hose Adapter, Aluminum A=12mm, B=44mm (Unit: each)92410-1638
NW/KF 16 - 3/8" Hose Adapter, Aluminum A=12mm, B=44mm (Unit: each)92410-1638
123,10 lei/ea		 0,00 lei
123,10 lei/ea 0,00 lei
NW/KF 16 - 1/2" or 5/8" Hose Adapter, Aluminum A=16mm, B=42mm (Unit: each)92410-1650
NW/KF 16 - 1/2" or 5/8" Hose Adapter, Aluminum A=16mm, B=42mm (Unit: each)92410-1650
59,10 lei/ea		 0,00 lei
59,10 lei/ea 0,00 lei
NW/KF 16 - 5/8" or 3/4" Hose Adapter, Aluminum A=19mm, B=42mm (Unit: each)92410-1675
NW/KF 16 - 5/8" or 3/4" Hose Adapter, Aluminum A=19mm, B=42mm (Unit: each)92410-1675
59,10 lei/ea		 0,00 lei
59,10 lei/ea 0,00 lei
NW/KF 25 - 3/8" Hose Adapter, Aluminum A=12mm, B=44mm (Unit: each)92410-2538
NW/KF 25 - 3/8" Hose Adapter, Aluminum A=12mm, B=44mm (Unit: each)92410-2538
102,20 lei/ea		 0,00 lei
102,20 lei/ea 0,00 lei
NW/KF 25 - 1/2" or 5/8" Hose Adapter, Aluminum A=16mm, B=42mm (Unit: each)92410-2550
NW/KF 25 - 1/2" or 5/8" Hose Adapter, Aluminum A=16mm, B=42mm (Unit: each)92410-2550
82,80 lei/ea		 0,00 lei
82,80 lei/ea 0,00 lei
NW/KF 25 - 5/8" or 3/4" Hose Adapter, Aluminum A=19mm, B=42mm (Unit: each)92410-2575
NW/KF 25 - 5/8" or 3/4" Hose Adapter, Aluminum A=19mm, B=42mm (Unit: each)92410-2575
92,80 lei/ea		 0,00 lei
92,80 lei/ea 0,00 lei
NW/KF 25 - 3/4" or 7/8" Hose Adapter, Aluminum A=22.5mm, B=44mm (Unit: each)92410-2500
NW/KF 25 - 3/4" or 7/8" Hose Adapter, Aluminum A=22.5mm, B=44mm (Unit: each)92410-2500
91,20 lei/ea		 0,00 lei
91,20 lei/ea 0,00 lei
NW/KF 40 - 1-1/2" or 1-5/8" Hose Adapter, Aluminum A=41.5mm, B=55mm (Unit: each)92410-40
NW/KF 40 - 1-1/2" or 1-5/8" Hose Adapter, Aluminum A=41.5mm, B=55mm (Unit: each)92410-40
88,40 lei/ea		 0,00 lei
88,40 lei/ea 0,00 lei
NW/KF 50 - 1-1/2" or 1-5/8" Hose Adapter, Aluminum A=41.5mm, B=55mm (Unit: each)92410-50
NW/KF 50 - 1-1/2" or 1-5/8" Hose Adapter, Aluminum A=41.5mm, B=55mm (Unit: each)92410-50
102,20 lei/ea		 0,00 lei
102,20 lei/ea 0,00 lei
NW/KF 16 - 3/4" Hose Adapter, 304SS A=18.3mm, B=32mm, C=20 (Unit: each)92420-16
NW/KF 16 - 3/4" Hose Adapter, 304SS A=18.3mm, B=32mm, C=20 (Unit: each)92420-16
116,00 lei/ea		 0,00 lei
116,00 lei/ea 0,00 lei
NW/KF 25 - 1" Hose Adapter, 304SS A=25.4mm, B=38mm, C=26 (Unit: each)92420-25
NW/KF 25 - 1" Hose Adapter, 304SS A=25.4mm, B=38mm, C=26 (Unit: each)92420-25
129,70 lei/ea		 0,00 lei
129,70 lei/ea 0,00 lei
NW/KF 40 - 1-1/2" Hose Adapter, 304SS A=38.1mm, B=50mm, C=38 (Unit: each)92420-40
NW/KF 40 - 1-1/2" Hose Adapter, 304SS A=38.1mm, B=50mm, C=38 (Unit: each)92420-40
273,90 lei/ea		 0,00 lei
273,90 lei/ea 0,00 lei
NW/KF 50 - 2" Hose Adapter, 304SS A=50.8mm, B=55mm, C=40 (Unit: each)92420-50
NW/KF 50 - 2" Hose Adapter, 304SS A=50.8mm, B=55mm, C=40 (Unit: each)92420-50
234,90 lei/ea		 0,00 lei
234,90 lei/ea 0,00 lei
1/4" ID; 0.447" OD, Wire Reinforced PVC Hose (Unit: ft)92424-25
1/4" ID; 0.447" OD, Wire Reinforced PVC Hose (Unit: ft)92424-25
16,60 lei/ea		 0,00 lei
16,60 lei/ea 0,00 lei
3/8" ID; 0.600" OD, Wire Reinforced PVC Hose (Unit: ft)92424-38
3/8" ID; 0.600" OD, Wire Reinforced PVC Hose (Unit: ft)92424-38
27,60 lei/ea		 0,00 lei
27,60 lei/ea 0,00 lei
1/2" ID; 0.736" OD, Wire Reinforced PVC Hose (Unit: ft)92424-50
1/2" ID; 0.736" OD, Wire Reinforced PVC Hose (Unit: ft)92424-50
32,80 lei/ea		 0,00 lei
32,80 lei/ea 0,00 lei
3/4" ID;1.028" OD, Wire Reinforced PVC Hose (Unit: ft)92424-75
3/4" ID;1.028" OD, Wire Reinforced PVC Hose (Unit: ft)92424-75
33,20 lei/ea		 0,00 lei
33,20 lei/ea 0,00 lei
1" ID; 1.290" OD, Wire Reinforced PVC Hose (Unit: ft)92424-100
1" ID; 1.290" OD, Wire Reinforced PVC Hose (Unit: ft)92424-100
41,50 lei/ea		 0,00 lei
41,50 lei/ea 0,00 lei
1-1/2" ID; 1.854" OD, Wire Reinforced PVC Hose (Unit: ft)92424-150
1-1/2" ID; 1.854" OD, Wire Reinforced PVC Hose (Unit: ft)92424-150
66,30 lei/ea		 0,00 lei
66,30 lei/ea 0,00 lei
2" ID; 2.394" OD, Wire Reinforced PVC Hose (Unit: ft)92424-200
2" ID; 2.394" OD, Wire Reinforced PVC Hose (Unit: ft)92424-200
124,20 lei/ea		 0,00 lei
124,20 lei/ea 0,00 lei
NW/KF 16 Multiple Hose Adapter, 5mm ID, aluminum (Unit: each)92400-16
NW/KF 16 Multiple Hose Adapter, 5mm ID, aluminum (Unit: each)92400-16
220,80 lei/ea		 0,00 lei
220,80 lei/ea 0,00 lei
NW/KF 25 Multiple Hose Adapter, 5mm ID, aluminum (Unit: each)92400-25
NW/KF 25 Multiple Hose Adapter, 5mm ID, aluminum (Unit: each)92400-25
370,90 lei/ea		 0,00 lei
370,90 lei/ea 0,00 lei
NW/KF 40 Multiple Hose Adapter, 5mm ID, aluminum (Unit: each)92400-40
NW/KF 40 Multiple Hose Adapter, 5mm ID, aluminum (Unit: each)92400-40
432,80 lei/ea		 0,00 lei
432,80 lei/ea 0,00 lei
NW/KF 50 Multiple Hose Adapter, 5mm ID, aluminum (Unit: each)92400-50
NW/KF 50 Multiple Hose Adapter, 5mm ID, aluminum (Unit: each)92400-50
544,20 lei/ea		 0,00 lei
544,20 lei/ea 0,00 lei
1/4" Vacuum Hose Clamp, stainless steel (Unit: pkg/2)92426-25
1/4" Vacuum Hose Clamp, stainless steel (Unit: pkg/2)92426-25
26,50 lei/ea		 0,00 lei
26,50 lei/ea 0,00 lei
3/8" Vacuum Hose Clamp, stainless steel (Unit: pkg/2)92426-38
3/8" Vacuum Hose Clamp, stainless steel (Unit: pkg/2)92426-38
32,40 lei/ea		 0,00 lei
32,40 lei/ea 0,00 lei
1/2" Vacuum Hose Clamp, stainless steel (Unit: pkg/2)92426-50
1/2" Vacuum Hose Clamp, stainless steel (Unit: pkg/2)92426-50
36,00 lei/ea		 0,00 lei
36,00 lei/ea 0,00 lei
3/4" Vacuum Hose Clamp, stainless steel (Unit: pkg/2)92426-75
3/4" Vacuum Hose Clamp, stainless steel (Unit: pkg/2)92426-75
33,20 lei/ea		 0,00 lei
33,20 lei/ea 0,00 lei
1" Vacuum Hose Clamp, stainless steel (Unit: pkg/2)92426-100
1" Vacuum Hose Clamp, stainless steel (Unit: pkg/2)92426-100
36,80 lei/ea		 0,00 lei
36,80 lei/ea 0,00 lei
1-1/2" Vacuum Hose Clamp, stainless steel (Unit: pkg/2)92426-150
1-1/2" Vacuum Hose Clamp, stainless steel (Unit: pkg/2)92426-150
41,50 lei/ea		 0,00 lei
41,50 lei/ea 0,00 lei
2" Vacuum Hose Clamp, stainless steel (Unit: pkg/2)92426-200
2" Vacuum Hose Clamp, stainless steel (Unit: pkg/2)92426-200
44,20 lei/ea		 0,00 lei
44,20 lei/ea 0,00 lei
1/2" (12.7) ID, Rubber Vacuum Hose (Unit: 1 foot)894-5
1/2" (12.7) ID, Rubber Vacuum Hose (Unit: 1 foot)894-5
85,60 lei/ea		 0,00 lei
85,60 lei/ea 0,00 lei
3/4" (19mm) ID, Rubber Vacuum Hose (Unit: 1 foot)894-7
3/4" (19mm) ID, Rubber Vacuum Hose (Unit: 1 foot)894-7
110,40 lei/ea		 0,00 lei
110,40 lei/ea 0,00 lei
1/4" ID, Silicone Vacuum Hose (Unit: 3 FOOT)92490-253
1/4" ID, Silicone Vacuum Hose (Unit: 3 FOOT)92490-253
120,10 lei/ea		 0,00 lei
120,10 lei/ea 0,00 lei
1/4" ID, Silicone Vacuum Hose (Unit: 9 FOOT)92490-256
1/4" ID, Silicone Vacuum Hose (Unit: 9 FOOT)92490-256
358,80 lei/ea		 0,00 lei
358,80 lei/ea 0,00 lei
