Universal 45 SEM-EDS/WDS/EMPA Universal Element Standard

Universal 45 SEM-EDS/WDS/EMPA Universal Element Standard

WHEN NOT IN USE, THE STANDARD SHOULD BE STORED UNDER VACUUM OR IN A SUITABLE DESICCATOR IN A TEMPURATURE CONTROLLED ENVIRONMENT

45 material samples, covering 51 elements from the periodic table.
A 150μm Molybdenum Faraday Cup is also included for measuring the stability of the electron beam.

Supplied in a specially designed storage/transportation case that contains:
• The standard—protected by an additional specially designed case
• A full electronic booklet on a USB, containing:

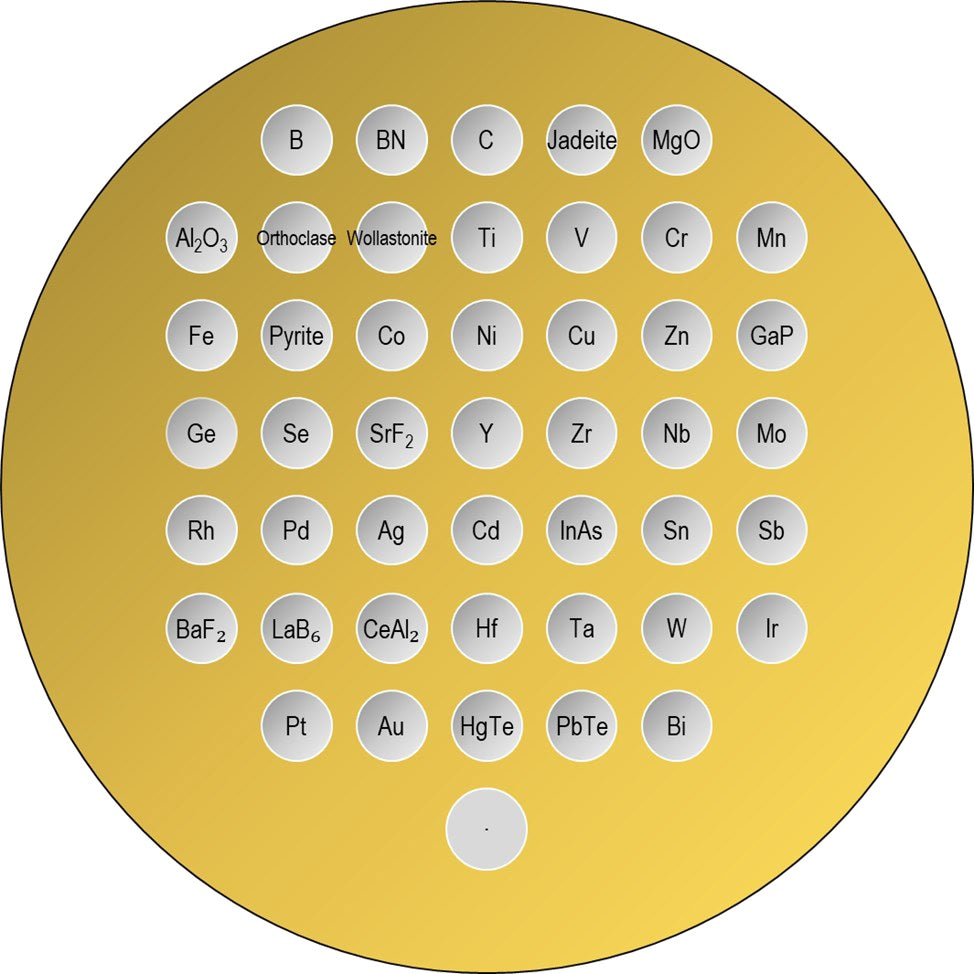

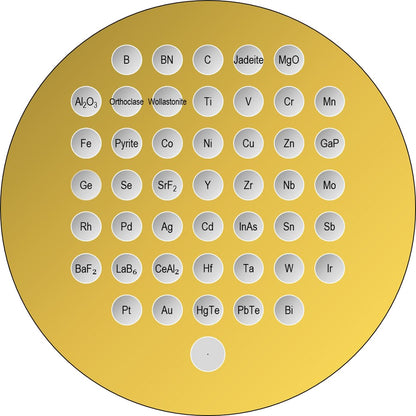

• The standard plan/layout
• Certificates of analysis or conformance for each material
• Details on storage and care of your standards
• Certificate of final inspection & recommended re-polishing date
• A replaceable silica gel capsule for protection whilst in transit
• A credit card sized quick reference guide
A copy of the electronic booklet is also accessible from our cloud storage.

Documentation

SDS

Technical Notes

View full details
Variant Variant total Quantity Price Variant total
45 material samples on 32mm Ø x 5mm Brass mount, polished and Carbon coated, including a 150μm Molybdenum Faraday Cup (Unit: each)UNI45-32
45 material samples on 32mm Ø x 5mm Brass mount, polished and Carbon coated, including a 150μm Molybdenum Faraday Cup (Unit: each)UNI45-32
22.438,20 lei/ea		 0,00 lei
22.438,20 lei/ea 0,00 lei
45 material samples on 25mm Ø x 5mm Brass mount, polished and Carbon coated, including a 150μm Molybdenum Faraday Cup (Unit: each)UNI45-25
45 material samples on 25mm Ø x 5mm Brass mount, polished and Carbon coated, including a 150μm Molybdenum Faraday Cup (Unit: each)UNI45-25
22.438,20 lei/ea		 0,00 lei
22.438,20 lei/ea 0,00 lei
