Tweezer-Vac™ Vacuum Pick-Up Tool

Selecting a Vacuum Pick-Up System

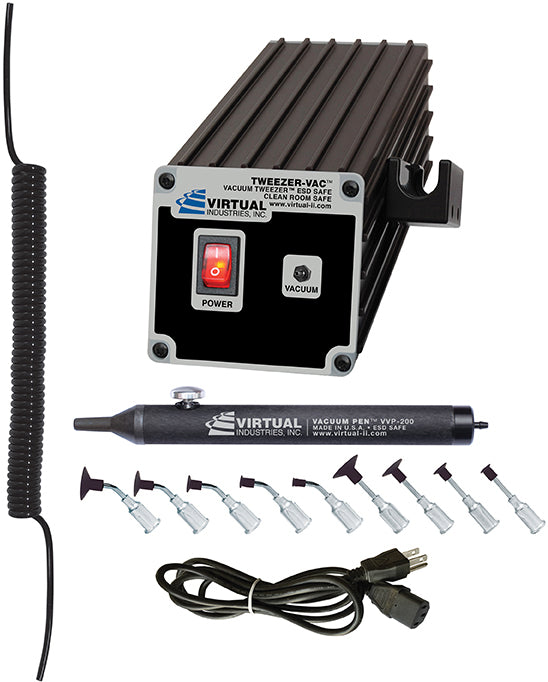

ESD Safe Kit with Buna-N Static Dissipative Non-Marking Vacuum Cups with Probes

#522 and included accessories

The Tweezer-Vac™ Vacuum Pick-Up Tool is an ESD and Cleanroom 100 safe vacuum tweezer system. With vacuum of up to 10" Hg at sea level, this system is ideal for handling small, flat and smooth items such as substrates, slides, semiconductors and more. The unit comes with all the items needed for use including hose, vacuum pen and nine vacuum tips. Dimensions are 7.25 x 2.5 x 3" (185 x 64 x 76mm).

• Supplied with nine probes and Buna-N cups (specified below)
• Vacuum up to 10" Hg at sea level
• ESD Safe
• Class 100 Cleanroom Safe
• CE-marked
• Push-button vacuum pen

Contains five 1/2" (12.70mm) long bent probes with 3/32" (2.38mm), 1/8" (3.18mm), 3/16" (4.76mm), 1/4" (6.35mm), 3/8" (9.53mm), and four 1/2" (12.70mm) long straight probes with 1/8" (3.18mm), 1/4" (6.35mm), 3/8" (9.53mm), 1/2" (12.70mm) diameter static dissipative Buna-N Cups.

Compatible with the Metal Tips for the PELCO^® Vacuum Pick-up System and the Probes/Cups shown on this page.

PELCO® Technical Notes, Tweezer-Vac™ Vacuum Pick-Up Tool (731KB PDF)

go to Probes and Cups
