Tronex Tip Cutters for Circuit Boards



great for work with circuit boards

Tip Cutters are cutting tools with long, narrow jaws that have small, exceptionally sharp edges for cutting at the very tip. All Tronex® Tip Cutters have long jaws for extended reach, feature RAZOR FLUSH® cutting edges and a set screw to prevent damage to the blades. Some Tronex® Tip Cutters have lower profiles or have ultra fine cutting tips.
Five options below, available with short or long handles:

1. Sub-Miniature Tip Cutters
2. Miniature Tip Cutters
3. Fine Tip Cutters
4. Small Tip Cutters
5. Rugged Tip Cutters

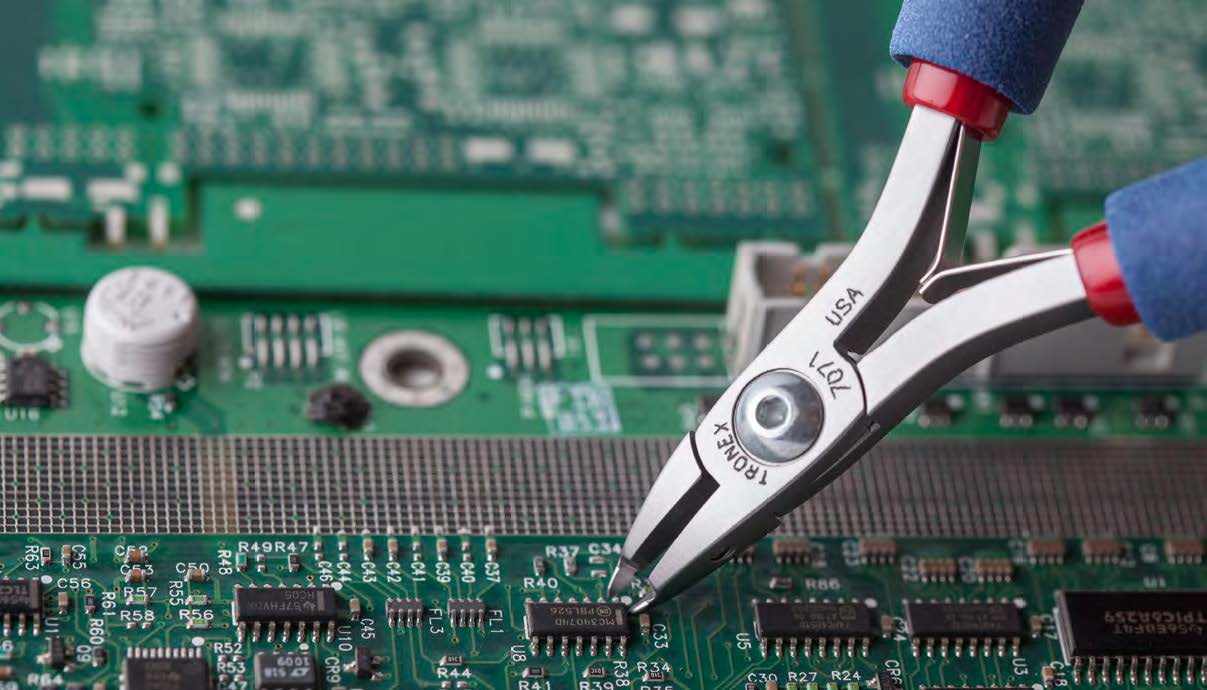

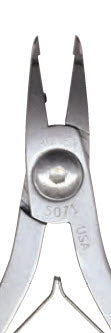

Sub-Miniature Tip Cutters

Extraordinarily small, fine cutting edges & fine tip. Often used under a microscope. Removes individual leads from fine pitch components. RAZOR FLUSH® cutting edges.

Short Handle: 4.7" (120mm)

Long Ergonomic Handle: 6.1" (154mm)

Prod #	Description	Diameter of Soft Copper Wire
7264	Sub-Miniature Tip Cutters, Short Handle, RAZOR FLUSH®	0.05 to 0.40 mm	0.002 to 0.016 in
7049	Sub-Miniature Tip Cutters, Long Handle, RAZOR FLUSH®	0.05 to 0.40 mm	0.002 to 0.016 in



---

---



Miniature Tip High Relief Cutters

Tip cutter with deep relief for an exceptionally low profile. Short sturdy jaw. Slightly rounded tips.

Short Handle: 4.8" (121mm)

Long Ergonomic Handle: 5.8" (146mm)

Prod #	Description	Diameter of Soft Copper Wire
5049	Miniature Tip High Relief Cutters, Short Handle, RAZOR FLUSH®	0.01 to 0.65 mm	0.004 to 0.025 in
7266	Miniature Tip High Relief Cutters, Long Handle, RAZOR FLUSH®	0.01 to 0.65 mm	0.004 to 0.025 in



---

---



Fine Tip Cutters

Ultra fine tips for working with extremely fine electronics applications. Pointed tips rather than rounded tips.

Short Handle: 4.8" (123mm)

Prod #	Description	Diameter of Soft Copper Wire
5048	Fine Tip Cutters, Short Handle, RAZOR FLUSH®	0.10 to 0.65 mm	0.004 to 0.025 in



---

---

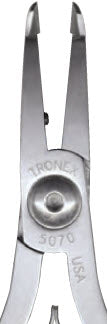

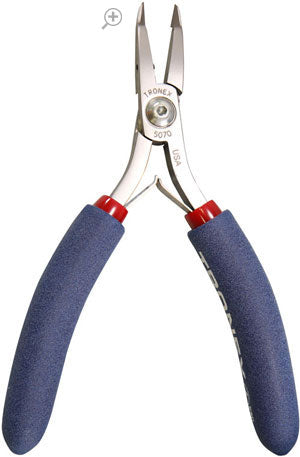

Small Tip Cutters

Most popular tip cutter. Jaw is twice as long as jaw of standard cutters. Jaw is slim with a low, relieved profile. RAZOR FLUSH® cutting edges.

Short Handle: 5.1" (129mm)

Long Ergonomic Handle: 6.1" (154mm)

Prod #	Description	Diameter of Soft Copper Wire
7260	Small Tip Cutters, Short Handle, RAZOR FLUSH®	0.10 to 0.80 mm	0.004 to 0.031 in
7164	Small Tip Cutters, Long Handle, RAZOR FLUSH®	0.10 to 0.80 mm	0.004 to 0.031 in



---

---



Rugged, Long Jawed Tip Cutters

Same as the 70 model except wider jaw and wider tip for extra durability and greater cutting capacity. RAZOR FLUSH® cutting edges.

Short Handle: 5.1" (129mm)

Long Ergonomic Handle: 6.1" (154mm)

Prod #	Description	Diameter of Soft Copper Wire
5088	Rugged, Long Jaw Tip Cutters, Short Handle, RAZOR FLUSH®	0.13 to 1.20 mm	0.005 to 0.039 in
7088	Rugged, Long Jaw Tip Cutters, Long Handle, RAZOR FLUSH®	0.13 to 1.20 mm	0.005 to 0.039 in
