Tronex Tapered Head Cutters



Tapered Head Cutters provide a more compact design for increased operator access, a wide cutting range and long tool life. The Tapered Relief head features tapering on both sides and head relief for maximum access into difficult areas. Cutting range and tool life may be slightly reduced.

Three options below, available with short or long handles; with relief profile head or standard; Semi-Flush, Flush or RAZOR FLUSH®:

1. Mini Tapered Cutters
2. Medium Tapered Cutters
3. Large Tapered Cutters

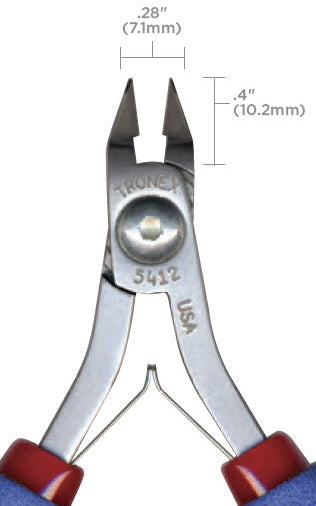

Mini Tapered Cutters Standard Profile

5412-0, 5413-0

Used only for exceptionally fine cutting work when access to the cutting area is difficult.

Short Handle: 4.6" (117mm)

Long Ergonomic Handle: 5.6" (142mm)

Prod #	Description	Diameter of Soft Copper Wire
Mini Tapered Head Cutters, Short Handle, Standard Profile
5412-0	Flush	0.15 to 1.10 mm	0.006 to 0.043 in
5413-0	RAZOR FLUSH®	0.10 to 1.10 mm	0.004 to 0.039 in



Prod #	Description	Diameter of Soft Copper Wire
Mini Tapered Head Cutters, Long Handle, Standard Profile
7411-0	Semi-Flush	0.20 to 1.10 mm	0.008 to 0.043 in
7412	Flush	0.10 to 1.00 mm	0.004 to 0.039 in
7413	RAZOR FLUSH®	0.10 to 0.70 mm	0.004 to 0.028 in



---

---



Mini Tapered Cutters Relief Profile

Used only for exceptionally fine cutting work when access to the cutting area is difficult.

Short Handle: 4.6" (117mm)

Long Ergonomic Handle: 5.6" (142mm)

Prod #	Description	Diameter of Soft Copper Wire
Mini Tapered Head Cutters, Short Handle, Relief Profile
5421-0	Semi-Flush	0.20 to 1.10 mm	0.008 to 0.043 in
5422	Flush	0.10 to 1.00 mm	0.004 to 0.039 in
5423	RAZOR FLUSH®	0.10 to 0.07 mm	0.004 to 0.028 in



Prod #	Description	Diameter of Soft Copper Wire
Mini Tapered Head Cutters, Long Handle, Relief Profile
7421	Semi-Flush	0.20 to 1.10 mm	0.008 to 0.043 in
7422	Flush	0.10 to 1.00 mm	0.004 to 0.039 in
7423	RAZOR FLUSH®	0.10 to 0.70 mm	0.004 to 0.028 in



---

---

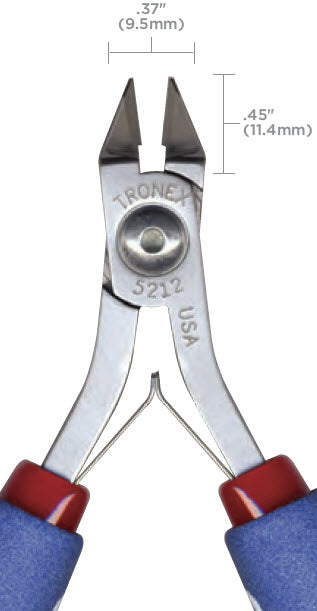

Medium Tapered Cutters Standard Profile

Very popular cutter model providing cutting capacity and outstanding access. Pointed head allows for increased cutting access yet has sufficient strength to avoid tip breakage when used within its capacity.

Short Handle: 4.6" (117mm)

Long Ergonomic Handle: 5.6" (142mm)

Prod #	Description	Diameter of Soft Copper Wire
Medium Tapered Head Cutters, Short Handle, Standard Profile
7118	Semi-Flush	0.20 to 1.25 mm	0.008 to 0.049 in
7154	Flush	0.15 to 1.25 mm	0.006 to 0.049 in
7188	RAZOR FLUSH®	0.10 to 1.00 mm	0.004 to 0.039 in



Prod #	Description	Diameter of Soft Copper Wire
Medium Tapered Head Cutters, Long Handle, Standard Profile
7138	Semi-Flush	0.20 to 1.25 mm	0.008 to 0.049 in
7212	Flush	0.15 to 1.25 mm	0.006 to 0.049 in
7214	RAZOR FLUSH®	0.10 to 1.00 mm	0.004 to 0.039 in



---

---



Medium Tapered Cutters Relief Profile

Very popular cutter model providing cutting capacity and outstanding access. Pointed head allows for increased cutting access yet has sufficient strength to avoid tip breakage when used within its capacity.

Short Handle: 4.6" (117mm)

Long Ergonomic Handle: 5.6" (142mm)

Prod #	Description	Diameter of Soft Copper Wire
Medium Tapered Head Cutters, Short Handle, Relief Profile
5221-0	Semi-Flush	0.20 to 1.10 mm	0.008 to 0.043 in
5222-0	Flush	0.15 to 1.00 mm	0.006 to 0.039 in
5223-0	RAZOR FLUSH®	0.10 to 0.90 mm	0.004 to 0.035 in



Prod #	Description	Diameter of Soft Copper Wire
Medium Tapered Head Cutters, Long Handle, Relief Profile
7140	Semi-Flush	0.20 to 1.10 mm	0.008 to 0.043 in
7222	Flush	0.15 to 1.00 mm	0.006 to 0.039 in
7223	RAZOR FLUSH®	0.10 to 0.09 mm	0.004 to 0.035 in



---

---

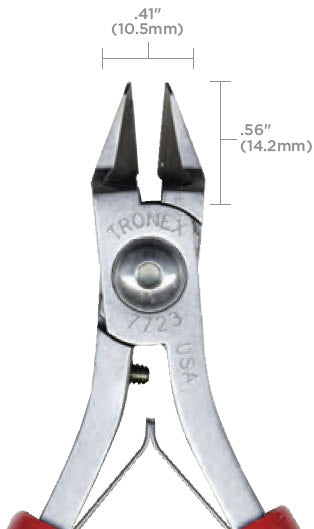

Large Tapered Cutters Standard Profile

Extra long jaw for possibly cutting multiple leads.

Short Handle: 4.7" (120mm)

Long Ergonomic Handle: 5.7" (145mm)

Prod #	Description	Diameter of Soft Copper Wire
Large Tapered Head Cutters, Short Handle, Standard Profile
5711	Semi-Flush	0.20 to 1.30 mm	0.008 to 0.051 in
5712	Flush	0.15 to 1.30 mm	0.006 to 0.051 in
5713	RAZOR FLUSH®	0.10 to 1.20 mm	0.004 to 0.047 in



Prod #	Description	Diameter of Soft Copper Wire
Large Tapered Head Cutters, Long Handle, Standard Profile
7711	Semi-Flush	0.20 to 1.30 mm	0.008 to 0.051 in
7712	Flush	0.15 to 1.30 mm	0.006 to 0.051 in
7713	RAZOR FLUSH®	0.10 to 1.20 mm	0.004 to 0.047 in



---

---



Large Tapered Cutters Relief Profile

Extra long jaw for possibly cutting multiple leads.

Short Handle: 4.7" (120mm)

Long Ergonomic Handle: 5.7" (145mm)

Prod #	Description	Diameter of Soft Copper Wire
Large Tapered Head Cutters, Short Handle, Relief Profile
5721-0	Semi-Flush	0.20 to 1.25 mm	0.008 to 0.049 in
5722	Flush	0.15 to 1.20 mm	0.006 to 0.047 in
5723-0	RAZOR FLUSH®	0.10 to 0.90 mm	0.004 to 0.035 in



Prod #	Description	Diameter of Soft Copper Wire
Large Tapered Head, Long Handle Cutters, Relief Profile
7721	Semi-Flush	0.20 to 1.25 mm	0.008 to 0.049 in
7172	Flush	0.15 to 1.20 mm	0.006 to 0.047 in
7723	RAZOR FLUSH®	0.10 to 0.90 mm	0.004 to 0.035 in
