Tronex Oval Head Cutters, and Heavy Duty



Four options below, available with short or long handles; with relief profile head or standard:

Mini Oval Cutters
Medium Oval Cutters
Large Oval Cutters
NEW Large Oval Cutters with Rounded Edges & Blunted Tips
NEW Extra-Large Oval Cutters
NEW Extra-Large Oval Cutters with Rounded Edges & Blunted Tips
NEW Heavy Duty Cutters

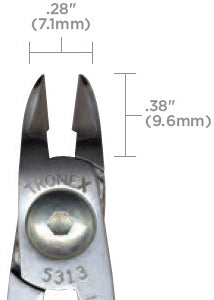

Mini Oval Cutters

Used for fine cutting work, such as with Surface Mount Technology ("SMT"), or work under a microscope.

Short Handle: 4.5" (115mm)

Long Ergonomic Handle: 5.5" (140mm)

Prod #	Description	Diameter of Soft Copper Wire
Mini Oval Cutters, Short Handle, Standard Profile
7122	Semi-Flush	0.20 to 1.50 mm	0.008 to 0.059 in
7158	Flush	0.10 to 1.00 mm	0.004 to 0.039 in
7192	RAZOR FLUSH®	0.10 to 0.80 mm	0.004 to 0.031 in

Prod #	Description	Diameter of Soft Copper Wire
Mini Oval Cutters, Long Handle, Standard Profile
7142	Semi-Flush	0.20 to 1.20 mm	0.008 to 0.047 in
7174	Flush	0.10 to 1.00 mm	0.004 to 0.039 in
7218	RAZOR FLUSH®	0.10 to 0.80 mm	0.004 to 0.031 in



---

---

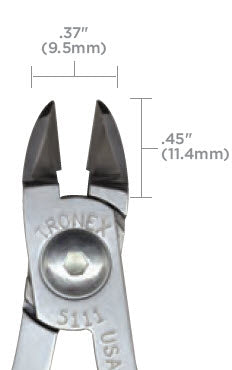

Medium Oval Cutters

Extremely popular. Used for general purpose cutting.
Strong and versatile.

Short Handle: 4.6" (117mm)

Long Ergonomic Handle: 5.6" (142mm)

Prod #	Description	Diameter of Soft Copper Wire
Medium Oval Cutters, Short Handle, Standard Profile
7110	Semi-Flush	0.20 to 1.20 mm	0.008 to 0.047 in
7146	Flush	0.15 to 1.10 mm	0.006 to 0.045 in
7180	RAZOR FLUSH®	0.10 to 1.00 mm	0.004 to 0.039 in



Prod #	Description	Diameter of Soft Copper Wire
Medium Oval Cutters, Long Handle, Standard Profile
7130	Semi-Flush	0.20 to 1.20 mm	0.008 to 0.047 in
7162	Flush	0.15 to 1.10 mm	0.006 to 0.045 in
7106	RAZOR FLUSH®	0.10 to 1.00 mm	0.004 to 0.039 in



---

---



Large Oval Cutters Standard Profile

Have more head material for greater cutting capacity. General purpose.

Short Handle: 4.7" (119mm)

Long Ergonomic Handle: 5.7" (144mm)

Prod #	Description	Diameter of Soft Copper Wire
Large Oval Cutters, Short Handle, Standard Profile
7114	Semi-Flush	0.20 to 1.50 mm	0.008 to 0.059 in
7150	Flush	0.15 to 1.50 mm	0.006 to 0.059 in
7184	RAZOR FLUSH®	0.10 to 1.30 mm	0.004 to 0.051 in



Prod #	Description	Diameter of Soft Copper Wire
Large Oval Cutters, Long Handle, Relief Profile
7134	Semi-Flush	0.20 to 1.50 mm	0.008 to 0.059 in
7166	Flush	0.15 to 1.50 mm	0.006 to 0.059 in
7210	RAZOR FLUSH®	0.10 to 1.30 mm	0.004 to 0.051 in



---

---



Large Oval Cutters Relief Profile

Have more head material for greater cutting capacity. General purpose.

Short Handle: 4.7" (119mm)

Long Ergonomic Handle: 5.7" (144mm)

Prod #	Description	Diameter of Soft Copper Wire
Large Oval Cutters, Short Handle, Relief Profile
7116	Semi-Flush	0.20 to 1.40 mm	0.008 to 0.055 in
7152	Flush	0.15 to 1.50 mm	0.006 to 0.059 in
7186	RAZOR FLUSH®	0.10 to 1.30 mm	0.004 to 0.051 in



Prod #	Description	Diameter of Soft Copper Wire
Large Oval Cutters, Long Handle, Relief Profile
7136	Semi-Flush	0.20 to 1.40 mm	0.008 to 0.055 in
7168	Flush	0.15 to 1.50 mm	0.006 to 0.059 in
7523	RAZOR FLUSH®	0.10 to 1.30 mm	0.004 to 0.051 in



---

---

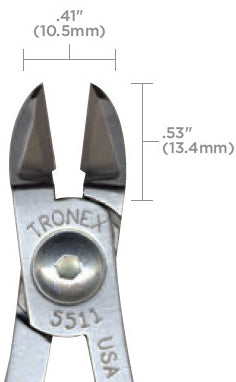

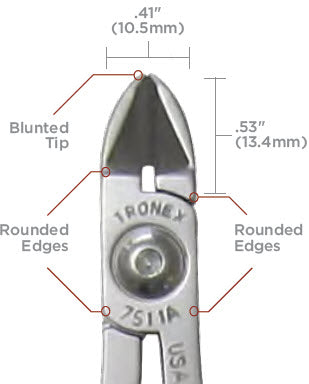

Large Oval Cutters with Rounded Edges & Blunt Tips

Designed for cutting plastic cable ties in avionics manufacturing. These special cutters feature rounded edges to avoid nicking surrounding material. The large round head is capable of cutting heavy gauge wires and plastic cable ties. This is an excellent cutter for avionics wire harness cutting.

Short Handle: 4.6" (116mm)

Long Ergonomic Handle: 5.6" (141mm)

Prod #	Description	Diameter of Soft Copper Wire
Large Oval Cutters, Short Handle, Relief Profile, Rounded Edges & Blunted Tips
5511	Semi-Flush	0.20 to 1.40 mm	0.008 to 0.055 in



Prod #	Description	Diameter of Soft Copper Wire
Large Oval Cutters, Long Handle, Relief Profile, Rounded Edges & Blunted Tips
7511	Semi-Flush	0.20 to 1.40 mm	0.008 to 0.055 in



---

---

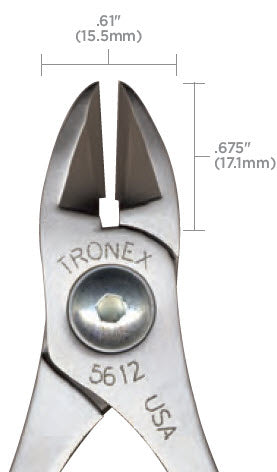

Extra-Large Oval Cutters

This cutter has a longer and wider cutter head which permits an expanded cutting capacity. Able to cut confidently through heavy duty wire, the Extra-Large Oval is popular for a variety of applications and industries. Available in mid sized handles and standard profile.

Medium Handle: 5.5" (140mm)

Prod #	Description	Diameter of Soft Copper Wire
Extra Large Oval Cutters, Medium Handle, Standard Profile
5611-1	Semi-Flush	0.40 to 2.00 mm	0.020 to 0.080 in
5612-0	Flush	0.30 to 2.00 mm	0.010 to 0.080 in
5613	RAZOR FLUSH®	0.30 to 1.60 mm	0.010 to 0.060 in



---

---

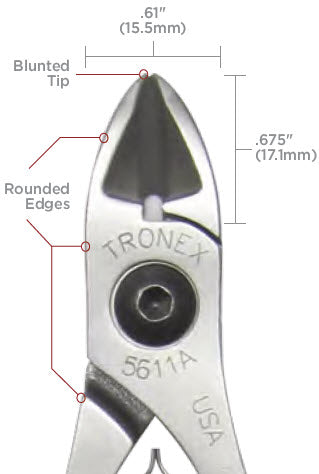

Extra-Large Oval Cutters with Rounded Edges & Blunted Tips

Designed specifically for cutting plastic cable ties in avionics manufacturing. These special cutters feature rounded edges to avoid nicking surrounding material. The large round head is capable of cutting heavy gauge wires and plastic cable ties. This is an excellent cutter for avionics wire harness cutting. Available in mid sized handles and standard profile.

Medium Handle: 5.4" (137mm)

Prod #	Description	Diameter of Soft Copper Wire
Extra-Large Oval Cutters, Medium Handle, Rounded Edges & Blunted Tips
5511-0	Semi-Flush	0.40 to 2.00 mm	0.020 to 0.080 in



---

---

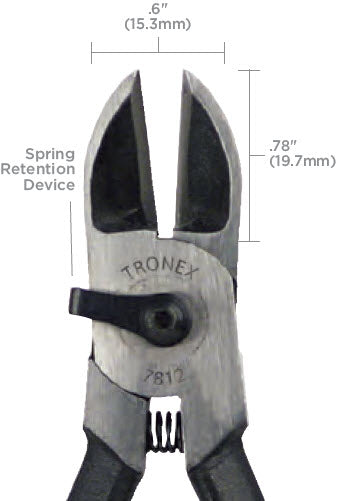

Heavy Duty Cutters

Wire harness and jewelry making are popular applications for our heavy duty cutters. This cutter, forged of carbon steel, has strength in the head and joint areas needed to cut heavier gauge wire or cable. Cushion grips provide operator comfort. A jaw restraining device is attached to ensure spring retention.

Short Handle: 5.2" (132mm)

Long Ergonomic Handle: 6.2" (156mm)

Prod #	Description	Diameter of Soft Copper Wire
Heavy Duty Oval Cutters, Short Handle, Standard Profile
5812-0	Flush	0.30 to 2.00 mm	0.120 to 0.080 in



Prod #	Description	Diameter of Soft Copper Wire
Extra-Large Oval Cutters, Medium Handle, Rounded Edges & Blunted Tips
7811-0	Semi-Flush	0.40 to 2.00 mm	0.020 to 0.080 in
7812	Flush	0.30 to 2.00 mm	0.010 to 0.080 in
