Tronex Angulated Cutters for Circuit Boards

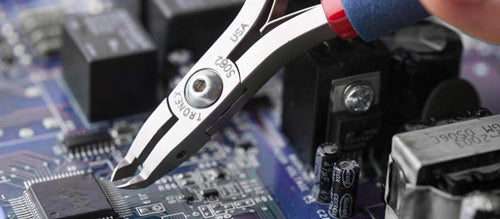

cutting edges at an angle to the board

Most precision hand cutting tools have cutting edges at a 15 to 20° angle so that there is clearance for the operator’s fingers on the handles. However, a much greater angle may be preferred when access to the object being cut is very limited or when the work area is very crowded. Tronex^® offers angulated cutters at different angles and with different cutting edge sizes to meet a wide variety of needs.

Options below, available with short or long handles, pointed or regular tip:

1. Large 50° Cutter
2. Miniature 50° or 90° Cutters
3. Small 50° or 70° Cutters



Large 50° Pointed Cutters

Large cutting edge with pointed tip. Short jaw for enhanced control.

Short Handle: 4.7" (119mm)

Long Ergonomic Handle: 5.7" (144mm)

Prod #	Description	Diameter of Soft Copper Wire
5004	Large 50° Pointed Cutter, Short Handle, Flush	0.20 to 0.80 mm	0.008 to 0.031 in
7004-0	Large 50° Pointed Cutter, Long Handle, Flush	0.20 to 0.80 mm	0.008 to 0.031 in



---

---



Large 50° Cutters

Largest cutting head. Robust. Excellent in cutting several leads in a single cut. Relieved for enhanced visibility.

Short Handle: 4.8" (123mm)

Long Ergonomic Handle: 5.8" (148mm)

Prod #	Description	Diameter of Soft Copper Wire
5072-0	Large 50° Cutter, Short Handle, Flush	0.20 to 1.00 mm	0.008 to 0.039 in
7072	Large 50° Cutter, Long Handle, Flush	0.20 to 1.00 mm	0.008 to 0.039 in



---

---



Miniature 90° Cutters

Long, very narrow jaw with miniature opposing cutting edges at end permit cutting in highly confined areas.

Short Handle: 4.9" (124mm)

Long Ergonomic Handle: 5.9" (149mm)

Prod #	Description	Diameter of Soft Copper Wire
5074-0	Miniature 90° Cutter, Short Handle, Flush	0.20 to 0.65 mm	0.008 to 0.025 in
7074	Miniature 90° Cutter, Long Handle, Flush	0.20 to 0.65 mm	0.008 to 0.025 in



---

---



Miniature 50° Cutters

A Surface Mount Technology ("SMT") cutter with a very small cutting head. Used for exceptionally fine cutting. Relieved for maximum accessibility.

Short Handle: 4.9" (124mm)

Long Ergonomic Handle: 5.9" (149mm)

Prod #	Description	Diameter of Soft Copper Wire
5075-0	Miniature 50° Cutter, Short Handle, Flush	0.10 to 0.65 mm	0.004 to 0.025 in
7075	Miniature 50° Cutter, Long Handle, Flush	0.10 to 0.65 mm	0.004 to 0.025 in



---

---



Small 50° Pointed Cutters

New angulated cutter with a very pointed tip which allows for maximum accessibility into confined areas.

Short Handle: 4.9" (124mm)

Long Ergonomic Handle: 5.9" (149mm)

Prod #	Description	Diameter of Soft Copper Wire
5080-0	Small 50° Pointed Cutter, Short Handle, Flush	0.10 to 0.80 mm	0.008 to 0.030 in
7080	Small 50° Pointed Cutter, Long Handle, Flush	0.10 to 0.80 mm	0.008 to 0.030 in



---

---

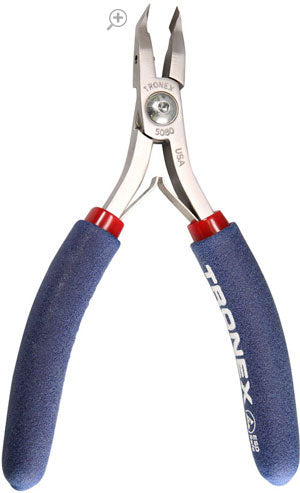

Small 50° Cutters

Most popular angulated cutter. Small cutting head with relief for excellent visibility. Durability combined with fine cutting.

Short Handle: 4.9" (124mm)

Long Ergonomic Handle: 5.9" (149mm)

Prod #	Description	Diameter of Soft Copper Wire
5082-0	Small 50° Cutter, Short Handle, Flush	0.10 to 0.80 mm	0.008 to 0.030 in
7082	Small 50° Cutter, Long Handle, Flush	0.10 to 0.80 mm	0.008 to 0.030 in



---

---



Small 70° Pointed Cutters

A Surface Mount Technology ("SMT") cutter. Steep 70° angle with a very fine cutting head allows special access.

Short Handle: 4.9" (124mm)

Long Ergonomic Handle: 5.9" (149mm)

Prod #	Description	Diameter of Soft Copper Wire
5083-0	Small 70° Pointed Cutter, Short Handle, Flush	0.10 to 0.65 mm	0.008 to 0.025 in
7083	Small 70° Pointed Cutter, Long Handle, Flush	0.20 to 0.80 mm	0.008 to 0.025 in
