TRITON AX

THE FIRST HEATING & COOLING ELECTROCHEMICAL CELL FOR TEM

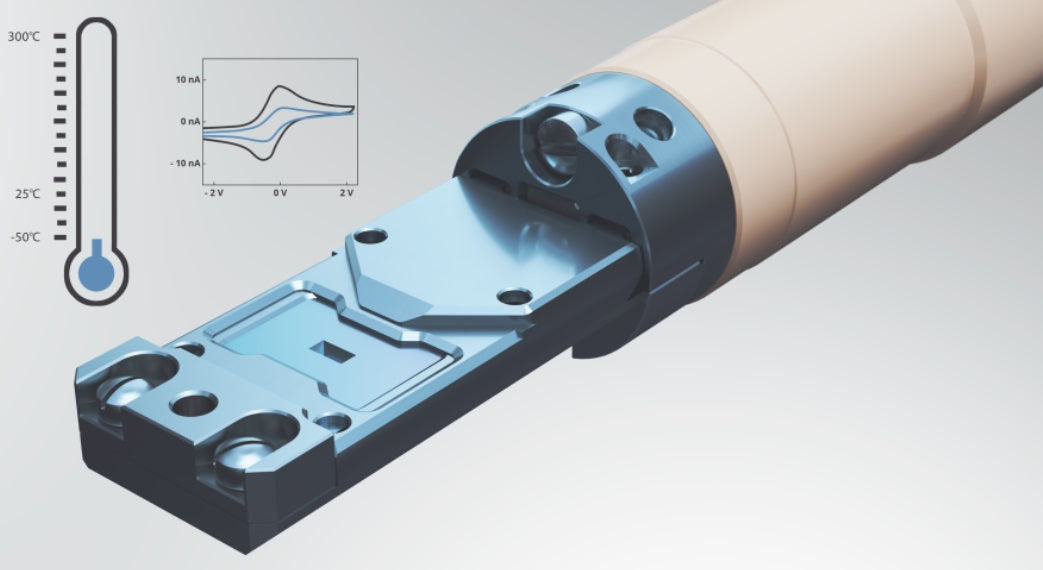

Triton AX is the world’s first system to enable temperature-dependent analysis of electrochemical reactions at extreme temperatures, ranging from -50°C to 300°C. The temperature is completely user-definable to provide precise control over experimental conditions and drive innovation forward for batteries, electrocatalysts, corrosion-resistance, chemistry, and more.

TRITON AX on the nutshell

Flexible in situ environments: A wide range of extreme temperatures enables ultimate flexibility in studying temperature-dependent phenomena.

Machine vision software suite: Integrated machine vision software manages many data collection tasks in the background so you can focus on the experiment at hand.

Front-to-back workflow: Each step of the research process, from sample preparation to data management and analysis, has been considered to maximize rigor and reproducibility.

Safety: Safety of the TEM is top priority – none of our systems require disassembly that would put the TEM at risk to enable different imaging techniques or perform maintenance.

TRITON AX components

TRITON AX SAMPLE SUPPORT: E-CHIPS

The Triton AX solution uses custom-made microelectromechanical systems (MEMS) as sample supports to adjust liquid thickness, add temperature, or enable electrochemical measurements within the liquid holder. All MEMS devices (E-chips™) are designed, fabricated, and quality checked in-house, which gives Protochips an immense amount of control and oversight to ensure quality and proper functionality as well as keep cost minimized.

With several unique designs such as:

• microwells to limit liquid thickness
• flow management designs for ultimate flow control
• temperature control E-chips with patented FrameHeater^TM technology maximizing uniformity
• EDS-optimized designs that enable EDS collection without tilting there is certain to be a combination to support any research goal.

TRITON AX WORKFLOW

AXON MACHINE VISION SOFTWARE PLATFORM
