Top Hat Electron Microscope Apertures for ZEISS/LEO, Nanolab, Novascan

Top Hat Electron Microscope Apertures for ZEISS/LEO, Nanolab, Novascan

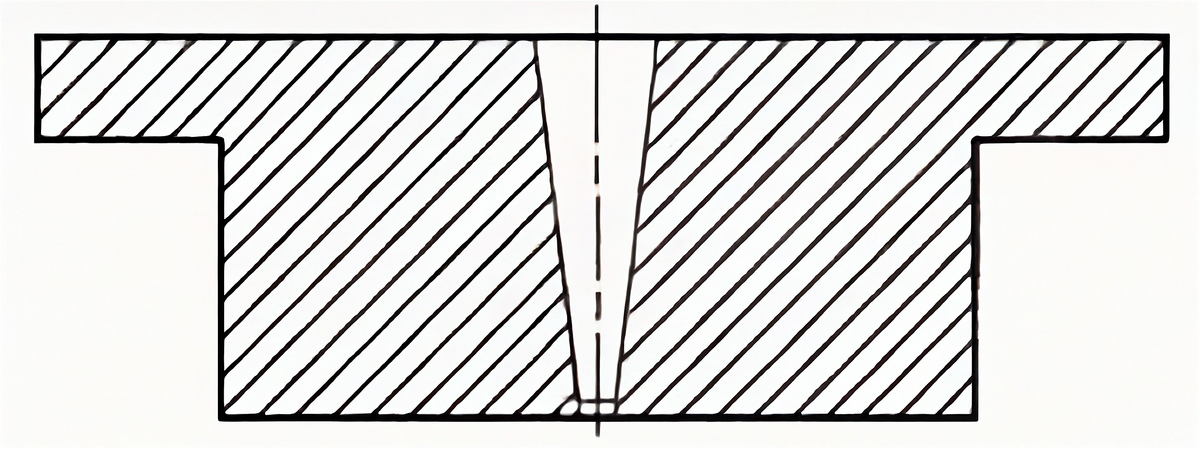

Countersink 14° for aperture holes up to 300µm.
Countersink 90° for aperture holes 500 and 700µm.
Countersink 53° for hole aperture hole of 1000µm.

3.04mm diameter base with a thickness of 0.25mm.
Smaller diameter is 2.0mm.
Total thickness is 1.0mm.

Conventional apertures can be partly transparent for X-rays causing a higher background level when using EDX analysis. The thicker top hat apertures reduce X-ray transparency.

Documentation

SDS

Technical Notes

🚚 Estimated Delivery: 5 - 6 weeks from payment confirmation

View full details
Variant Variant total Quantity Price Variant total
Top Hat Apertures 3.04mm Base O.D., 2mm Hat O.D. x 1mm total thickness, Pt/Ir (95:5), 20μm hole dia. (Unit: each)65020
Top Hat Apertures 3.04mm Base O.D., 2mm Hat O.D. x 1mm total thickness, Pt/Ir (95:5), 20μm hole dia. (Unit: each)65020
2.853,90 lei/ea		 0,00 lei
2.853,90 lei/ea 0,00 lei
Top Hat Apertures 3.04mm Base O.D., 2mm Hat O.D. x 1mm total thickness, Pt/Ir (95:5), 30μm hole dia. (Unit: each)65030
Top Hat Apertures 3.04mm Base O.D., 2mm Hat O.D. x 1mm total thickness, Pt/Ir (95:5), 30μm hole dia. (Unit: each)65030
2.595,82 lei/ea		 0,00 lei
2.595,82 lei/ea 0,00 lei
Top Hat Apertures 3.04mm Base O.D., 2mm Hat O.D. x 1mm total thickness, Pt/Ir (95:5), 50μm hole dia. (Unit: each)65050
Top Hat Apertures 3.04mm Base O.D., 2mm Hat O.D. x 1mm total thickness, Pt/Ir (95:5), 50μm hole dia. (Unit: each)65050
2.185,15 lei/ea		 0,00 lei
2.185,15 lei/ea 0,00 lei
Top Hat Apertures 3.04mm Base O.D., 2mm Hat O.D. x 1mm total thickness, Pt/Ir (95:5), 70μm hole dia. (Unit: each)65070
Top Hat Apertures 3.04mm Base O.D., 2mm Hat O.D. x 1mm total thickness, Pt/Ir (95:5), 70μm hole dia. (Unit: each)65070
2.028,40 lei/ea		 0,00 lei
2.028,40 lei/ea 0,00 lei
Top Hat Apertures 3.04mm Base O.D., 2mm Hat O.D. x 1mm total thickness, Pt/Ir (95:5), 100μm hole dia. (Unit: each)65100
Top Hat Apertures 3.04mm Base O.D., 2mm Hat O.D. x 1mm total thickness, Pt/Ir (95:5), 100μm hole dia. (Unit: each)65100
1.821,46 lei/ea		 0,00 lei
1.821,46 lei/ea 0,00 lei
Top Hat Apertures 3.04mm Base O.D., 2mm Hat O.D. x 1mm total thickness, Pt/Ir (95:5), 150μm hole dia. (Unit: each)65150
Top Hat Apertures 3.04mm Base O.D., 2mm Hat O.D. x 1mm total thickness, Pt/Ir (95:5), 150μm hole dia. (Unit: each)65150
1.821,46 lei/ea		 0,00 lei
1.821,46 lei/ea 0,00 lei
Top Hat Apertures 3.04mm Base O.D., 2mm Hat O.D. x 1mm total thickness, Pt/Ir (95:5), 200μm hole dia. (Unit: each)65200
Top Hat Apertures 3.04mm Base O.D., 2mm Hat O.D. x 1mm total thickness, Pt/Ir (95:5), 200μm hole dia. (Unit: each)65200
1.814,93 lei/ea		 0,00 lei
1.814,93 lei/ea 0,00 lei
Top Hat Apertures 3.04mm Base O.D., 2mm Hat O.D. x 1mm total thickness, Pt/Ir (95:5), 300μm hole dia. (Unit: each)65300
Top Hat Apertures 3.04mm Base O.D., 2mm Hat O.D. x 1mm total thickness, Pt/Ir (95:5), 300μm hole dia. (Unit: each)65300
1.821,46 lei/ea		 0,00 lei
1.821,46 lei/ea 0,00 lei
Top Hat Apertures 3.04mm Base O.D., 2mm Hat O.D. x 1mm total thickness, Pt/Ir (95:5), 500μm hole dia. (Unit: each)65155
Top Hat Apertures 3.04mm Base O.D., 2mm Hat O.D. x 1mm total thickness, Pt/Ir (95:5), 500μm hole dia. (Unit: each)65155
1.804,23 lei/ea		 0,00 lei
1.804,23 lei/ea 0,00 lei
Top Hat Apertures 3.04mm Base O.D., 2mm Hat O.D. x 1mm total thickness, Pt/Ir (95:5), 700μm hole dia. (Unit: each)65157
Top Hat Apertures 3.04mm Base O.D., 2mm Hat O.D. x 1mm total thickness, Pt/Ir (95:5), 700μm hole dia. (Unit: each)65157
1.785,94 lei/ea		 0,00 lei
1.785,94 lei/ea 0,00 lei
Top Hat Apertures 3.04mm Base O.D., 2mm Hat O.D. x 1mm total thickness, Pt/Ir (95:5), 1000μm hole dia. (Unit: each)65159
Top Hat Apertures 3.04mm Base O.D., 2mm Hat O.D. x 1mm total thickness, Pt/Ir (95:5), 1000μm hole dia. (Unit: each)65159
1.809,69 lei/ea		 0,00 lei
1.809,69 lei/ea 0,00 lei
