Tipless AFM Probes

Tipless AFM Probes

AIO-TL

(Also known as All-In-One-Tipless)

Multipurpose AFM Probe with 4 Different Tipless Cantilevers

AFM Probe Specifications:

AFM Tip

Shape: Tipless

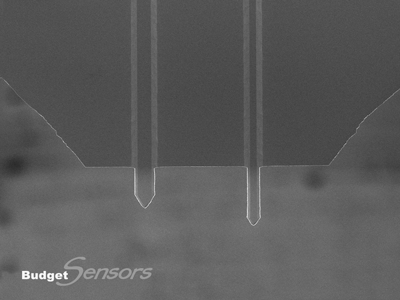

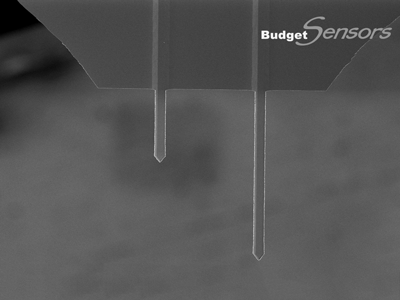

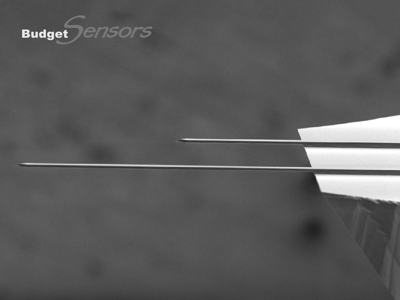

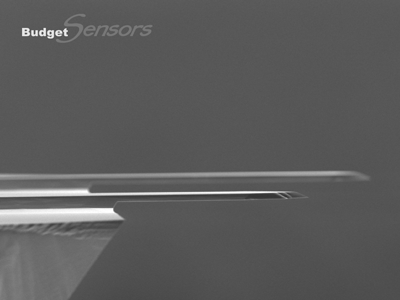

4 AFM Cantilevers

Cantilever A - Contact Mode
 Beam
0.2 N/m (0.04 - 0.7 N/m)*
15 kHz (10 - 20 kHz)*
 500 µm (490 - 510 µm)*
30 µm (25 - 35 µm)*
 2.7 µm (1.7 - 3.7 µm)*

Cantilever B - Force Modulation
 Beam
2.7 N/m (0.4 - 10 N/m)*
80 kHz (50 - 110 kHz)*
 210 µm (200 - 220 µm)*
30 µm (25 - 35 µm)*
 2.7 µm (1.7 - 3.7 µm)*

Cantilever C - Soft Tapping
 Beam
7.4 N/m (1 - 29 N/m)*
150 kHz (70 - 230 kHz)*
 150 µm (140 - 160 µm)*
30 µm (25 - 35 µm)*
 2.7 µm (1.7 - 3.7 µm)*

Cantilever D - Tapping Mode
 Beam
40 N/m (7 - 160 N/m)*
350 kHz (200 - 500 kHz)*
 100 µm (90 - 110 µm)*
50 µm (45 - 55 µm)*
 2.7 µm (1.7 - 3.7 µm)*
* typical range

Coating

Uncoated

Alignment Grooves

none

Additional Info

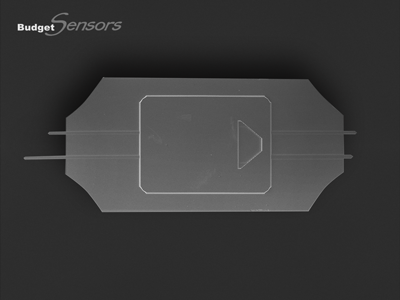

Versatile monolithic silicon AFM probe with 4 different tipless AFM cantilevers on a single AFM holder chip for various applications: contact mode, force modulation mode, soft tapping mode and high frequency tapping/ non-contact mode.

The AFM holder chip fits most commercial AFM systems as it is industry standard size.

The main advantage of this product compared to regular, single-cantilever AFM probes is the freedom to choose in the very last moment the right AFM cantilever for each application. You don't need to stock various AFM пrobe types any more. Nevertheless, this product is not meant as a substitution to comparable single-cantilever AFM probes, because the geometry of each one of the All-In-One AFM cantilevers differs from the geometry of comparable specialized single-cantilever AFM probes.

BudgetSensors offers consistent high quality at a lower price!

AIOAl-TL

(Also known as All-In-One-Al-Tipless)

Multipurpose AFM Probe with 4 Different Tipless Cantilevers

AFM Probe Specifications:

AFM Tip

Shape: Tipless

4 AFM Cantilevers

Cantilever A - Contact Mode
 Beam
0.2 N/m (0.04 - 0.7 N/m)*
15 kHz (10 - 20 kHz)*
 500 µm (490 - 510 µm)*
30 µm (25 - 35 µm)*
 2.7 µm (1.7 - 3.7 µm)*

Cantilever B - Force Modulation
 Beam
 2.7 N/m (0.4 - 10 N/m)*
80 kHz (50 - 110 kHz)*
 210 µm (200 - 220 µm)*
30 µm (25 - 35 µm)*
 2.7 µm (1.7 - 3.7 µm)*

Cantilever C - Soft Tapping
 Beam
7.4 N/m (1 - 29 N/m)*
150 kHz (70 - 230 kHz)*
 150 µm (140 - 160 µm)*
30 µm (25 - 35 µm)*
 2.7 µm (1.7 - 3.7 µm)*

Cantilever D - Tapping Mode
 Beam
 40 N/m (7 - 160 N/m)*
350 kHz (200 - 500 kHz)*
 100 µm (90 - 110 µm)*
50 µm (45 - 55 µm)*
 2.7 µm (1.7 - 3.7 µm)*
* typical range

Coating

Aluminium reflex coating on detector side of the cantilever, 30 nm thick

Alignment Grooves

none

Additional Info

Versatile monolithic silicon AFM probe with 4 different tipless AFM cantilevers on a single AFM holder chip for various applications: contact mode, force modulation mode, soft tapping mode and high frequency tapping/ non-contact mode.

The AFM holder chip fits most commercial AFM systems as it is industry standard size.

The main advantage of this product compared to regular, single-cantilever AFM probes is the freedom to choose in the very last moment the right AFM cantilever for each application. You don't need to stock various AFM пrobe types any more. Nevertheless, this product is not meant as a substitution to comparable single-cantilever AFM probes, because the geometry of each one of the All-In-One AFM cantilevers differs from the geometry of comparable specialized single-cantilever AFM probes.

Please note that the aluminum back side coating is not suitable for measurements in liquids!

BudgetSensors offers consistent high quality at a lower price!

Documentation

SDS

Technical Notes

View full details
Variant Variant total Quantity Price Variant total
AIO-TL Multipurpose AFM Probe with 4 Different Tipless Cantilevers, uncoated, no alignment grooves (Unit: pkg/10)AIO-TL-10
AIO-TL Multipurpose AFM Probe with 4 Different Tipless Cantilevers, uncoated, no alignment grooves (Unit: pkg/10)AIO-TL-10
1.468,58 lei/ea		 0,00 lei
1.468,58 lei/ea 0,00 lei
AIO-TL Multipurpose AFM Probe with 4 Different Tipless Cantilevers, uncoated, no alignment grooves (Unit: pkg/50)AIO-TL-50
AIO-TL Multipurpose AFM Probe with 4 Different Tipless Cantilevers, uncoated, no alignment grooves (Unit: pkg/50)AIO-TL-50
5.930,82 lei/ea		 0,00 lei
5.930,82 lei/ea 0,00 lei
AIOAl-TL Multipurpose AFM Probe with 4 Different Tipless Cantilevers and Aluminum Reflective Coating, Al coating on detector side of the cantilever, no alignment grooves (Unit: pkg/10)AIOAl-TL-10
AIOAl-TL Multipurpose AFM Probe with 4 Different Tipless Cantilevers and Aluminum Reflective Coating, Al coating on detector side of the cantilever, no alignment grooves (Unit: pkg/10)AIOAl-TL-10
1.468,58 lei/ea		 0,00 lei
1.468,58 lei/ea 0,00 lei
AIOAl-TL Multipurpose AFM Probe with 4 Different Tipless Cantilevers and Aluminum Reflective Coating, Al coating on detector side of the cantilever, no alignment grooves (Unit: pkg/50)AIOAl-TL-50
AIOAl-TL Multipurpose AFM Probe with 4 Different Tipless Cantilevers and Aluminum Reflective Coating, Al coating on detector side of the cantilever, no alignment grooves (Unit: pkg/50)AIOAl-TL-50
5.930,82 lei/ea		 0,00 lei
5.930,82 lei/ea 0,00 lei
