Tipless AFM Cantilevers

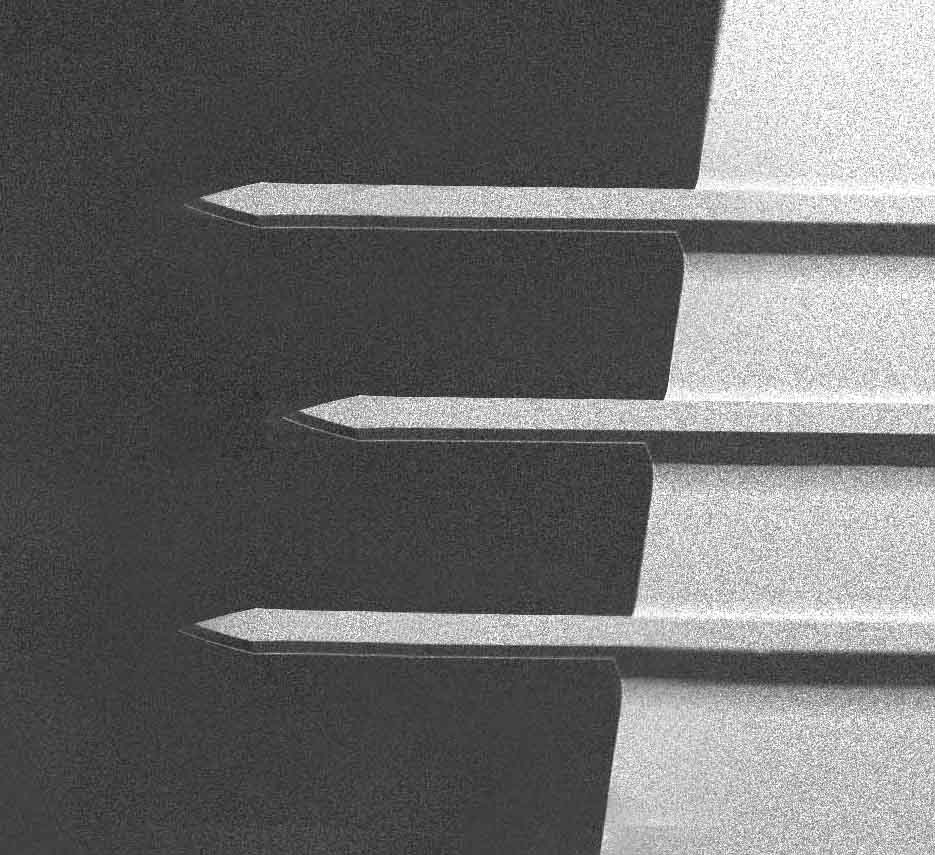

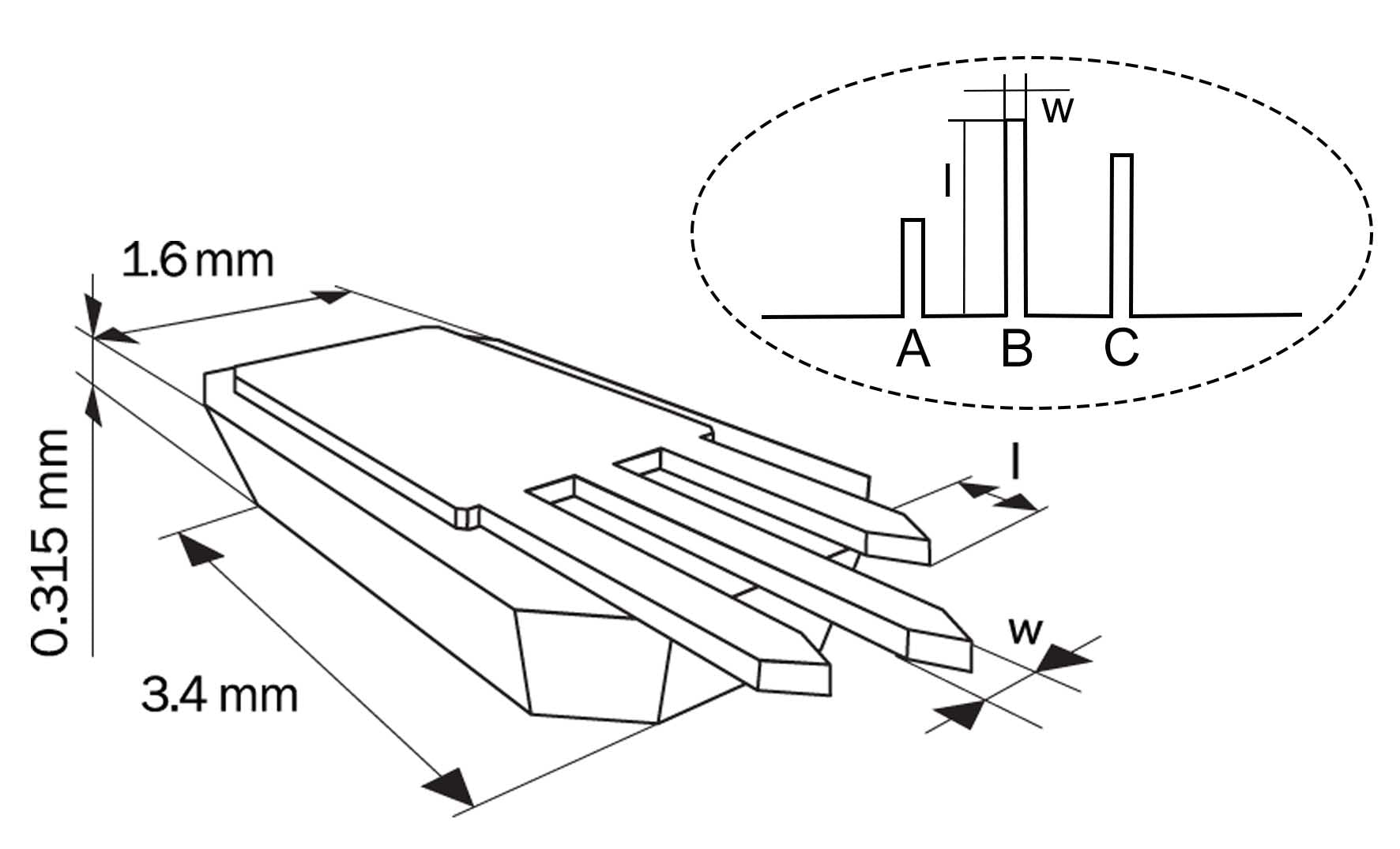

General view of the HQ:NSC35/Tipless and HQ:NSC36/Tipless AFM cantilevers

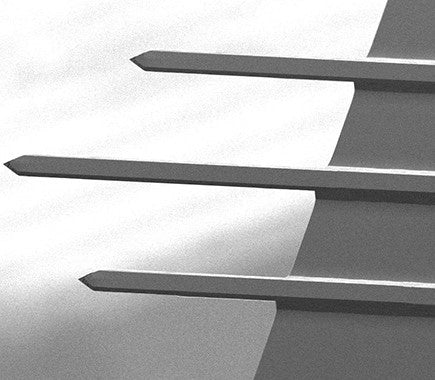

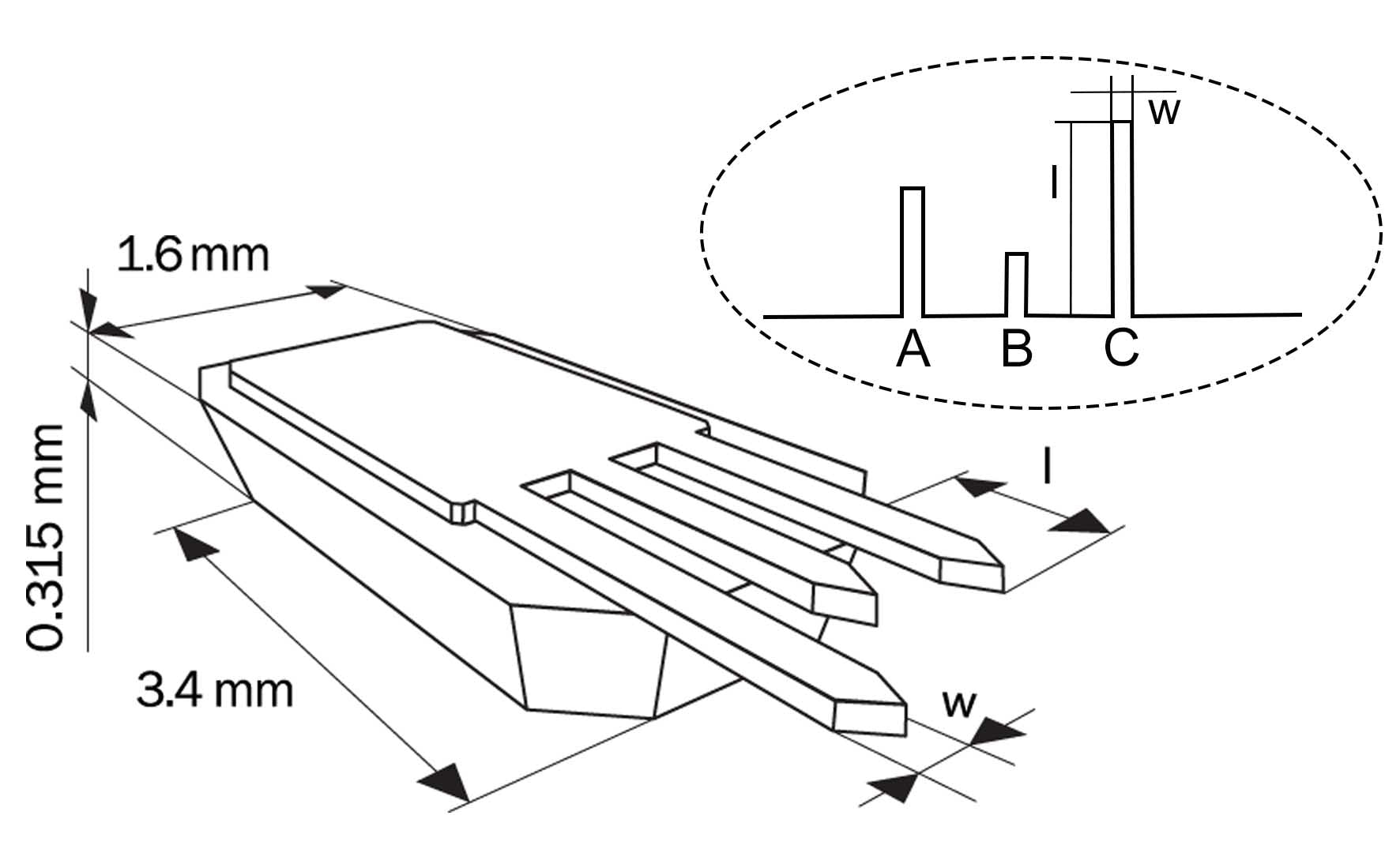

General view of the HQ:CSC37/Tipless and HQ:CSC38/Tipless AFM cantilevers

AFM Probe material
n-type silicon
AFM Probe bulk resistivity
0.01-0.025 Ohm*cm

The AFM probes in the Tipless series offer three different AFM cantilevers on one side of the chip without AFM tips. They can be used in various applications such as gluing microspheres or custom tip pyramids. HQ:NSC35 and HQ:NSC36 series AFM probes feature 3 different soft tapping mode AFM cantilevers, while HQ:CSC37 and HQ:CSC38 series AFM probes feature 3 different contact mode AFM cantilevers.

3 AFM Cantilevers Series

AFM Cantilever		Resonance Frequency, kHz			Force Constant, N/m
AFM Cantilever		min	typical	max	min	typical	max
35 series	Cantilever A	130	205	290	2.7	8.9	24
	Cantilever B	185	300	430	4.8	16	44
	Cantilever C	95	150	205	1.7	5.4	14
36 series	Cantilever A	30	90	160	0.1	1.0	4.6
	Cantilever B	45	130	240	0.2	2	9
	Cantilever C	25	65	115	0.06	0.6	2.7
37 series	Cantilever A	30	40	55	0.3	0.8	2
	Cantilever B	15	20	30	0.1	0.3	0.6
	Cantilever C	20	30	40	0.1	0.4	1
38 series	Cantilever A	8	20	32	0.01	0.09	0.36
	Cantilever B	5	10	17	0.003	0.03	0.13
	Cantilever C	6	14	23	0.005	0.05	0.21

Application

Tipless AFM cantilevers are often used for custom applications such as for example attaching spheres or other objects for force spectroscopy measurements.

HQ:NSC35/tipless/No Al

Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers

AFM probes of the HQ:NSC35 series have three different tipless soft tapping mode AFM cantilevers on one side of the holder chip. They can be used in various applications.

The HQ AFM probes offer high consistency of the AFM tip radius, the AFM cantilever reflectivity and the quality factor.

Coating

none

AFM Probe Specifications

AFM Tip

Shape
Tipless

AFM Cantilever

Cantilever	Shape	Force Const.	Res. Freq.	Length	Width	Thickness
Cantilever A	Beam	8.9 N/m(2.7 - 24 N/m)	205 kHz(130 - 290 kHz)	110 µm(105 - 115µm)	35 µm(32 - 38µm)	2 µm(1.5 - 2.5 µm)
Cantilever B	Beam	16 N/m(4.8 - 44 N/m)	300 kHz(185 - 430 kHz)	90 µm(85 - 95µm)	35 µm(32 - 38µm)	2 µm(1.5 - 2.5 µm)
Cantilever C	Beam	5.4 N/m(1.7 - 14 N/m)	150 kHz(95 - 205 kHz)	130 µm(125 - 135µm)	35 µm(32 - 38µm)	2 µm(1.5 - 2.5 µm)

All typical values

HQ:NSC36/tipless/No Al

Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, Low Force Constant

AFM probes of the HQ:NSC36 series have three different tipless soft tapping mode AFM cantilevers on one side of the holder chip. They can be used in various applications.

The HQ AFM probes offer high consistency of the AFM tip radius, the AFM cantilever reflectivity and the quality factor.

Coating

none

AFM Probe Specifications

AFM Tip

Shape
Tipless

AFM Cantilever

Cantilever	Shape	Force Const.	Res. Freq.	Length	Width	Thickness
Cantilever A	Beam	1 N/m(0.1 - 4.6 N/m)	90 kHz(30 - 160 kHz)	110 µm(105 - 115µm)	32.5 µm(29.5 - 35.5µm)	1 µm(0.5 - 1.5 µm)
Cantilever B	Beam	2 N/m(0.2 - 9 N/m)	130 kHz(45 - 240 kHz)	90 µm(85 - 95µm)	32.5 µm(29.5 - 35.5µm)	1 µm(0.5 - 1.5 µm)
Cantilever C	Beam	0.6 N/m(0.06 - 2.7 N/m)	65 kHz(25 - 115 kHz)	130 µm(125 - 135µm)	32.5 µm(29.5 - 35.5µm)	1 µm(0.5 - 1.5 µm)

All typical values

HQ:CSC37/tipless/No Al

Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers

AFM probes of the HQ:CSC37 series have three different tipless contact mode AFM cantilevers on one side of the holder chip. They can be used in various applications.

The HQ AFM probes offer high consistency of the AFM tip radius, the AFM cantilever reflectivity and the quality factor.

Coating

none

AFM Probe Specifications

AFM Tip

Shape
Tipless

AFM Cantilever

Cantilever	Shape	Force Const.	Res. Freq.	Length	Width	Thickness
Cantilever A	Beam	0.8 N/m(0.3 - 2 N/m)	40 kHz(30 - 55 kHz)	250 µm(245 - 255µm)	35 µm(32 - 38µm)	2 µm(1.5 - 2.5 µm)
Cantilever B	Beam	0.3 N/m(0.1 - 0.6 N/m)	20 kHz(15 - 30 kHz)	350 µm(345 - 355µm)	35 µm(32 - 38µm)	2 µm(1.5 - 2.5 µm)
Cantilever C	Beam	0.4 N/m(0.1 - 1 N/m)	30 kHz(20 - 40 kHz)	300 µm(295 - 305µm)	35 µm(32 - 38µm)	2 µm(1.5 - 2.5 µm)

All typical values

HQ:CSC38/tipless/No Al

Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, Low Force Constant

AFM probes of the HQ:CSC38 series have three different tipless soft contact mode AFM cantilevers on one side of the holder chip. They can be used in various applications.

The HQ AFM probes offer high consistency of the AFM tip radius, the AFM cantilever reflectivity and the quality factor.

Coating

none

AFM Probe Specifications

AFM Tip

Shape
Tipless

AFM Cantilever

Cantilever	Shape	Force Const.	Res. Freq.	Length	Width	Thickness
Cantilever A	Beam	0.09 N/m(0.01 - 0.36 N/m)	20 kHz(8 - 32 kHz)	250 µm(245 - 255µm)	32.5 µm(29.5 - 35.5µm)	1 µm(0.5 - 1.5 µm)
Cantilever B	Beam	0.03 N/m(0.003 - 0.13 N/m)	10 kHz(5 - 17 kHz)	350 µm(345 - 355µm)	32.5 µm(29.5 - 35.5µm)	1 µm(0.5 - 1.5 µm)
Cantilever C	Beam	0.05 N/m(0.005 - 0.21 N/m)	14 kHz(6 - 23 kHz)	300 µm(295 - 305µm)	32.5 µm(29.5 - 35.5µm)	1 µm(0.5 - 1.5 µm)

All typical values

HQ:NSC35/tipless/Cr-Au

Tipless AFM Probe with 3 Different Gold Coated Soft Tapping Mode AFM Cantilevers

AFM probes of the HQ:NSC35 series have three different tipless soft tapping mode AFM cantilevers on one side of the holder chip. They can be used in various applications.

The HQ AFM probes offer high consistency of the AFM tip radius, the AFM cantilever reflectivity and the quality factor.

The overall 30 nm Au coating with 20 nm Cr sublayer is electrically conductive and chemically inert. It also ehnances the laser reflectivity of the AFM cantilevers in air and liquids. The coating may cause AFM cantilever bending up to 3°.

Coating

Gold Overall

AFM Probe Specifications

AFM Tip

Shape
Tipless

AFM Cantilever

Cantilever	Shape	Force Const.	Res. Freq.	Length	Width	Thickness
Cantilever A	Beam	8.9 N/m(2.7 - 24 N/m)	205 kHz(130 - 290 kHz)	110 µm(105 - 115µm)	35 µm(32 - 38µm)	2 µm(1.5 - 2.5 µm)
Cantilever B	Beam	16 N/m(4.8 - 44 N/m)	300 kHz(185 - 430 kHz)	90 µm(85 - 95µm)	35 µm(32 - 38µm)	2 µm(1.5 - 2.5 µm)
Cantilever C	Beam	5.4 N/m(1.7 - 14 N/m)	150 kHz(95 - 205 kHz)	130 µm(125 - 135µm)	35 µm(32 - 38µm)	2 µm(1.5 - 2.5 µm)

All typical values

HQ:NSC36/tipless/Cr-Au

Tipless AFM Probe with 3 Different Gold Coated Soft Tapping Mode AFM Cantilevers, Low Force Constant

AFM Probe Specifications

AFM Tip

Shape
Tipless

AFM Cantilever

Cantilever	Shape	Force Const.	Res. Freq.	Length	Width	Thickness
Cantilever A	Beam	1 N/m(0.1 - 4.6 N/m)	90 kHz(30 - 160 kHz)	110 µm(105 - 115µm)	32.5 µm(29.5 - 35.5µm)	1 µm(0.5 - 1.5 µm)
Cantilever B	Beam	2 N/m(0.2 - 9 N/m)	130 kHz(45 - 240 kHz)	90 µm(85 - 95µm)	32.5 µm(29.5 - 35.5µm)	1 µm(0.5 - 1.5 µm)
Cantilever C	Beam	0.6 N/m(0.06 - 2.7 N/m)	65 kHz(25 - 115 kHz)	130 µm(125 - 135µm)	32.5 µm(29.5 - 35.5µm)	1 µm(0.5 - 1.5 µm)

All typical values

HQ:CSC37/tipless/Cr-Au

Tipless AFM Probe with 3 Different Gold Coated Contact Mode AFM Cantilevers

AFM probes of the HQ:CSC37 series have three different tipless contact mode AFM cantilevers on one side of the holder chip. They can be used in various applications.

The HQ AFM probes offer high consistency of the AFM tip radius, the AFM cantilever reflectivity and the quality factor.

Coating

Gold Overall

AFM Probe Specifications

AFM Tip

Shape
Tipless

AFM Cantilever

Cantilever	Shape	Force Const.	Res. Freq.	Length	Width	Thickness
Cantilever A	Beam	0.8 N/m(0.3 - 2 N/m)	40 kHz(30 - 55 kHz)	250 µm(245 - 255µm)	35 µm(32 - 38µm)	2 µm(1.5 - 2.5 µm)
Cantilever B	Beam	0.3 N/m(0.1 - 0.6 N/m)	20 kHz(15 - 30 kHz)	350 µm(345 - 355µm)	35 µm(32 - 38µm)	2 µm(1.5 - 2.5 µm)
Cantilever C	Beam	0.4 N/m(0.1 - 1 N/m)	30 kHz(20 - 40 kHz)	300 µm(295 - 305µm)	35 µm(32 - 38µm)	2 µm(1.5 - 2.5 µm)

All typical values

HQ:CSC38/tipless/Cr-Au

Tipless AFM Probe with 3 Different Gold Coated Contact Mode AFM Cantilevers, Low Force Constant

AFM probes of the HQ:CSC38 series have three different tipless soft contact mode AFM cantilevers on one side of the holder chip. They can be used in various applications.

The HQ AFM probes offer high consistency of the AFM tip radius, the AFM cantilever reflectivity and the quality factor.

Coating

Gold Overall

AFM Probe Specifications

AFM Tip

Shape
Tipless

AFM Cantilever

Cantilever	Shape	Force Const.	Res. Freq.	Length	Width	Thickness
Cantilever A	Beam	0.09 N/m(0.01 - 0.36 N/m)	20 kHz(8 - 32 kHz)	250 µm(245 - 255µm)	32.5 µm(29.5 - 35.5µm)	1 µm(0.5 - 1.5 µm)
Cantilever B	Beam	0.03 N/m(0.003 - 0.13 N/m)	10 kHz(5 - 17 kHz)	350 µm(345 - 355µm)	32.5 µm(29.5 - 35.5µm)	1 µm(0.5 - 1.5 µm)
Cantilever C	Beam	0.05 N/m(0.005 - 0.21 N/m)	14 kHz(6 - 23 kHz)	300 µm(295 - 305µm)	32.5 µm(29.5 - 35.5µm)	1 µm(0.5 - 1.5 µm)

All typical values

HQ:NSC35/tipless/Al BS

Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, Reflective Aluminum

AFM probes of the HQ:NSC35 series have three different tipless soft tapping mode AFM cantilevers on one side of the holder chip. They can be used in various applications.

The HQ AFM probes offer high consistency of the AFM tip radius, the AFM cantilever reflectivity and the quality factor.

The aluminum reflective coating enhances the laser reflectivity of the AFM cantilevers by approximately 2.5 times.

Coating

Reflective Aluminum

AFM Probe Specifications

AFM Tip

Shape
Tipless

AFM Cantilever

Cantilever	Shape	Force Const.	Res. Freq.	Length	Width	Thickness
Cantilever A	Beam	8.9 N/m(2.7 - 24 N/m)	205 kHz(130 - 290 kHz)	110 µm(105 - 115µm)	35 µm(32 - 38µm)	2 µm(1.5 - 2.5 µm)
Cantilever B	Beam	16 N/m(4.8 - 44 N/m)	300 kHz(185 - 430 kHz)	90 µm(85 - 95µm)	35 µm(32 - 38µm)	2 µm(1.5 - 2.5 µm)
Cantilever C	Beam	5.4 N/m(1.7 - 14 N/m)	150 kHz(95 - 205 kHz)	130 µm(125 - 135µm)	35 µm(32 - 38µm)	2 µm(1.5 - 2.5 µm)

All typical values

HQ:NSC36/tipless/Al BS

Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, Low Force Constant, Reflective Aluminum

AFM probes of the HQ:NSC36 series have three different tipless soft tapping mode AFM cantilevers on one side of the holder chip. They can be used in various applications.

The HQ AFM probes offer high consistency of the AFM tip radius, the AFM cantilever reflectivity and the quality factor.

The aluminum reflective coating enhances the laser reflectivity of the AFM cantilevers by approximately 2.5 times.

Coating

Reflective Aluminum

AFM Probe Specifications

AFM Tip

Shape
Tipless

AFM Cantilever

Cantilever	Shape	Force Const.	Res. Freq.	Length	Width	Thickness
Cantilever A	Beam	1 N/m(0.1 - 4.6 N/m)	90 kHz(30 - 160 kHz)	110 µm(105 - 115µm)	32.5 µm(29.5 - 35.5µm)	1 µm(0.5 - 1.5 µm)
Cantilever B	Beam	2 N/m(0.2 - 9 N/m)	130 kHz(45 - 240 kHz)	90 µm(85 - 95µm)	32.5 µm(29.5 - 35.5µm)	1 µm(0.5 - 1.5 µm)
Cantilever C	Beam	0.6 N/m(0.06 - 2.7 N/m)	65 kHz(25 - 115 kHz)	130 µm(125 - 135µm)	32.5 µm(29.5 - 35.5µm)	1 µm(0.5 - 1.5 µm)

All typical values

HQ:CSC37/tipless/Al BS

Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, Reflective Aluminum

AFM probes of the HQ:CSC37 series have three different tipless contact mode AFM cantilevers on one side of the holder chip. They can be used in various applications.

The HQ AFM probes offer high consistency of the AFM tip radius, the AFM cantilever reflectivity and the quality factor.

The aluminum reflective coating enhances the laser reflectivity of the AFM cantilevers by approximately 2.5 times.

Coating

Reflective Aluminum

AFM Probe Specifications

AFM Tip

Shape
Tipless

AFM Cantilever

Cantilever	Shape	Force Const.	Res. Freq.	Length	Width	Thickness
Cantilever A	Beam	0.8 N/m(0.3 - 2 N/m)	40 kHz(30 - 55 kHz)	250 µm(245 - 255µm)	35 µm(32 - 38µm)	2 µm(1.5 - 2.5 µm)
Cantilever B	Beam	0.3 N/m(0.1 - 0.6 N/m)	20 kHz(15 - 30 kHz)	350 µm(345 - 355µm)	35 µm(32 - 38µm)	2 µm(1.5 - 2.5 µm)
Cantilever C	Beam	0.4 N/m(0.1 - 1 N/m)	30 kHz(20 - 40 kHz)	300 µm(295 - 305µm)	35 µm(32 - 38µm)	2 µm(1.5 - 2.5 µm)

All typical values

HQ:CSC38/tipless/Al BS

Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, Low Force Constant, Reflective Aluminum

AFM probes of the HQ:CSC38 series have three different tipless soft contact mode AFM cantilevers on one side of the holder chip. They can be used in various applications.

The HQ AFM probes offer high consistency of the AFM tip radius, the AFM cantilever reflectivity and the quality factor.

The aluminum reflective coating enhances the laser reflectivity of the AFM cantilevers by approximately 2.5 times.

Coating

Reflective Aluminum

AFM Probe Specifications

AFM Tip

Shape
Tipless

AFM Cantilever

Cantilever	Shape	Force Const.	Res. Freq.	Length	Width	Thickness
Cantilever A	Beam	0.09 N/m(0.01 - 0.36 N/m)	20 kHz(8 - 32 kHz)	250 µm(245 - 255µm)	32.5 µm(29.5 - 35.5µm)	1 µm(0.5 - 1.5 µm)
Cantilever B	Beam	0.03 N/m(0.003 - 0.13 N/m)	10 kHz(5 - 17 kHz)	350 µm(345 - 355µm)	32.5 µm(29.5 - 35.5µm)	1 µm(0.5 - 1.5 µm)
Cantilever C	Beam	0.05 N/m(0.005 - 0.21 N/m)	14 kHz(6 - 23 kHz)	300 µm(295 - 305µm)	32.5 µm(29.5 - 35.5µm)	1 µm(0.5 - 1.5 µm)

All typical values

Documentation

SDS

Technical Notes

View full details

Your cart
Variant	Variant total	Quantity	Price	Variant total
Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, pkg/15 (Unit: each)HQ:NSC35/tipless/No Al-15	Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, pkg/15 (Unit: each)HQ:NSC35/tipless/No Al-15 2.021,25 lei/ea	0,00 lei	Quantity	2.021,25 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, pkg/50 (Unit: each)HQ:NSC35/tipless/No Al-50	Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, pkg/50 (Unit: each)HQ:NSC35/tipless/No Al-50 5.775,00 lei/ea	0,00 lei	Quantity	5.775,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, pkg/100 (Unit: each)HQ:NSC35/tipless/No Al-100	Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, pkg/100 (Unit: each)HQ:NSC35/tipless/No Al-100 9.975,00 lei/ea	0,00 lei	Quantity	9.975,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, pkg/200 (Unit: each)HQ:NSC35/tipless/No Al-200	Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, pkg/200 (Unit: each)HQ:NSC35/tipless/No Al-200 18.375,00 lei/ea	0,00 lei	Quantity	18.375,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, pkg/400 (Unit: each)HQ:NSC35/tipless/No Al-400	Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, pkg/400 (Unit: each)HQ:NSC35/tipless/No Al-400 30.450,00 lei/ea	0,00 lei	Quantity	30.450,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, Low Force Constant, pkg/15 (Unit: each)HQ:NSC36/tipless/No Al-15	Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, Low Force Constant, pkg/15 (Unit: each)HQ:NSC36/tipless/No Al-15 2.021,25 lei/ea	0,00 lei	Quantity	2.021,25 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, Low Force Constant, pkg/50 (Unit: each)HQ:NSC36/tipless/No Al-50	Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, Low Force Constant, pkg/50 (Unit: each)HQ:NSC36/tipless/No Al-50 5.775,00 lei/ea	0,00 lei	Quantity	5.775,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, Low Force Constant, pkg/100 (Unit: each)HQ:NSC36/tipless/No Al-100	Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, Low Force Constant, pkg/100 (Unit: each)HQ:NSC36/tipless/No Al-100 9.975,00 lei/ea	0,00 lei	Quantity	9.975,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, Low Force Constant, pkg/200 (Unit: each)HQ:NSC36/tipless/No Al-200	Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, Low Force Constant, pkg/200 (Unit: each)HQ:NSC36/tipless/No Al-200 18.375,00 lei/ea	0,00 lei	Quantity	18.375,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, Low Force Constant, pkg/400 (Unit: each)HQ:NSC36/tipless/No Al-400	Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, Low Force Constant, pkg/400 (Unit: each)HQ:NSC36/tipless/No Al-400 30.450,00 lei/ea	0,00 lei	Quantity	30.450,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, pkg/15 (Unit: each)HQ:CSC37/tipless/No Al-15	Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, pkg/15 (Unit: each)HQ:CSC37/tipless/No Al-15 2.021,25 lei/ea	0,00 lei	Quantity	2.021,25 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, pkg/50 (Unit: each)HQ:CSC37/tipless/No Al-50	Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, pkg/50 (Unit: each)HQ:CSC37/tipless/No Al-50 5.775,00 lei/ea	0,00 lei	Quantity	5.775,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, pkg/100 (Unit: each)HQ:CSC37/tipless/No Al-100	Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, pkg/100 (Unit: each)HQ:CSC37/tipless/No Al-100 9.975,00 lei/ea	0,00 lei	Quantity	9.975,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, pkg/200 (Unit: each)HQ:CSC37/tipless/No Al-200	Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, pkg/200 (Unit: each)HQ:CSC37/tipless/No Al-200 18.375,00 lei/ea	0,00 lei	Quantity	18.375,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, pkg/400 (Unit: each)HQ:CSC37/tipless/No Al-400	Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, pkg/400 (Unit: each)HQ:CSC37/tipless/No Al-400 30.450,00 lei/ea	0,00 lei	Quantity	30.450,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, Low Force Constant, pkg/15 (Unit: each)HQ:CSC38/tipless/No Al-15	Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, Low Force Constant, pkg/15 (Unit: each)HQ:CSC38/tipless/No Al-15 2.021,25 lei/ea	0,00 lei	Quantity	2.021,25 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, Low Force Constant, pkg/50 (Unit: each)HQ:CSC38/tipless/No Al-50	Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, Low Force Constant, pkg/50 (Unit: each)HQ:CSC38/tipless/No Al-50 5.775,00 lei/ea	0,00 lei	Quantity	5.775,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, Low Force Constant, pkg/100 (Unit: each)HQ:CSC38/tipless/No Al-100	Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, Low Force Constant, pkg/100 (Unit: each)HQ:CSC38/tipless/No Al-100 9.975,00 lei/ea	0,00 lei	Quantity	9.975,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, Low Force Constant, pkg/200 (Unit: each)HQ:CSC38/tipless/No Al-200	Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, Low Force Constant, pkg/200 (Unit: each)HQ:CSC38/tipless/No Al-200 18.375,00 lei/ea	0,00 lei	Quantity	18.375,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, Low Force Constant, pkg/400 (Unit: each)HQ:CSC38/tipless/No Al-400	Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, Low Force Constant, pkg/400 (Unit: each)HQ:CSC38/tipless/No Al-400 30.450,00 lei/ea	0,00 lei	Quantity	30.450,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Gold Coated Soft Tapping Mode AFM Cantilevers, pkg/15 (Unit: each)HQ:NSC35/tipless/Cr-Au-15	Tipless AFM Probe with 3 Different Gold Coated Soft Tapping Mode AFM Cantilevers, pkg/15 (Unit: each)HQ:NSC35/tipless/Cr-Au-15 2.415,00 lei/ea	0,00 lei	Quantity	2.415,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Gold Coated Soft Tapping Mode AFM Cantilevers, pkg/50 (Unit: each)HQ:NSC35/tipless/Cr-Au-50	Tipless AFM Probe with 3 Different Gold Coated Soft Tapping Mode AFM Cantilevers, pkg/50 (Unit: each)HQ:NSC35/tipless/Cr-Au-50 7.087,50 lei/ea	0,00 lei	Quantity	7.087,50 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Gold Coated Soft Tapping Mode AFM Cantilevers, pkg/100 (Unit: each)HQ:NSC35/tipless/Cr-Au-100	Tipless AFM Probe with 3 Different Gold Coated Soft Tapping Mode AFM Cantilevers, pkg/100 (Unit: each)HQ:NSC35/tipless/Cr-Au-100 13.125,00 lei/ea	0,00 lei	Quantity	13.125,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Gold Coated Soft Tapping Mode AFM Cantilevers, Low Force Constant, pkg/15 (Unit: each)HQ:NSC36/tipless/Cr-Au-15	Tipless AFM Probe with 3 Different Gold Coated Soft Tapping Mode AFM Cantilevers, Low Force Constant, pkg/15 (Unit: each)HQ:NSC36/tipless/Cr-Au-15 2.415,00 lei/ea	0,00 lei	Quantity	2.415,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Gold Coated Soft Tapping Mode AFM Cantilevers, Low Force Constant, pkg/50 (Unit: each)HQ:NSC36/tipless/Cr-Au-50	Tipless AFM Probe with 3 Different Gold Coated Soft Tapping Mode AFM Cantilevers, Low Force Constant, pkg/50 (Unit: each)HQ:NSC36/tipless/Cr-Au-50 7.087,50 lei/ea	0,00 lei	Quantity	7.087,50 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Gold Coated Soft Tapping Mode AFM Cantilevers, Low Force Constant, pkg/100 (Unit: each)HQ:NSC36/tipless/Cr-Au-100	Tipless AFM Probe with 3 Different Gold Coated Soft Tapping Mode AFM Cantilevers, Low Force Constant, pkg/100 (Unit: each)HQ:NSC36/tipless/Cr-Au-100 13.125,00 lei/ea	0,00 lei	Quantity	13.125,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Gold Coated Contact Mode AFM Cantilevers, pkg/15 (Unit: each)HQ:CSC37/tipless/Cr-Au-15	Tipless AFM Probe with 3 Different Gold Coated Contact Mode AFM Cantilevers, pkg/15 (Unit: each)HQ:CSC37/tipless/Cr-Au-15 2.415,00 lei/ea	0,00 lei	Quantity	2.415,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Gold Coated Contact Mode AFM Cantilevers, pkg/50 (Unit: each)HQ:CSC37/tipless/Cr-Au-50	Tipless AFM Probe with 3 Different Gold Coated Contact Mode AFM Cantilevers, pkg/50 (Unit: each)HQ:CSC37/tipless/Cr-Au-50 7.087,50 lei/ea	0,00 lei	Quantity	7.087,50 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Gold Coated Contact Mode AFM Cantilevers, pkg/100 (Unit: each)HQ:CSC37/tipless/Cr-Au-100	Tipless AFM Probe with 3 Different Gold Coated Contact Mode AFM Cantilevers, pkg/100 (Unit: each)HQ:CSC37/tipless/Cr-Au-100 13.125,00 lei/ea	0,00 lei	Quantity	13.125,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Gold Coated Contact Mode AFM Cantilevers, Low Force Constant, pkg/15 (Unit: each)HQ:CSC38/tipless/Cr-Au-15	Tipless AFM Probe with 3 Different Gold Coated Contact Mode AFM Cantilevers, Low Force Constant, pkg/15 (Unit: each)HQ:CSC38/tipless/Cr-Au-15 2.415,00 lei/ea	0,00 lei	Quantity	2.415,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Gold Coated Contact Mode AFM Cantilevers, Low Force Constant, pkg/50 (Unit: each)HQ:CSC38/tipless/Cr-Au-50	Tipless AFM Probe with 3 Different Gold Coated Contact Mode AFM Cantilevers, Low Force Constant, pkg/50 (Unit: each)HQ:CSC38/tipless/Cr-Au-50 7.087,50 lei/ea	0,00 lei	Quantity	7.087,50 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Gold Coated Contact Mode AFM Cantilevers, Low Force Constant, pkg/100 (Unit: each)HQ:CSC38/tipless/Cr-Au-100	Tipless AFM Probe with 3 Different Gold Coated Contact Mode AFM Cantilevers, Low Force Constant, pkg/100 (Unit: each)HQ:CSC38/tipless/Cr-Au-100 13.125,00 lei/ea	0,00 lei	Quantity	13.125,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, Reflective Aluminum, pkg/15 (Unit: each)HQ:NSC35/tipless/Al BS-15	Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, Reflective Aluminum, pkg/15 (Unit: each)HQ:NSC35/tipless/Al BS-15 2.021,25 lei/ea	0,00 lei	Quantity	2.021,25 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, Reflective Aluminum, pkg/50 (Unit: each)HQ:NSC35/tipless/Al BS-50	Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, Reflective Aluminum, pkg/50 (Unit: each)HQ:NSC35/tipless/Al BS-50 5.775,00 lei/ea	0,00 lei	Quantity	5.775,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, Reflective Aluminum, pkg/100 (Unit: each)HQ:NSC35/tipless/Al BS-100	Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, Reflective Aluminum, pkg/100 (Unit: each)HQ:NSC35/tipless/Al BS-100 9.975,00 lei/ea	0,00 lei	Quantity	9.975,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, Reflective Aluminum, pkg/200 (Unit: each)HQ:NSC35/tipless/Al BS-200	Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, Reflective Aluminum, pkg/200 (Unit: each)HQ:NSC35/tipless/Al BS-200 18.375,00 lei/ea	0,00 lei	Quantity	18.375,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, Reflective Aluminum, pkg/400 (Unit: each)HQ:NSC35/tipless/Al BS-400	Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, Reflective Aluminum, pkg/400 (Unit: each)HQ:NSC35/tipless/Al BS-400 30.450,00 lei/ea	0,00 lei	Quantity	30.450,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, Low Force Constant, Reflective Aluminum, pkg/15 (Unit: each)HQ:NSC36/tipless/Al BS-15	Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, Low Force Constant, Reflective Aluminum, pkg/15 (Unit: each)HQ:NSC36/tipless/Al BS-15 2.021,25 lei/ea	0,00 lei	Quantity	2.021,25 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, Low Force Constant, Reflective Aluminum, pkg/50 (Unit: each)HQ:NSC36/tipless/Al BS-50	Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, Low Force Constant, Reflective Aluminum, pkg/50 (Unit: each)HQ:NSC36/tipless/Al BS-50 5.775,00 lei/ea	0,00 lei	Quantity	5.775,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, Low Force Constant, Reflective Aluminum, pkg/100 (Unit: each)HQ:NSC36/tipless/Al BS-100	Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, Low Force Constant, Reflective Aluminum, pkg/100 (Unit: each)HQ:NSC36/tipless/Al BS-100 9.975,00 lei/ea	0,00 lei	Quantity	9.975,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, Low Force Constant, Reflective Aluminum, pkg/200 (Unit: each)HQ:NSC36/tipless/Al BS-200	Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, Low Force Constant, Reflective Aluminum, pkg/200 (Unit: each)HQ:NSC36/tipless/Al BS-200 18.375,00 lei/ea	0,00 lei	Quantity	18.375,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, Low Force Constant, Reflective Aluminum, pkg/400 (Unit: each)HQ:NSC36/tipless/Al BS-400	Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers, Low Force Constant, Reflective Aluminum, pkg/400 (Unit: each)HQ:NSC36/tipless/Al BS-400 30.450,00 lei/ea	0,00 lei	Quantity	30.450,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, Reflective Aluminum, pkg/15 (Unit: each)HQ:CSC37/tipless/Al BS-15	Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, Reflective Aluminum, pkg/15 (Unit: each)HQ:CSC37/tipless/Al BS-15 2.021,25 lei/ea	0,00 lei	Quantity	2.021,25 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, Reflective Aluminum, pkg/50 (Unit: each)HQ:CSC37/tipless/Al BS-50	Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, Reflective Aluminum, pkg/50 (Unit: each)HQ:CSC37/tipless/Al BS-50 5.775,00 lei/ea	0,00 lei	Quantity	5.775,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, Reflective Aluminum, pkg/100 (Unit: each)HQ:CSC37/tipless/Al BS-100	Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, Reflective Aluminum, pkg/100 (Unit: each)HQ:CSC37/tipless/Al BS-100 9.975,00 lei/ea	0,00 lei	Quantity	9.975,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, Reflective Aluminum, pkg/200 (Unit: each)HQ:CSC37/tipless/Al BS-200	Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, Reflective Aluminum, pkg/200 (Unit: each)HQ:CSC37/tipless/Al BS-200 18.375,00 lei/ea	0,00 lei	Quantity	18.375,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, Reflective Aluminum, pkg/400 (Unit: each)HQ:CSC37/tipless/Al BS-400	Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, Reflective Aluminum, pkg/400 (Unit: each)HQ:CSC37/tipless/Al BS-400 30.450,00 lei/ea	0,00 lei	Quantity	30.450,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, Low Force Constant, Reflective Aluminum, pkg/15 (Unit: each)HQ:CSC38/tipless/Al BS-15	Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, Low Force Constant, Reflective Aluminum, pkg/15 (Unit: each)HQ:CSC38/tipless/Al BS-15 2.021,25 lei/ea	0,00 lei	Quantity	2.021,25 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, Low Force Constant, Reflective Aluminum, pkg/50 (Unit: each)HQ:CSC38/tipless/Al BS-50	Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, Low Force Constant, Reflective Aluminum, pkg/50 (Unit: each)HQ:CSC38/tipless/Al BS-50 5.775,00 lei/ea	0,00 lei	Quantity	5.775,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, Low Force Constant, Reflective Aluminum, pkg/100 (Unit: each)HQ:CSC38/tipless/Al BS-100	Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, Low Force Constant, Reflective Aluminum, pkg/100 (Unit: each)HQ:CSC38/tipless/Al BS-100 9.975,00 lei/ea	0,00 lei	Quantity	9.975,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, Low Force Constant, Reflective Aluminum, pkg/200 (Unit: each)HQ:CSC38/tipless/Al BS-200	Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, Low Force Constant, Reflective Aluminum, pkg/200 (Unit: each)HQ:CSC38/tipless/Al BS-200 18.375,00 lei/ea	0,00 lei	Quantity	18.375,00 lei/ea	0,00 lei

Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, Low Force Constant, Reflective Aluminum, pkg/400 (Unit: each)HQ:CSC38/tipless/Al BS-400	Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers, Low Force Constant, Reflective Aluminum, pkg/400 (Unit: each)HQ:CSC38/tipless/Al BS-400 30.450,00 lei/ea	0,00 lei	Quantity	30.450,00 lei/ea	0,00 lei

View cart

Total items

0,00 lei

Product subtotal

Taxes, discounts and shipping calculated at checkout.

View cart

Country/region

Tipless AFM Cantilevers
