Tap150G series for soft tapping mode
Tap150G series for soft tapping mode
| Technical Data: | ||
| Value | Range | |
| Resonant Freq. | 150 kHz | +/-75 kHz |
| Force Constant | 5 N/m | 1.5 - 15 N/m |
| Length | 125 µm | +/-10 µm |
| Mean Width | 25 µm | +/-5 µm |
| Thickness | 2.1 µm | +/-1 µm |
| Tip Height | 17 µm | +/-2 µm |
| Tip Set Back | 15 µm | +/-5 µm |
| Tip Radius | <10 nm (Tap150-G, Tap150AL-G) <15 nm (Tap150DLC) Also see individual probes. |
|
| Half Cone Angle | 20°-25° along cantilever axis 25°-30° from side 10°-at the apex |
|
| Tap150-G Tip radius <10nm | |
| Application: | Soft Tapping Mode, Intermittent Contact Mode |
| General: | Rotated Monolithic silicon probe Symmetric Tip Shape Alignment Grooves (Chip size 3.4 x 1.6 x 0.3mm) |
| Coating: | None This probe uses an "on scan angle" symmetric tip to provide a more symmetric representation of features over 200nm |
| Tap150AL-G Tip radius <10nm | |
| Application: | Soft Tapping Mode, Intermittent Contact Mode |
| General: | Rotated Monolithic silicon probe Symmetric Tip Shape Alignment Grooves (Chip size 3.4 x 1.6 x 0.3mm) |
| Coating: | Aluminum Reflex coating, 30nm thick This probe uses an "on scan angle" symmetric tip to provide a more symmetric representation of features over 200nm |

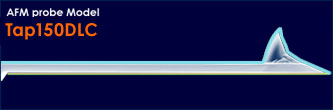

| TAP150DLC Tip radius <15nm | |
| Application: | Tapping, Intermittent Contact Mode |
| General: | Rotated Monolithic silicon probe Symmetric Tip Shape Alignment grooves (Chip size 3.4 x 1.6 x 0.3mm) |
| Coating: | Diamond-Like-Coating on tip side of cantilever, 15nm thick Aluminum Reflex coating on detector side of cantilever, 30nm thick This probe uses an "on scan angle" symmetric tip to provide a more symmetric representation of features over 200nm. |
