Specimen Mounting Clips

Metal Spring Mounting Clips

813-210

Spring clips, ideal for holding thin samples for cross sectioning. Can be used for hot and cold embedding. Give additional support to facilitate flat grinding and polishing. Size is 6.3 x 120mm (W x L). Can be unrolled to hold a section with a thickness up to 40mm. Made of stainless steel.

Plastic Spring Mounting Clips

813-212

Ideal for holding thin samples of softer material. For cold embedding aplications. Size is 6.2 x 120mm tightly rolled to 7.5mm diameter. Can be unrolled to form clip and hold sample up to 40mm. Made of polyester.

Plastic Mounting Clips

813-214

For cold clear embedding applications with epoxy or polyester. Different colors for easy sample location. Size is 6 x 8 x 11mm (H x W x L). Can hold a thin section with a maximum thickness of 2.5mm. Made of PVC.

Multiclips

813-213

Plastic clips for holding up to five small and thin sections. Size is 9 x 12.5 x 21mm (H x W x L). Can hold thin sections with a maximum thickness of 2.5mm. Made of PPE.

NEW Embedding Aids

813-735, 736, 737

Plastic clips for holding up to three or four small and thin sections such as sheet metal or printed circuit boards. Size is 30mm OD x 12mm H  (1.18" OD x 0.47" H). Can hold thin sections with maximum thickness of 1, 2, or 3mm. Made of polystyrene.

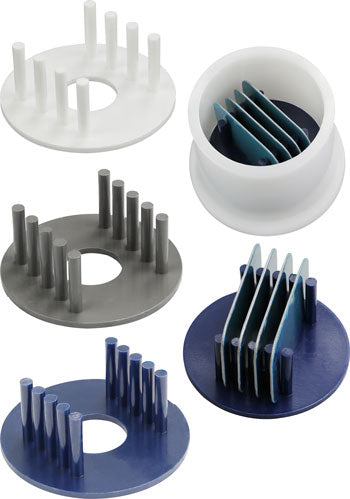

Image left-side top to bottom: Embedding Aid 3mm (white) #813-737, 2mm (gray) #813-736, 1mm (navy) #813-735.

Image right-side top to bottom: Embedding Aid 1mm (#813-735) shown with Samples in Mounting Mold (#813-630), Embedding Aid 1mm (#813-735) shown with Samples.
