Solid/slot Grids 3.00-3.05mm Diameter

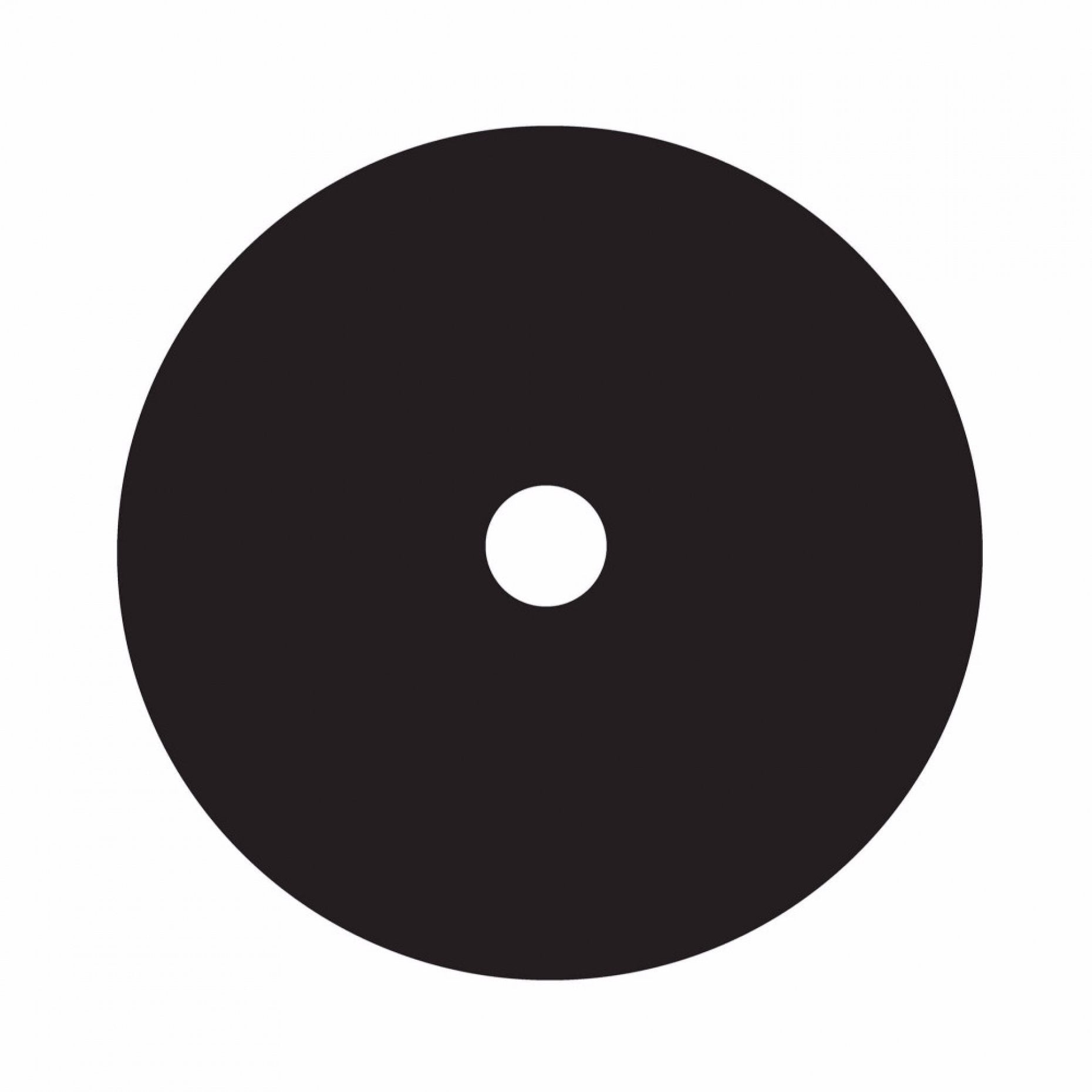

0.4mm Hole Grids

Material	Part number
Copper	1GC4H
Nickel	1GN4H
Titanium	1GT4H
Molybdenum	1GM4H
Stainless Steel	1GS4H

Pattern	Hole microns	Tolerance +/-microns
1G_4H	400	20

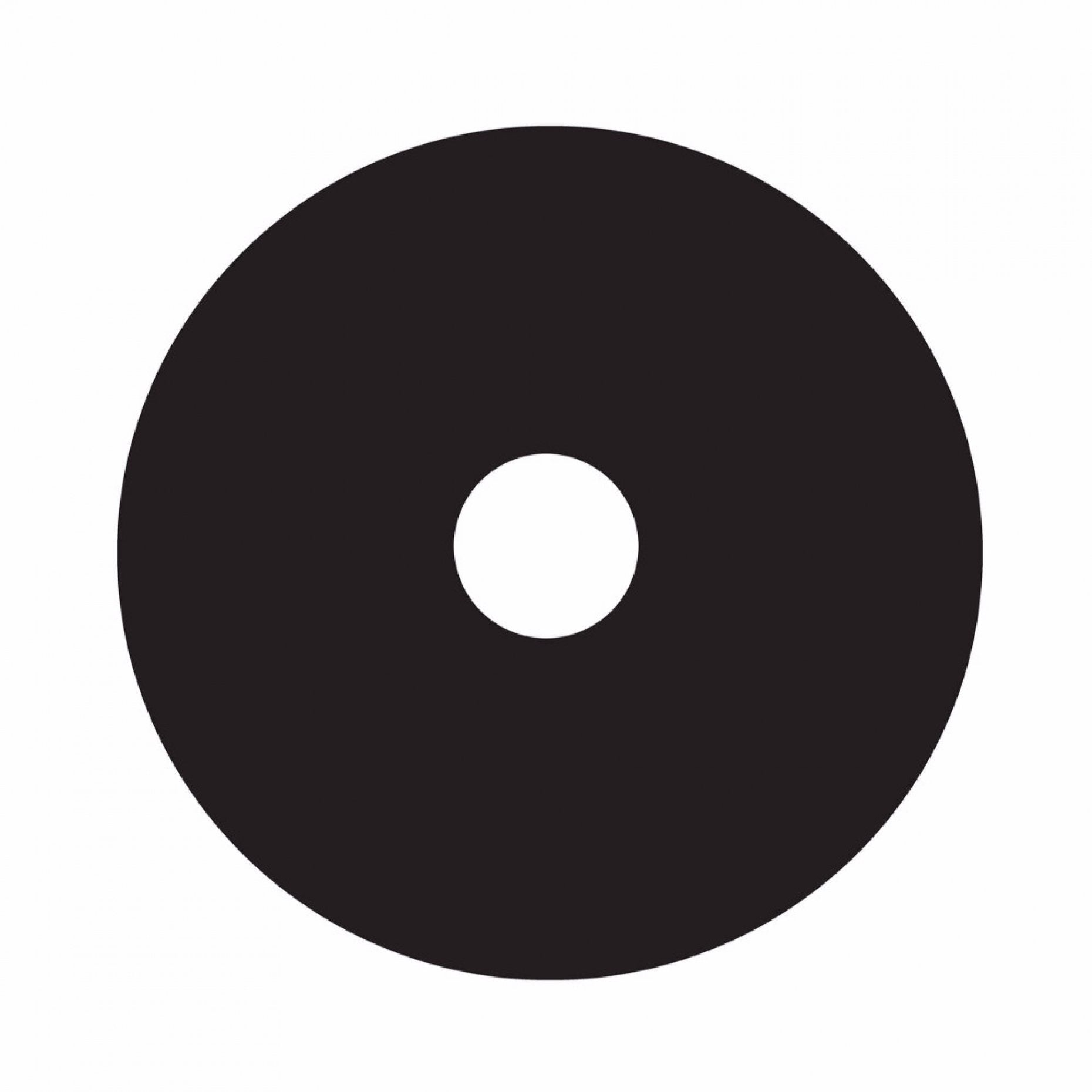

0.6mm Hole Grids

Material	Part number
Copper	1GC6H
Copper	HF48Cu
Nickel	1GN6H
Nickel	HF48Ni
Gold	1GG6H
Molybdenum	1GM6H

Pattern	Hole microns	Tolerance +/-microns
HF48_	600	10
1G_6H	600	10

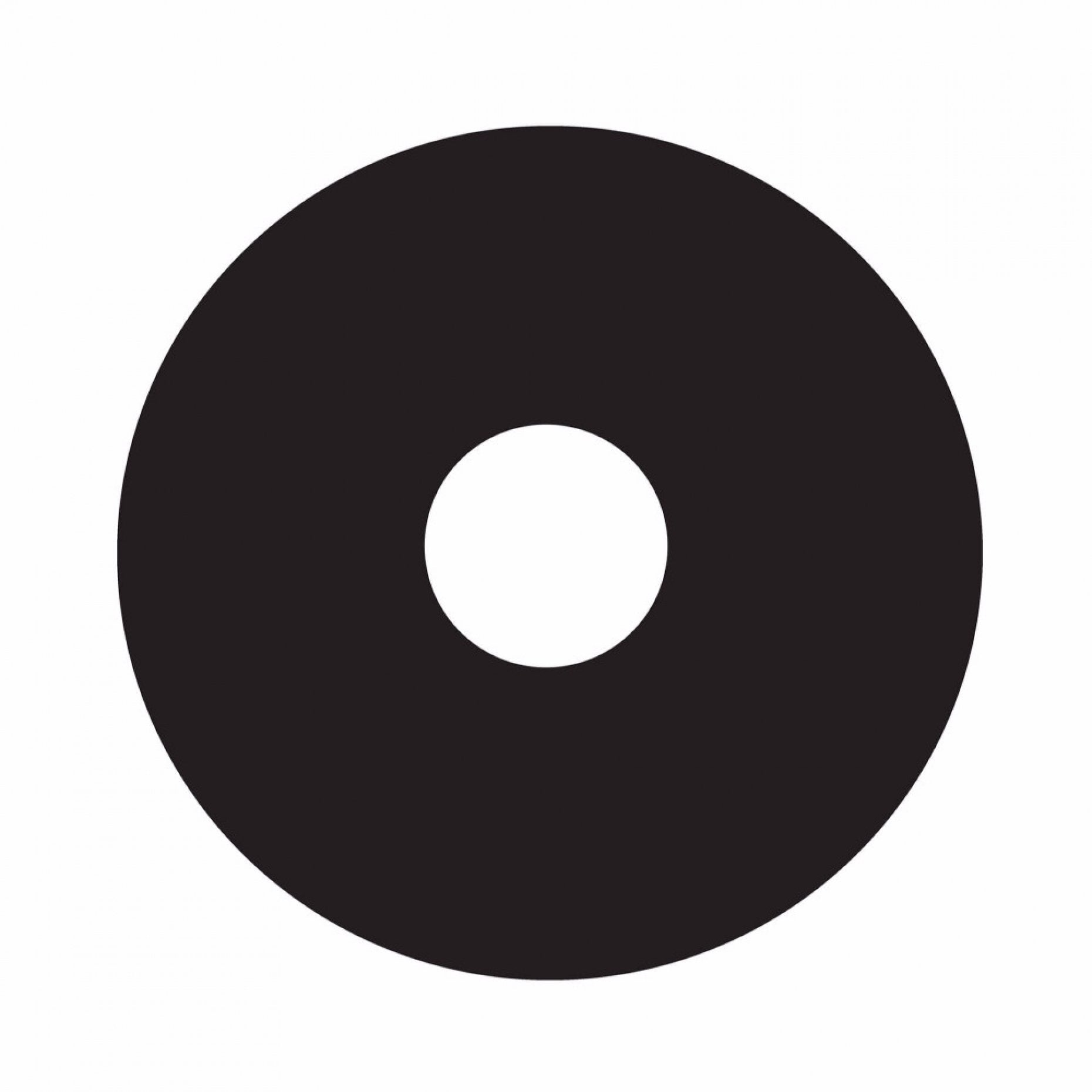

0.8mm Hole Grids

Material	Part number
Copper	1GC8H
Nickel	1GN8H

Pattern	Hole microns	Tolerance +/-microns
1G_8H	800	20

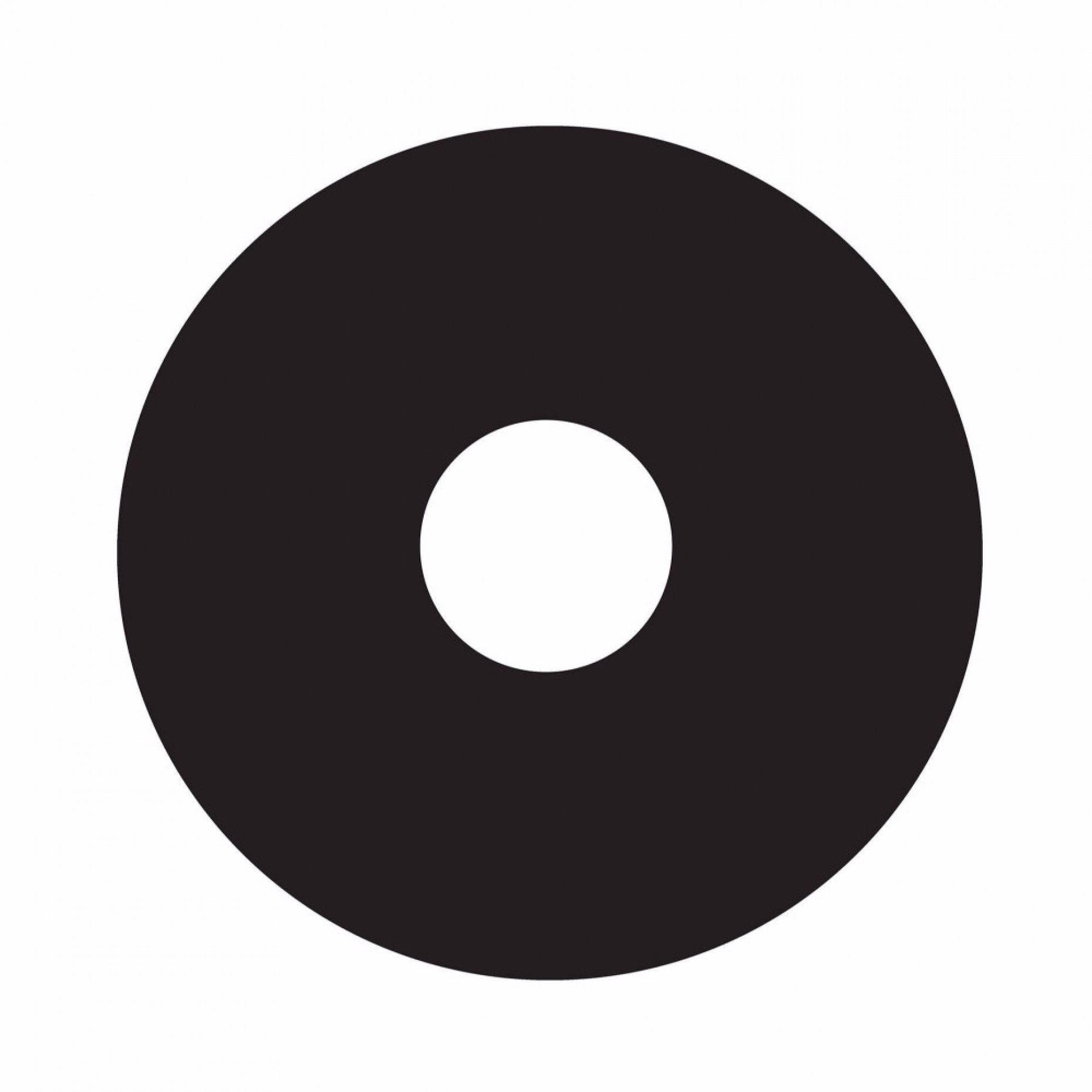

1.0mm Hole Grids

Material	Part number
Copper	1GC10H
Copper	HF47Cu
Nickel	1GN10H
Nickel	HF47Ni
Gold	1GG10H
Titanium	1GT10H
Molybdenum	1GM10H
Aluminium	1GA10H
Stainless Steel	1GS10H

Pattern	Hole microns	Tolerance +/-microns
HF47_	1000	10
1G_10H	1000	20

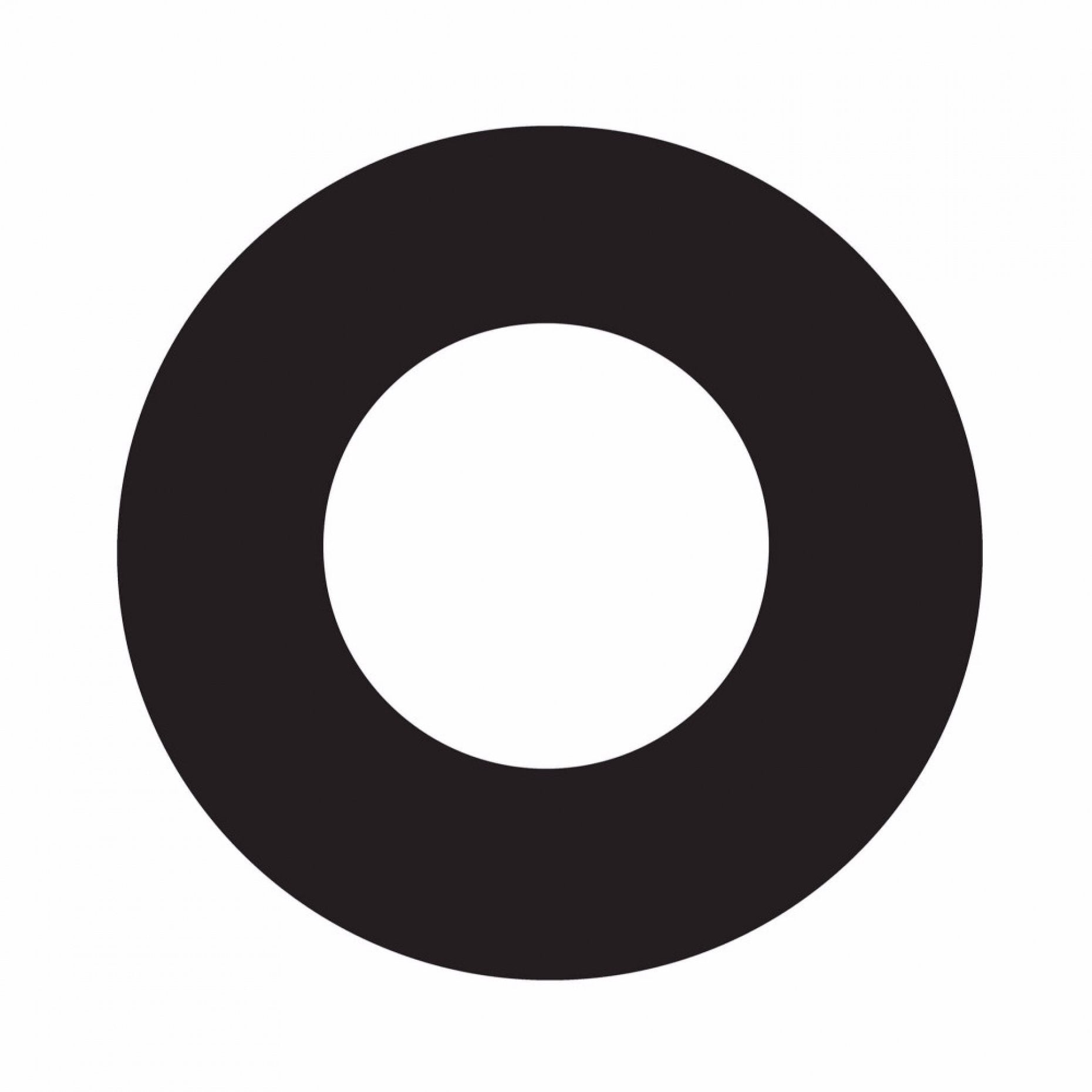

1.5mm Hole Grids

Material	Part number
Copper	1GC15H
Nickel	1GN15H
Titanium	1GT15H
Molybdenum	1GM15H
Aluminium	1GA15H
Stainless Steel	1GS15H

Pattern	Hole microns	Tolerance +/-microns
1G_15H	1500	20

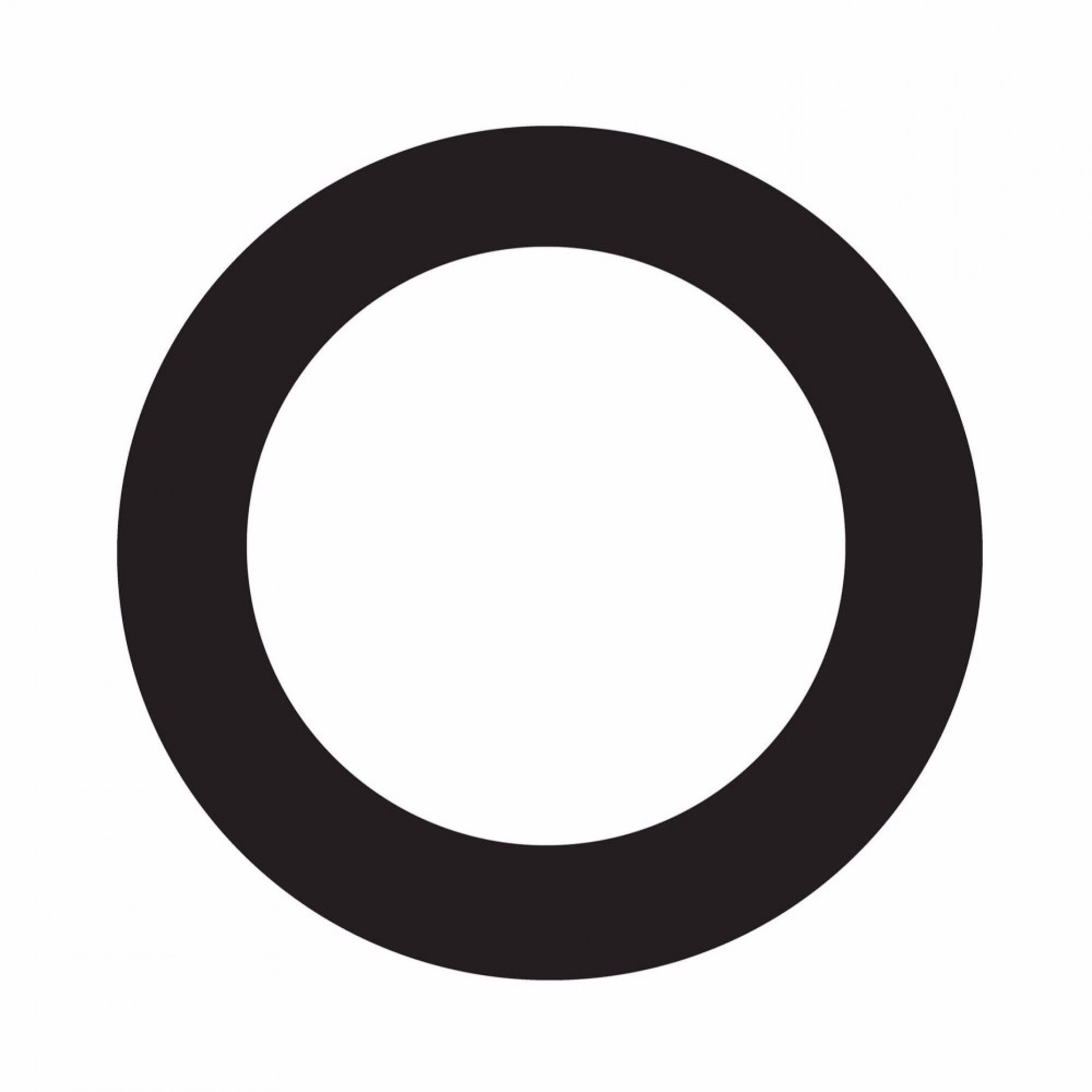

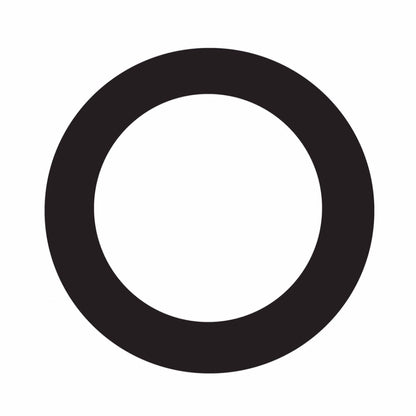

2.0mm Hole Grids

Material	Part number
Copper	1GC20H
Nickel	1GN20H

Pattern	Hole microns	Tolerance +/-microns
1G_20H	2000	20

0.2mmx0.5mm Slot Grids HF51_

Material	Part number
Copper	HF51Cu
Nickel	HF51Ni

Pattern	Hole microns	Tolerance +/-microns
HF51_	200x500	10

0.2mmx1.5mm Slot Grids HF50_

Material	Part number
Copper	HF50Cu
Nickel	HF50Ni

Pattern	Hole microns	Tolerance +/-microns
HF50_	200x1500	10

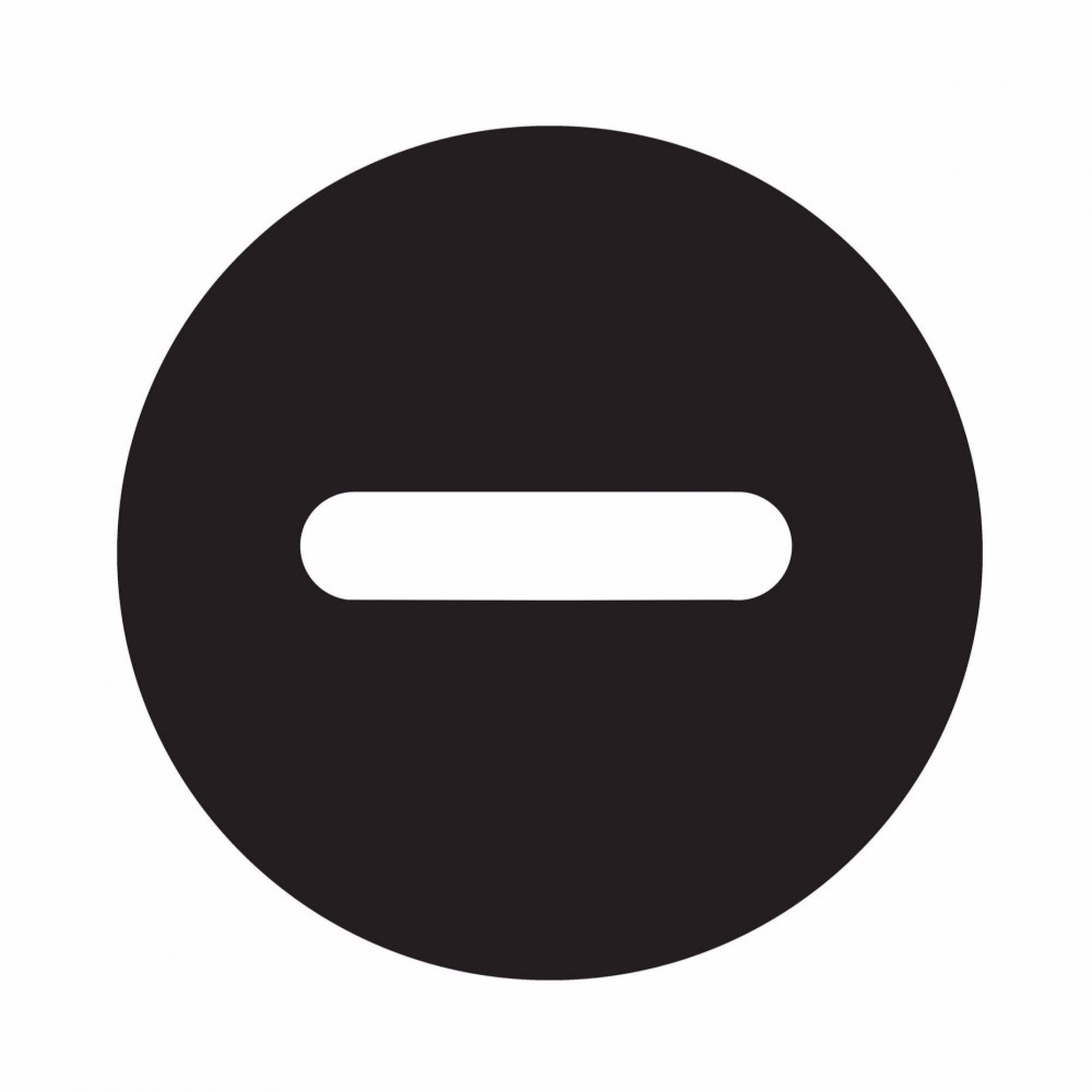

0.42mmx2.0mm Slot Grids 1G_42S

Material	Part number
Copper	1GC42S
Nickel	1GN42S
Titanium	1GT42S
Molybdenum	1GM42S
Aluminium	1GA42S
Stainless Steel	1GS42S

Pattern	Hole microns	Tolerance +/-microns
1G_42S	420x2000	20

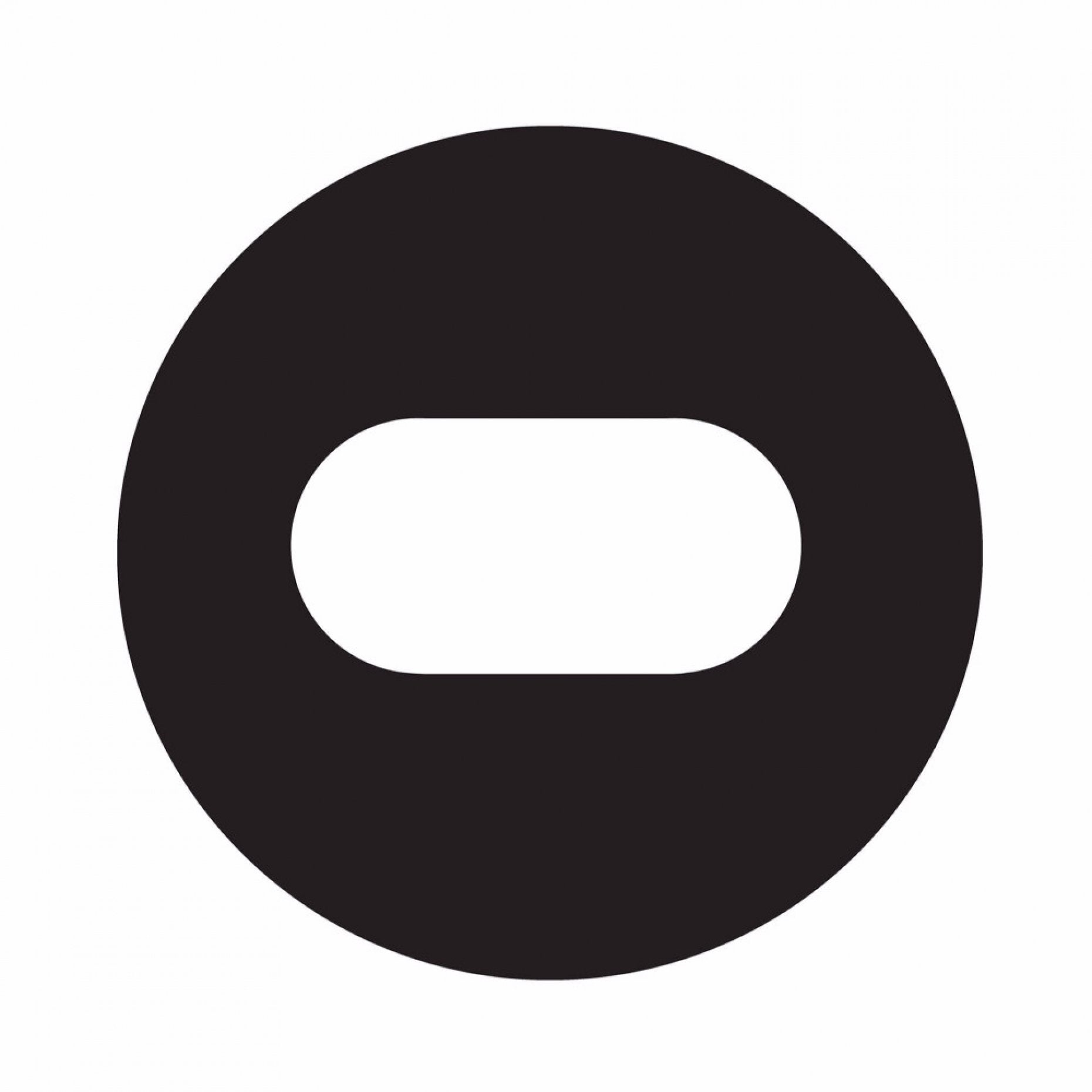

0.98mmx2.0mm Slot Grids 1G_12S

Material	Part number
Copper	1GC12S
Copper/Rhodium	1GCR12S
Nickel	1GN12S
Titanium	1GT12S
Molybdenum	1GM12S
Aluminium	1GA12S
Stainless Steel	1GS12S

Pattern	Hole microns	Tolerance +/-microns
1G_12S	980x2000	20

0.98mmx2.0mm Slot Grids HF49_

Material	Part number
Copper	HF49Cu
Copper/Rhodium	HF49Cu/Rh
Nickel	HF49Ni

Pattern	Hole microns	Tolerance +/-microns
HF49_	980x2000	10

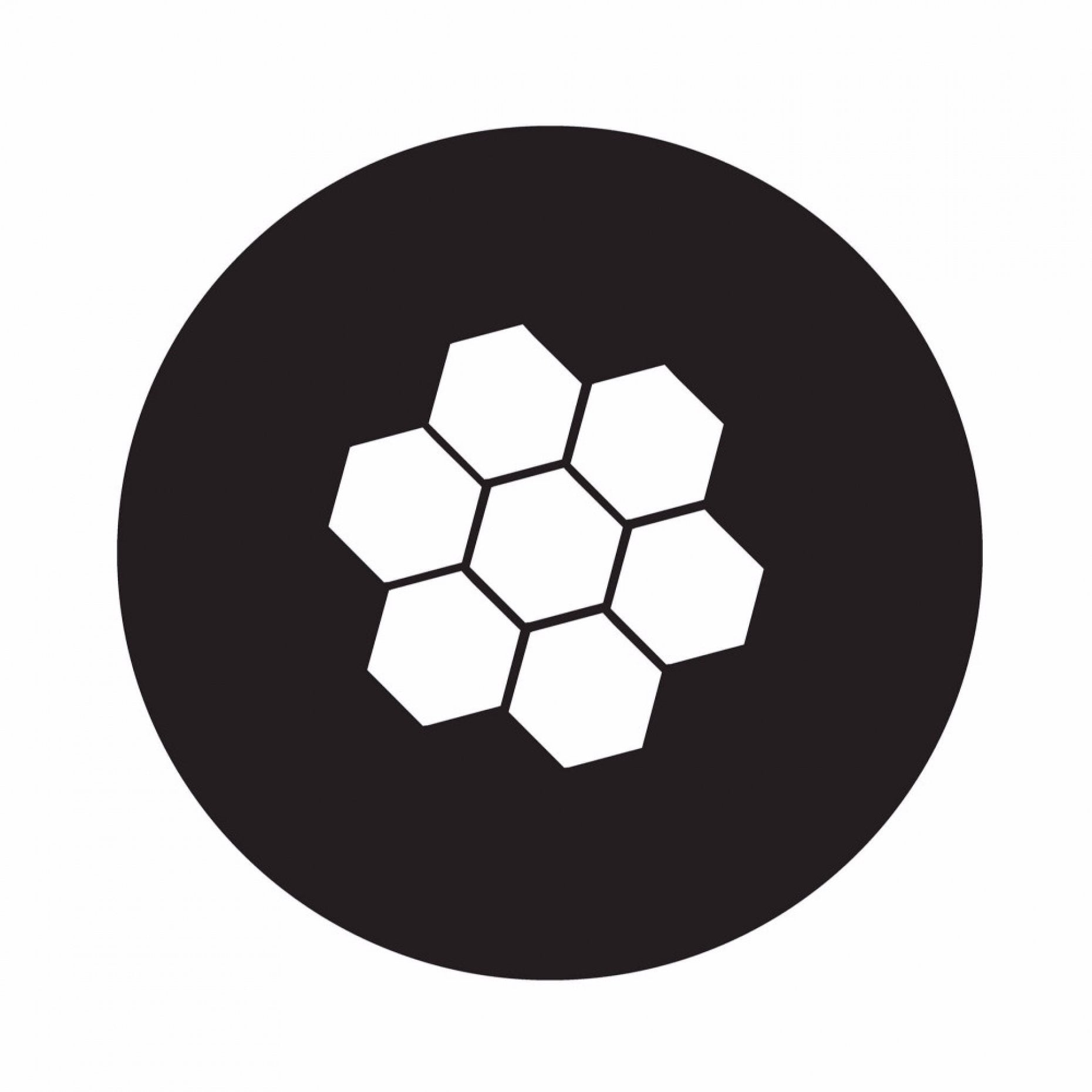

7 Hexagon Grids 1HG_7HEX

Material	Part number
Copper	1HGC7HEX
Nickel	1HGC7HEX

Pattern	Pitch microns	Mesh	Hole microns	Bar microns	Transmission %	Tolerance +/-microns
1HG_7HEX	610x690	40	525x604	85	85	20
