Soft Tapping Mode AFM Probes

Soft Tapping Mode AFM Probes



Tap150-G

Soft Tapping Mode AFM Probe

AFM Probe Specifications:

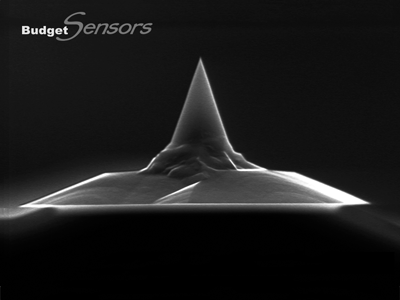

AFM Tip

Shape: Rotated
Height: 17 µm (15 - 19 µm)*
Setback: 15 µm (10 - 20 µm)*
Radius: < 10 nm
Half Cone Angle: 20°-25° along cantilever axis, 25°-30° from side, 10° at the apex

AFM Cantilever

Cantilever A
 Beam
 5 N/m (1.5 - 15 N/m)*
150 kHz (75 - 225 kHz)*
 125 µm (115 - 135 µm)*
25 µm (20 - 30 µm)*
 2.1 µm (1.1 - 3.1 µm)*
* typical range

Coating

Uncoated

Alignment Grooves

This product features alignment grooves on the back side of the holder chip.

Additional Info

Monolithic silicon AFM probe for soft tapping mode operation.

The rotated AFM tip allows for more symmetric representation of high sample features. The consistent AFM tip radius ensures good resolution and reproducibility.

The AFM holder chip fits most commercial AFM systems as it is industry standard size.

For measurements in liquids please use the back side gold coated Tap150GD-G or the overall gold coated Tap150GB-G!

Consistent high quality at a lower price!

Tap150Al-G

Soft Tapping Mode AFM Probe with Aluminum Reflective Coating

AFM Probe Specifications:

AFM Tip

Shape: Rotated
Height: 17 µm (15 - 19 µm)*
Setback: 15 µm (10 - 20 µm)*
Radius: < 10 nm
Half Cone Angle: 20°-25° along cantilever axis, 25°-30° from side, 10° at the apex

AFM Cantilever

Cantilever A
 Beam
 5 N/m (1.5 - 15 N/m)*
150 kHz (75 - 225 kHz)*
 125 µm (115 - 135 µm)*
25 µm (20 - 30 µm)*
 2.1 µm (1.1 - 3.1 µm)*
* typical range

Coating

Aluminium reflex coating on detector side of the cantilever, 30 nm thick

Alignment Grooves

This product features alignment grooves on the back side of the holder chip.

Additional Info

Monolithic silicon AFM probe for soft tapping mode operation.

The rotated AFM tip allows for more symmetric representation of high sample features. The consistent AFM tip radius ensures good resolution and reproducibility.

The AFM holder chip fits most commercial AFM systems as it is industry standard size.

For measurements in liquids please use the back side gold coated Tap150GD-G or the overall gold coated Tap150GB-G!

Consistent high quality at a lower price!

Tap150Al-G

Soft Tapping Mode AFM Probe with Gold Reflective Coating

AFM Probe Specifications:

AFM Tip

Shape: Rotated
Height: 17 µm (15 - 19 µm)*
Setback: 15 µm (10 - 20 µm)*
Radius: < 10 nm
Half Cone Angle: 20°-25° along cantilever axis, 25°-30° from side, 10° at the apex

AFM Cantilever

Cantilever A
 Beam
 5 N/m (1.5 - 15 N/m)*
150 kHz (75 - 225 kHz)*
 125 µm (115 - 135 µm)*
25 µm (20 - 30 µm)*
 2.1 µm (1.1 - 3.1 µm)*
* typical range

Coating

Gold coating on detector side of the cantilever, 70 nm thick

Alignment Grooves

This product features alignment grooves on the back side of the holder chip.

Additional Info

Monolithic silicon AFM probe for soft tapping mode operation.

The rotated AFM tip allows for more symmetric representation of high sample features. The consistent AFM tip radius ensures good resolution and reproducibility.

The AFM holder chip fits most commercial AFM systems as it is industry standard size.

Consistent high quality at a lower price!

Documentation

SDS

Technical Notes

View full details
Variant Variant total Quantity Price Variant total
TAP150-G AFM Probe for Soft Tapping Mode, uncoated, alignment grooves (Unit: pkg/10)Tap150-G-10
TAP150-G AFM Probe for Soft Tapping Mode, uncoated, alignment grooves (Unit: pkg/10)Tap150-G-10
1.101,44 lei/ea		 0,00 lei
1.101,44 lei/ea 0,00 lei
TAP150-G AFM Probe for Soft Tapping Mode, uncoated, alignment grooves (Unit: pkg/50)Tap150-G-50
TAP150-G AFM Probe for Soft Tapping Mode, uncoated, alignment grooves (Unit: pkg/50)Tap150-G-50
4.829,38 lei/ea		 0,00 lei
4.829,38 lei/ea 0,00 lei
TAP150-G AFM Probe for Soft Tapping Mode, uncoated, alignment grooves (Unit: pkg/380)Tap150-G-380
TAP150-G AFM Probe for Soft Tapping Mode, uncoated, alignment grooves (Unit: pkg/380)Tap150-G-380
25.417,80 lei/ea		 0,00 lei
25.417,80 lei/ea 0,00 lei
TAP150Al-G AFM Probe for Soft Tapping Mode, Al reflex coating, alignment grooves (Unit: pkg/10)Tap150Al-G-10
TAP150Al-G AFM Probe for Soft Tapping Mode, Al reflex coating, alignment grooves (Unit: pkg/10)Tap150Al-G-10
1.157,92 lei/ea		 0,00 lei
1.157,92 lei/ea 0,00 lei
TAP150Al-G AFM Probe for Soft Tapping Mode, Al reflex coating, alignment grooves (Unit: pkg/50)Tap150Al-G-50
TAP150Al-G AFM Probe for Soft Tapping Mode, Al reflex coating, alignment grooves (Unit: pkg/50)Tap150Al-G-50
5.055,32 lei/ea		 0,00 lei
5.055,32 lei/ea 0,00 lei
TAP150Al-G AFM Probe for Soft Tapping Mode, Al reflex coating, alignment grooves (Unit: pkg/380)Tap150Al-G-380
TAP150Al-G AFM Probe for Soft Tapping Mode, Al reflex coating, alignment grooves (Unit: pkg/380)Tap150Al-G-380
25.417,80 lei/ea		 0,00 lei
25.417,80 lei/ea 0,00 lei
TAP150Al-G AFM Probe for Soft Tapping Mode, Au reflex coating, alignment grooves (Unit: pkg/10)Tap150GD-G-10
TAP150Al-G AFM Probe for Soft Tapping Mode, Au reflex coating, alignment grooves (Unit: pkg/10)Tap150GD-G-10
1.468,58 lei/ea		 0,00 lei
1.468,58 lei/ea 0,00 lei
TAP150Al-G AFM Probe for Soft Tapping Mode, Au reflex coating, alignment grooves (Unit: pkg/50)Tap150GD-G-50
TAP150Al-G AFM Probe for Soft Tapping Mode, Au reflex coating, alignment grooves (Unit: pkg/50)Tap150GD-G-50
6.100,27 lei/ea		 0,00 lei
6.100,27 lei/ea 0,00 lei
