Basic EDS Quality Control Test Standard

Basic EDS Quality Control Test Standard

WHEN NOT IN USE, THE STANDARD SHOULD BE STORED UNDER VACUUM OR IN A SUITABLE DESICCATOR IN A TEMPURATURE CONTROLLED ENVIRONMENT

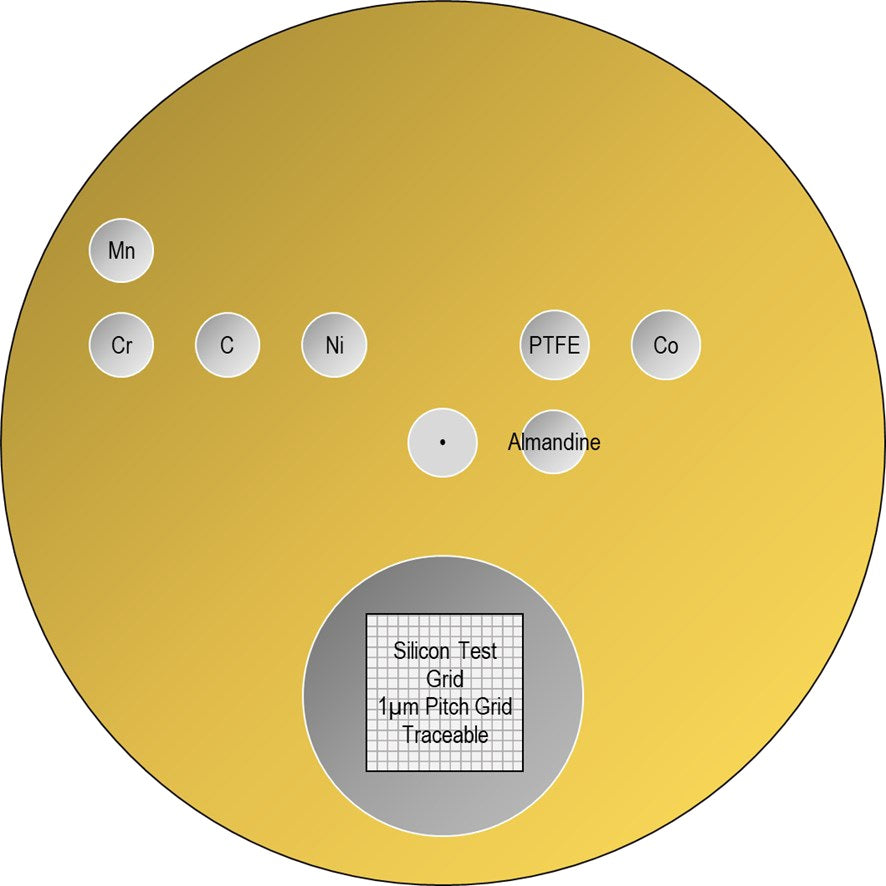

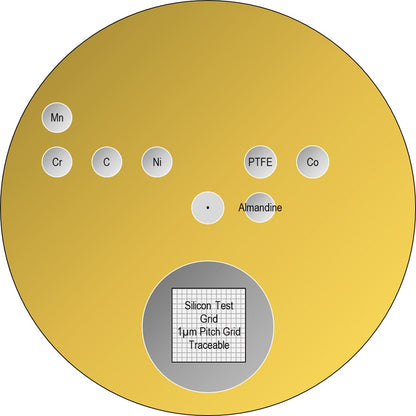

This Standard contains the following:
• Manganese used for Detector resolution (FWHM)
• Chromium used for Detector sensitivity / contamination
• Carbon used for Beam measurement & energy calibration (Low)
• Nickel used for Detector sensitivity / contamination
• Cobalt used for Beam measurement & energy calibration
• Almandine (mineral) used for Quant. verification
• 150 μm Faraday cup used for Beam current stability
• Silicon Test Grid used for Magnification calibration & image distortion

A version of this standard is also available with a certified AISI316 Stainless Steel as the Quant verification material instead of Almandine

Supplied in a specially designed storage/transportation case that contains:
• The standard—protected by an additional specially designed case
• A full electronic booklet on a USB, containing:
• The standard plan/layout
• Certificates of analysis or conformance for each material
• Details on storage and care of your standards
• Certificate of final inspection & recommended re-polishing date
• A replaceable silica gel capsule for protection whilst in transit
• A credit card sized quick reference guide
A copy of the electronic booklet is also accessible from our cloud storage.

Documentation

SDS

Technical Notes

🚚 Estimated Delivery: 5 - 6 weeks from payment confirmation

View full details
Variant Variant total Quantity Price Variant total
Basic EDS Quality Control Test Standard on 25mm Ø x 5mm Brass mount, polished and Carbon coated, with Almandine, including a 150μm Molybdenum Faraday Cup (Unit: each)EDX-CAL
Basic EDS Quality Control Test Standard on 25mm Ø x 5mm Brass mount, polished and Carbon coated, with Almandine, including a 150μm Molybdenum Faraday Cup (Unit: each)EDX-CAL
10.066,25 lei/ea		 0,00 lei
10.066,25 lei/ea 0,00 lei
Basic EDS Quality Control Test Standard on 25mm Ø x 5mm Brass mount, polished and Carbon coated, with AISI316 S/S, including a 150μm Molybdenum Faraday Cup (Unit: each)EDX-CAL316
Basic EDS Quality Control Test Standard on 25mm Ø x 5mm Brass mount, polished and Carbon coated, with AISI316 S/S, including a 150μm Molybdenum Faraday Cup (Unit: each)EDX-CAL316
10.066,25 lei/ea		 0,00 lei
10.066,25 lei/ea 0,00 lei
