Minitool™ to Micro-Tool Cross Reference Table
General Advice for Selecting a Diamond Scribe
General Purpose Scribing Tools
these instruments can be used for general scribing and cleaving all types of materials
Deluxe Diamond Scribing Pen
formerly from the Minitool™ line of precision tools and scribers
54468
Deluxe Diamond Scribing Pen
54469
Diamond Refill
High-quality precision diamond scribing tool from the former Minitool™ line of products in a durable chromium pen housing. Screw-type precision mechanism works smoothly and diamond mounting (quality industrial diamond tip) is firmly affixed when exposed; no wobble. Twist-type barrel exposes or retracts diamond tip. Refills available. Diamond is ground and lapped to a 60° included angle. Overall length is 133mm, weight is 26 grams.
General Advice for Selecting a Diamond Scribe
Diamond Scriber
formerly from the Minitool™ line of precision tools and scribers
54460
Pen-like aluminum handle with a robust 60° conical diamond tip. Marks glass slides, scribes for breaking wafers, glass, and glass knives. After scribing, glass or wafers can be broken easily with the help of Wafer Cleaving/Glass Breaking Pliers.
Glascribe®
829
Clips to pocket like a ballpoint pen. Retractable tungsten carbide tip to scribe on glass, ceramics and plastics. Tip included angle: 40°; Shaft diameter: 1.55mm (0.061"); Tip length (angled area): 2.13mm (0.084"); Shaft length from pen body: 4.24mm (0.167"); overall length 133mm (5-1/4").

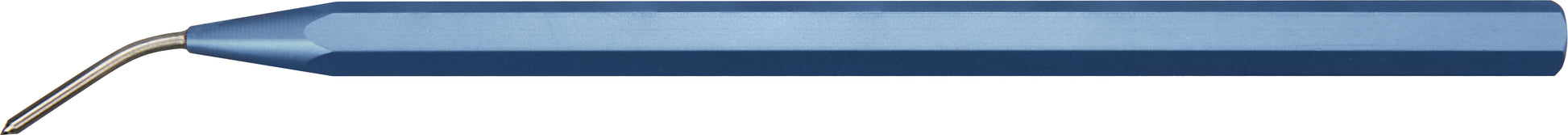

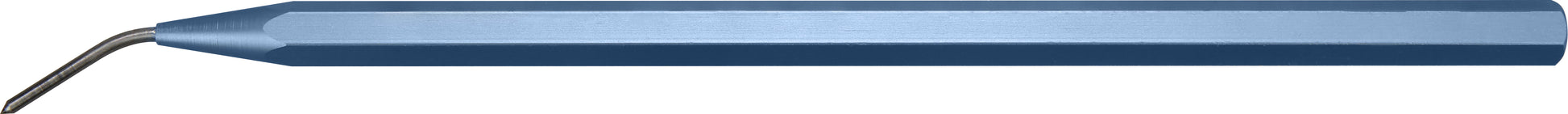

Hexagonal Aluminum Handles with Polished Diamond Tips
formerly from the Minitool™ line of precision tools and scribers
54482
54483
54484
54487
These general purpose scribing tools are suited to a wide range of industrial and laboratory use. Each of these high-quality hand-held tools is equipped with a conical ground and polished quality industrial diamond that is vacuum bonded to a 1.57mm (0.062") diameter steel tip shaft. Scribes create fine lines in a wide range of materials, from metals to silicon to plastics to glass. A scored line in glass can be broken easily with the help of Wafer Cleaving / Glass Breaking Pliers.
The unique high-precision tips of these scribers allow greater accessibility to smaller work areas and make it possible to continuously view what is being scribed. They are ideal for applications that require very low tolerances.
General Advice for Selecting a Diamond Scribe
LatticeScriber™
54351
The LatticeScriber™ is the optimal tool for scribing silicon, III-V semiconductors, and similar materials. The scribe tip is an 8-point diamond, allowing flexibility to meet demanding scribing requirements and long tool life.
Diamond Wheel Cutter, Standard
54368
General purpose diamond wheel cutter. Good for hard glass 0.3-3mm. This cutter is best for harder materials such as hard glass, LCD, sapphire, quartz glass and ceramic. Wheel cutters produce a cleaner scribe line than point scribes and minimize the number of particles generated. Plastic handle is 5" long.
Diamond Wheel Cutter, Laser
54369
In this diamond wheel cutter, Laser refers to the profile applied to the wheel. This allows for a non-slip start and deeper scoring. This cutter excels at cutting thin glass (as fine as 0.03mm), LCD, half-tempered glass, sapphire, quartz glass, ceramic, glass tubes and standard silicon substrates. Wheel cutters produce a cleaner scribe line than point scribes and minimize the number of particles generated. Plastic handle is 5" long.
Laser Diamond Wheel (#54369)
Standard Diamond Wheel (#54368)
Carbide Wheel Cutter, Standard
54365
General purpose tungsten carbide cutter for glass, silicon, and other crystalline materials. Suitable for glass 0.3-1.5mm and hard glass 0.3-6mm. Wheel cutters produce a cleaner scribe line than pointed scribe, minimizing the number of particles produced. Plastic handle is 5" long.
Carbide Wheel Cutter, Deep Cutting
54353
Wider angle tungsten carbide cutter for glass, silicon, and other crystalline materials. Suitable for glass 3-10mm thick and cutting silicon off axis. Wheel cutters produce a cleaner scribe line than pointed scribe, minimizing the number of particles produced. Plastic handle is 5" long.
Carbide Wheel Cutter, Laser
54366
In this carbide wheel cutter, Laser refers to the profile applied to the wheel. This allows for a non-slip start and deeper scoring. Good for glass 0.1-2mm and hard glass 0.3-2mm. This cutter excels at cutting thin glass, hard glass, quartz, silicon and III-V semiconductors. Wheel cutters produce a cleaner scribe line than point scribes and minimize the number of particles generated. Plastic handle is 5" long.
Carbide Wheel Cutter, Laser, Ultra-thin
54352
Laser refers to the profile applied to the wheel. This allows for a non-slip start and deeper scoring. For this cutter, a sharper tip angle allows for a narrower scribe line. Good for very thin glass 0.03mm up to 2mm and hard glass 0.3-2mm. This cutter excels at cutting ultra-thin glass, as well as hard glass, quartz, silicon and III-V semiconductors. Wheel cutters produce a cleaner scribe line than point scribes and minimize the number of particles generated. Plastic handle is 5" long.
Precision Diamond Marker Scriber Set
54410
handle with eight replaceable, threaded tips and a hardwood storage case
These professional scribing tools, formerly from the Minitool™ line of precision tools, are used in the electronics industry for scribing or marking of delicate components or any other scribing tasks calling for precision work. All scribing tools have hardness-oriented, quality, industrial diamonds for outstanding performance. A 60° included angle is standard. Diamond configuration: all diamond bases are 0.25mm (0.01") diameter with a final tip radius of 5µm. Depth of diamond (tip to base) is 0.15mm (0.006"). Thread is 8-32.
Tools are available in straight or bent tip configuration with a variety of shaft diameters and tip lengths but the actual diamonds are consistent in size.
Wood box contains one each of all the tips offered (see below for details).
54411 Handle with 54413 Tip
| Prod. No. | Dimensions | |
|---|---|---|
 |
54412 | Shaft: 0.81mm (0.032") dia.; Tip: 0.50mm (0.020") dia. x 1.5mm (0.060") length |
 |
54413 | Shaft: 0.81mm (0.032") dia.; 30° angle; Tip: 0.50mm (0.020") dia. x 1.5mm (0.060") length |
 |
54414 | Shaft: 0.81mm (0.032") dia.; Fine Tip: 0.25mm (0.010") dia. x 1.5mm (0.060") length |
 |
54415 | Shaft: 0.81mm (0.032") dia.; 30° angle; Fine Tip: 0.25mm (0.010") dia. x 1.5mm (0.060") length |
 |
54416 |
Shaft: 0.81mm (0.032") dia.; Tip: 0.50mm (0.020") dia. x 5mm (0.200") length Useful for reaching into and in between high density commponents. |
 |
54417 | Shaft: 0.81mm (0.032") dia.; 30° angle; Tip: 0.50mm (0.020") dia. x 5mm (0.200") length; Useful for reaching into tight places. |
 |
54418 | Heavy Duty Shaft: 1.27mm (0.050") dia.; Tip: 0.84mm (0.033") dia. x 3.18mm (0.125") length |
 |
54419 | Heavy Duty Shaft: 1.27mm (0.050") dia.; 30° angle; Tip: 0.84mm (0.033") dia. x 3.18mm (0.125") length |
Fine Point Diamond Scriber (Straight or Bent)
54464, 54465, 54466, 54467
Applications include scribing under a microscope, precision scribing and repairing thin film circuits, micro circuits, small circuit boards or integrated circuits. This fine point scribe (0.005" radius) may also be used to clean or trim circuits or break or build up new lines.
High Precision Pin Vise Handle & Precision Ground Diamond Scribes
formerly from the Minitool™ line of precision tools and scribers
13662 (13663 to 13668, 13662-5, 13662-6, 13662-10)
Handle and Scribes sold separately
This High Precision Pin Vise Handle is machined from the finest materials. It is lightweight and versatile, with a precision tool steel drawbar for positive collet chuck clamping. The 8mm (0.31") wide aluminum hexagonal barrel 100mm (4") long, overall length is 115mm (4.53") fully assembled, has a knurled finger grip for positive precision control in handling and tool manipulation. Supplied with a standard collet chuck bore diameter 2mm (0.078") and small collet adapter bore diameter 0.8mm (0.030") for diamond stylus chucking (diamond stylus is shown in photo above but must be ordered separately, see #13663 through #13668 below).
Precision Ground Diamond Scribe (fits handle above) 60° included angle, 0.25mm and 0.5mm tip diameters each with a 0.8mm dia. mounting shaft. Tip radius 0.0005" (0.013mm) on both diameters.
Optical Fiber Cleaving Tools
formerly from the Minitool™ line of precision tools, these precision hand-held instruments can be used for scoring and cleaving all types of optical fiber
Retractable Diamond Cleaver
54452-2
Diamond Tip Detail
The Retractable Diamond Cleaver is retained in a quality metal casing with pocket clasp. Ground and polished natural diamond has a 90° included angle with a relief angle of 30°. Specifications: 1.5 x 3mm (0.06 x 0.12") Overall Length, 133mm (5-1/4").
Carbide Cleaver
54452-4
The Carbide Cleaver is made from a solid carbide rod. It has two angled sides that intersect into a very sharp cutting edge of about 4mm in length. A third angle is lapped on the very tip to prevent breakage. Carbide is mounted into a non-rolling hexagon shaped anodized aluminum holder. Specifications: 2.0 x 10mm (0.08 x 0.4" Overall Length, 120mm (4-3/4").
Sapphire Burnishing Tool
54446
outperforms any stone for finest burnishing
The Sapphire Burnishing Tool, formerly from the Minitool™ line of precision tools, is indispensable for delicate burnishing of fine instrument parts such as miniature pivot points, shafting and probes. Materials can be hard steel, carbide, glass and ceramics. It may also be used for deburring of soft and hard materials.
The precision ground sapphire (ground on all five exposed surfaces) is mounted in a non-rolling (the tool won't roll off the bench) hexagonal gold anodized aluminum holder. It is sold in a plastic storage and shipping container, one tool per container.
Specifications
Material: ground sapphire
Sapphire dimensions: 1.5 x 2.3 x 14mm exposed sapphire (0.06 x 0.09 x 0.56")
Mounting: structural epoxy
Overall length: 120mm (4.72")
