S9 Stage Counting Grid 0.1mm Squares
S9 Stage Counting Grid 0.1mm Squares
Pattern
S9
Description
Stage Counting Grid 0.1mm Squares
Key features

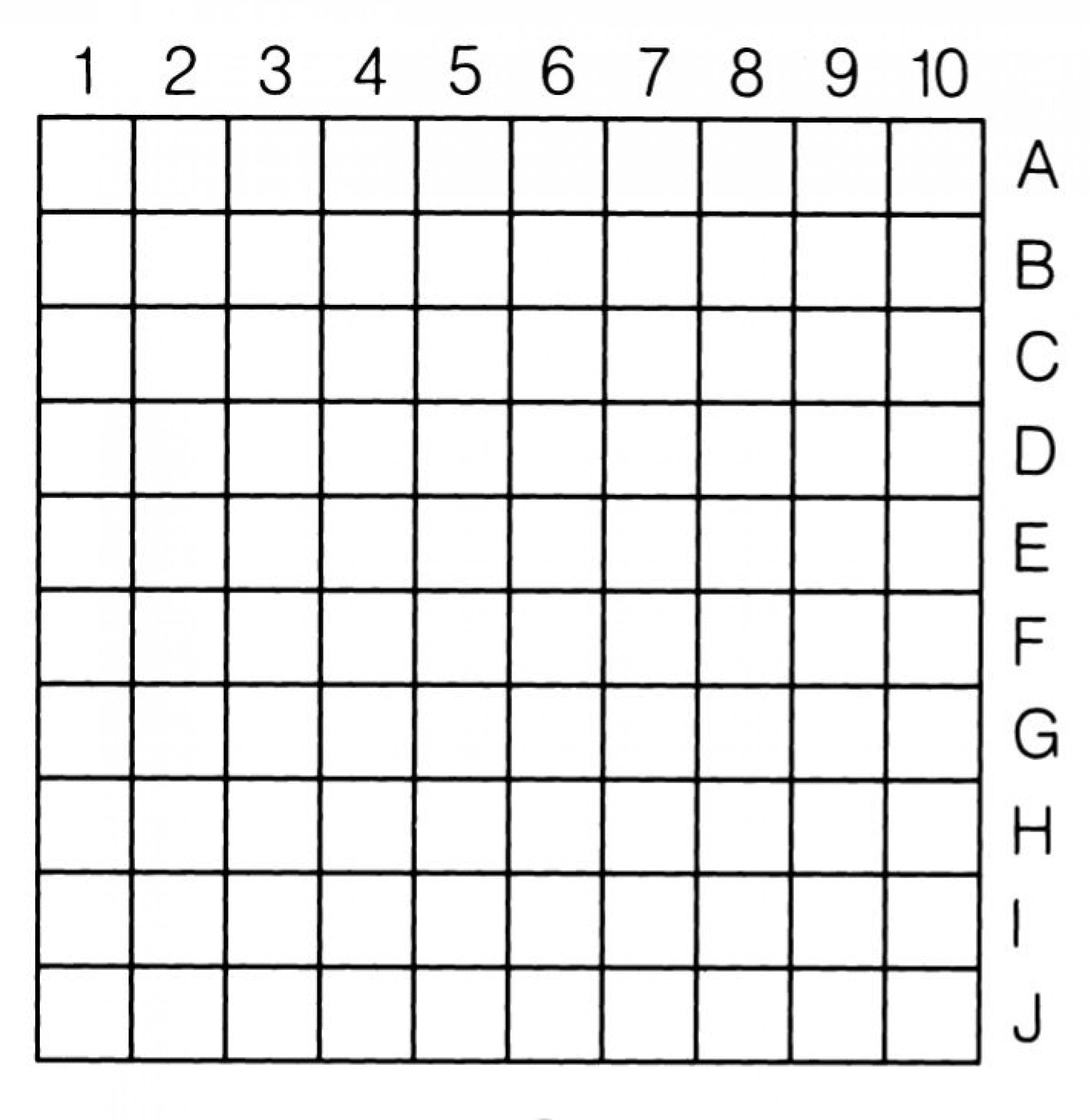

Counting Grid slide with 10x10 Grid of 0.1mm (100µm) squares.
For Transmitted Light.
Order code
02A00405
Line Thickness
0.005mm
Glass Type and Thickness
B270 1mm thick
Overall Tolerance
+/-0.002mm
Mount

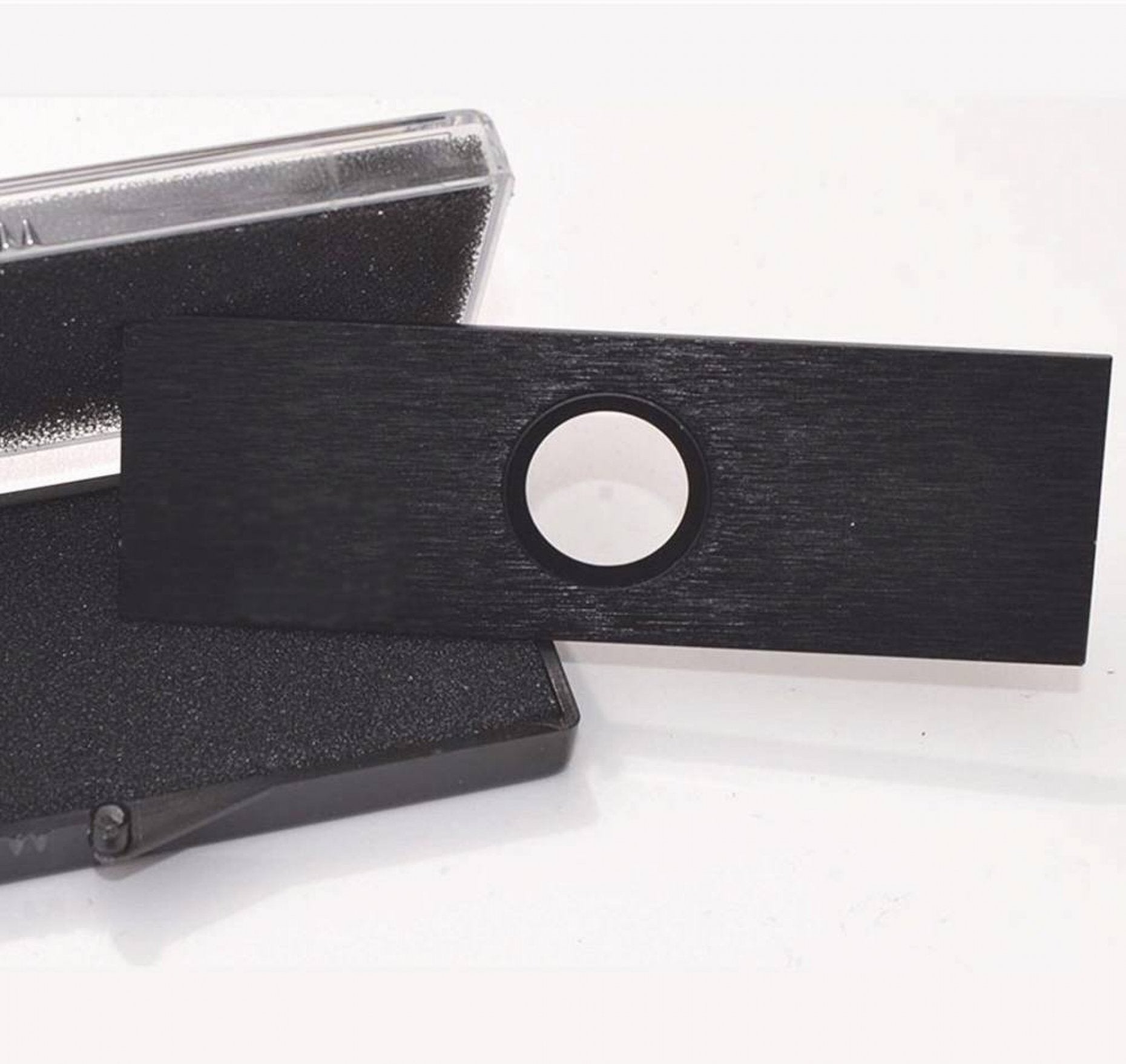

Black Anodised Aluminium Slide (76mm x 25mm x 1.5mm)
Orientation
Correct on top surface
