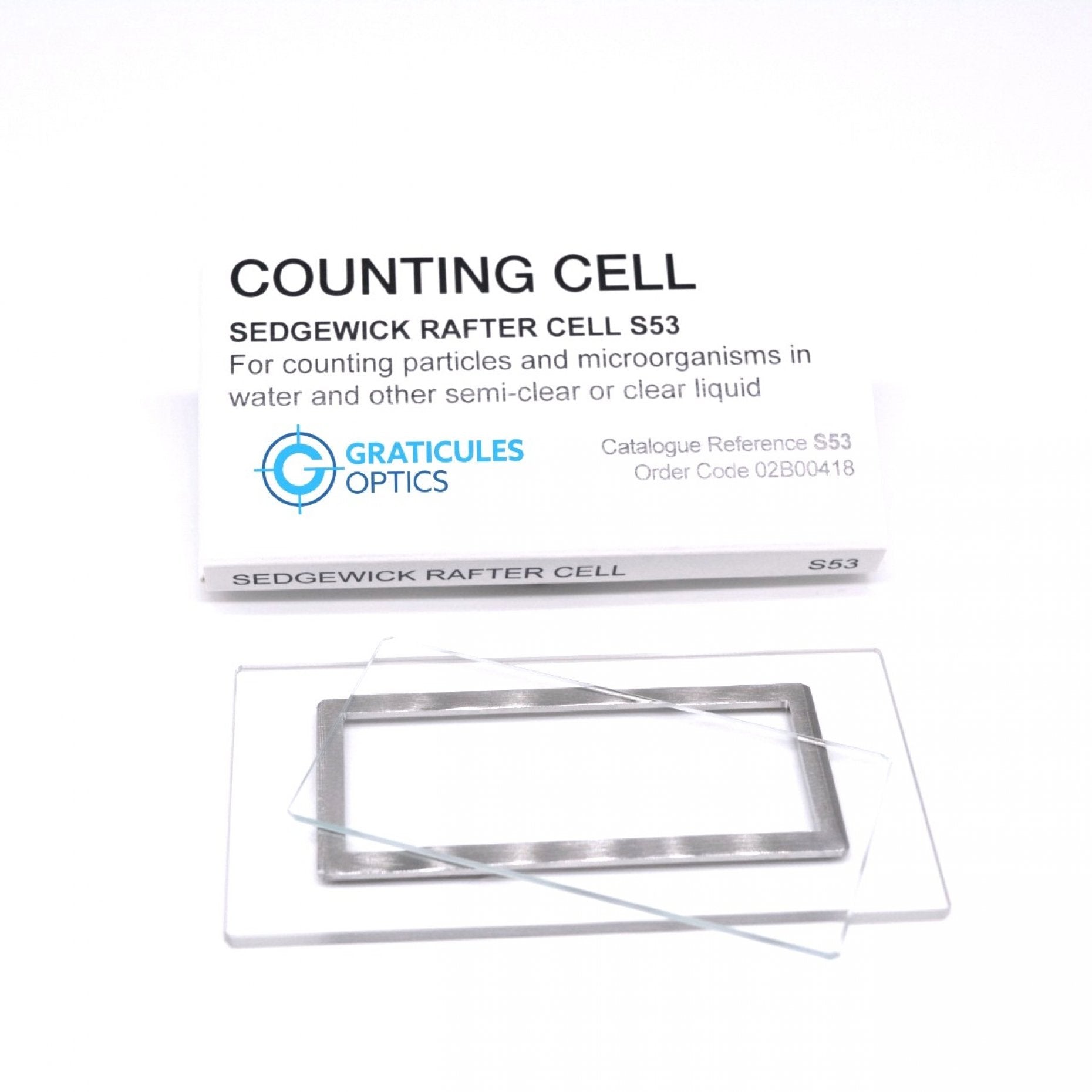

Reusable tool for the professional user. For many applications, particularly where larger plankton are being analysed, there is no requirement for a counting grid printed onto the slide, hence the introduction of this slide with a plain glass base. This chamber can be used with either upright or inverted microscopes.

The S53 can be used in conjunction with an eyepiece reticle, such as a Whipple grid (NE29), where detailed counting/sizing is required.


Overall Dimensions

76mm x 40mm x 2mm thick

Chamber Dimensions

50mm x 20mm x 1mm deep

Volume

1ml
