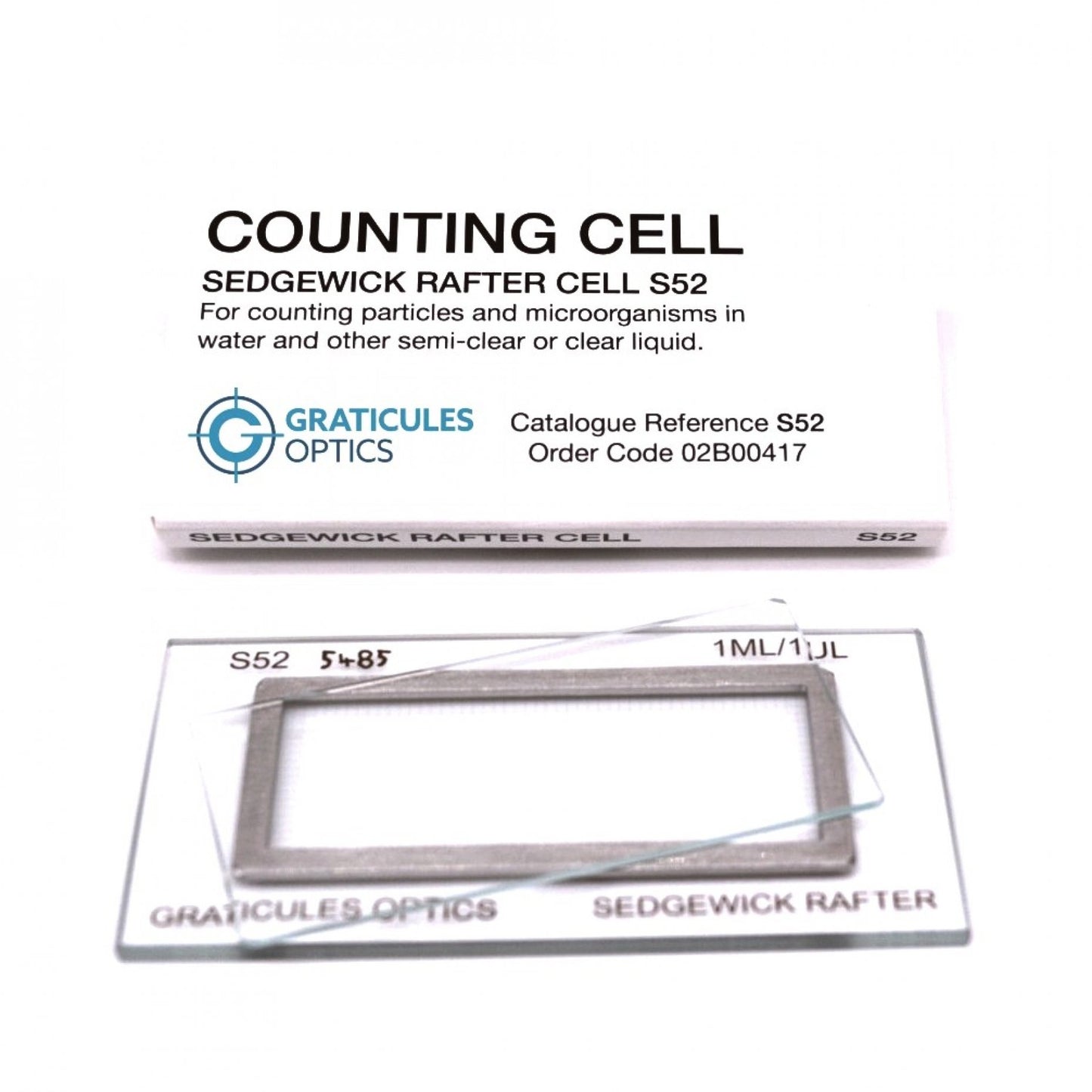

Reusable tool for the professional user. The cell is made of high quality optical glass with a chromium surface image. It is intended for continued professional use and whenever using phase contrast. Used widely in water analysis, culture inspection and for other applications where particles per unit volume in fluid must be determined.

Overall Glass Dimensions

76mm x 40mm x 2.28mm thick

Chamber DImensions

50mm x 20mm x 1mm deep

Volume

1ml

Usage Note

When using Lugols, we advise to clean the cells as soon as the analysis is complete and dry them thoroughly, preferably without heat (as thermal coefficient of glass and metal frame are different). This will help extend their life. Obviously the use of any acids or solvents could cause breakdown of the cement used.
