S29 Counting Grid 0.01mm Squares, 1.5x1.5mm overall
S29 Counting Grid 0.01mm Squares, 1.5x1.5mm overall

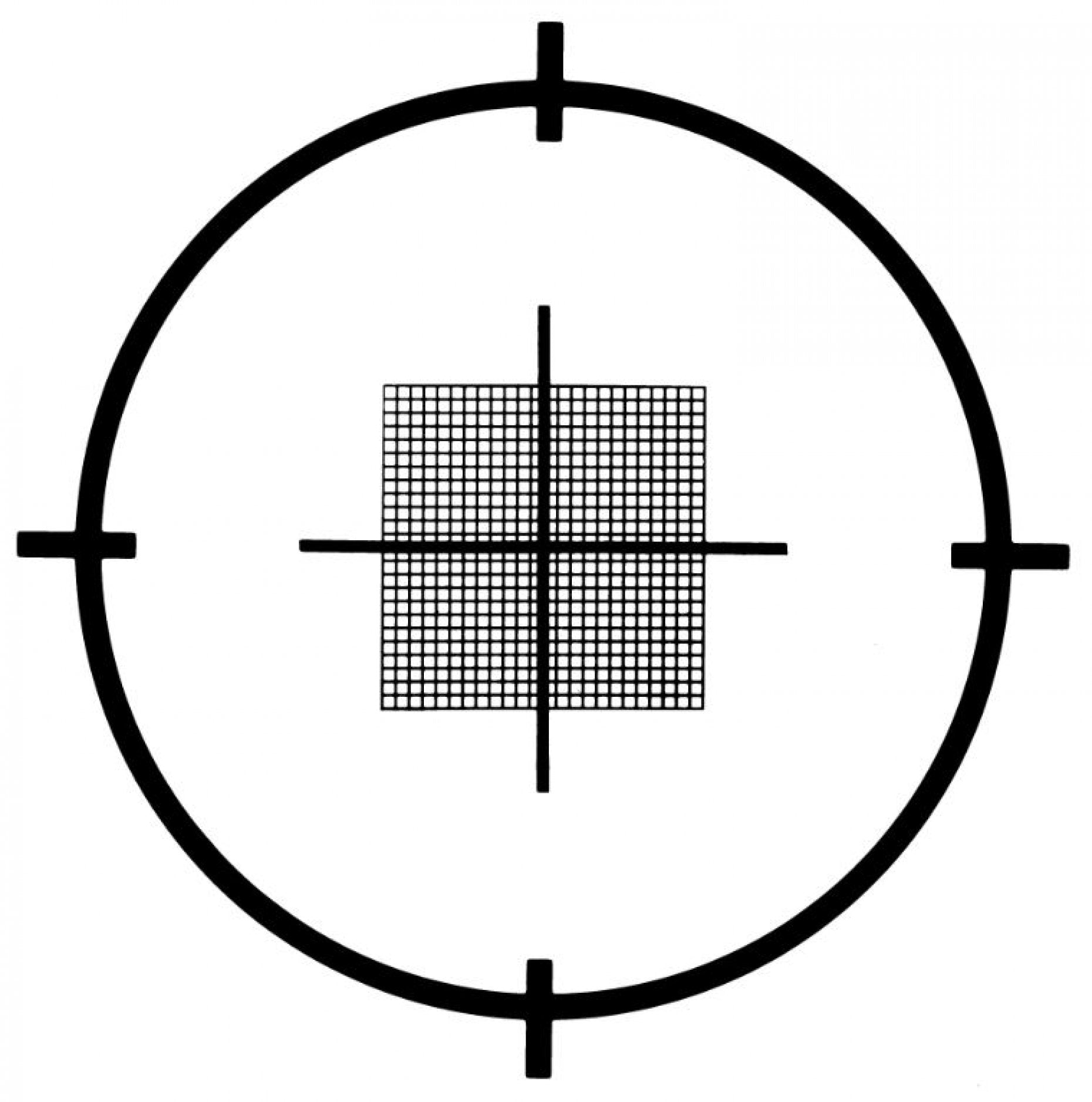

Pattern
S29
Description
Counting Grid 0.01mm Squares
Key features
Counting Grid Slide with 150x150 grid of 0.01mm (10µm) squares.
For Transmitted Light.
Order code
02B00429
Line Thickness
0.002mm +0.001mm / 0.003mm +0.001mm Centre Line
Glass Type and Thickness
B270 1mm thick
Overall Tolerance
+/-0.0015mm

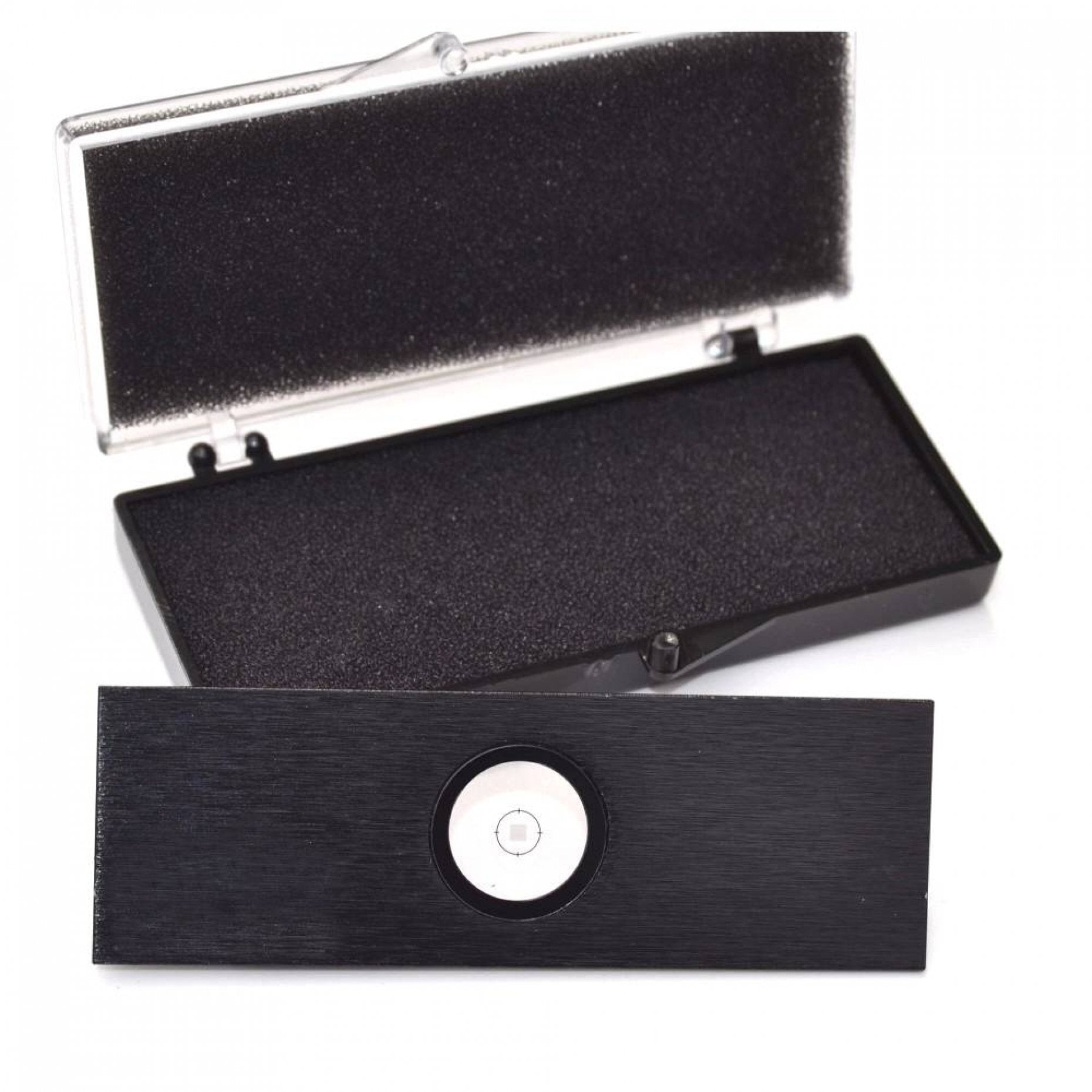

Mount
Black Anodised Aluminium Slide (76mm x 25mm x 1.5mm)
Orientation
Correct on top surface
