S21 Stage Micrometer Grouped Graduations 5mm/0.5mm, 2mm/0.1mm, 0.2mm/0.01mm

S21 Stage Micrometer Grouped Graduations 5mm/0.5mm, 2mm/0.1mm, 0.2mm/0.01mm

Pattern

S21

Description

Stage Micrometer Grouped Graduations 5mm/0.5mm, 2mm/0.1mm, 0.2mm/0.01mm

Key features

Stage Micrometer with Grouped Graduations, 5mm total length scale in 0.5mm divisions, 2mm section subdivided into 0.1mm divisions and final 0.2mm with 0.01mm divisions.
For Transmitted Light.

Line Thickness

0.002mm +0.001mm

Glass Type and Thickness

B270 1mm thick

Scale Length Tolerance

+/-0.0015mm

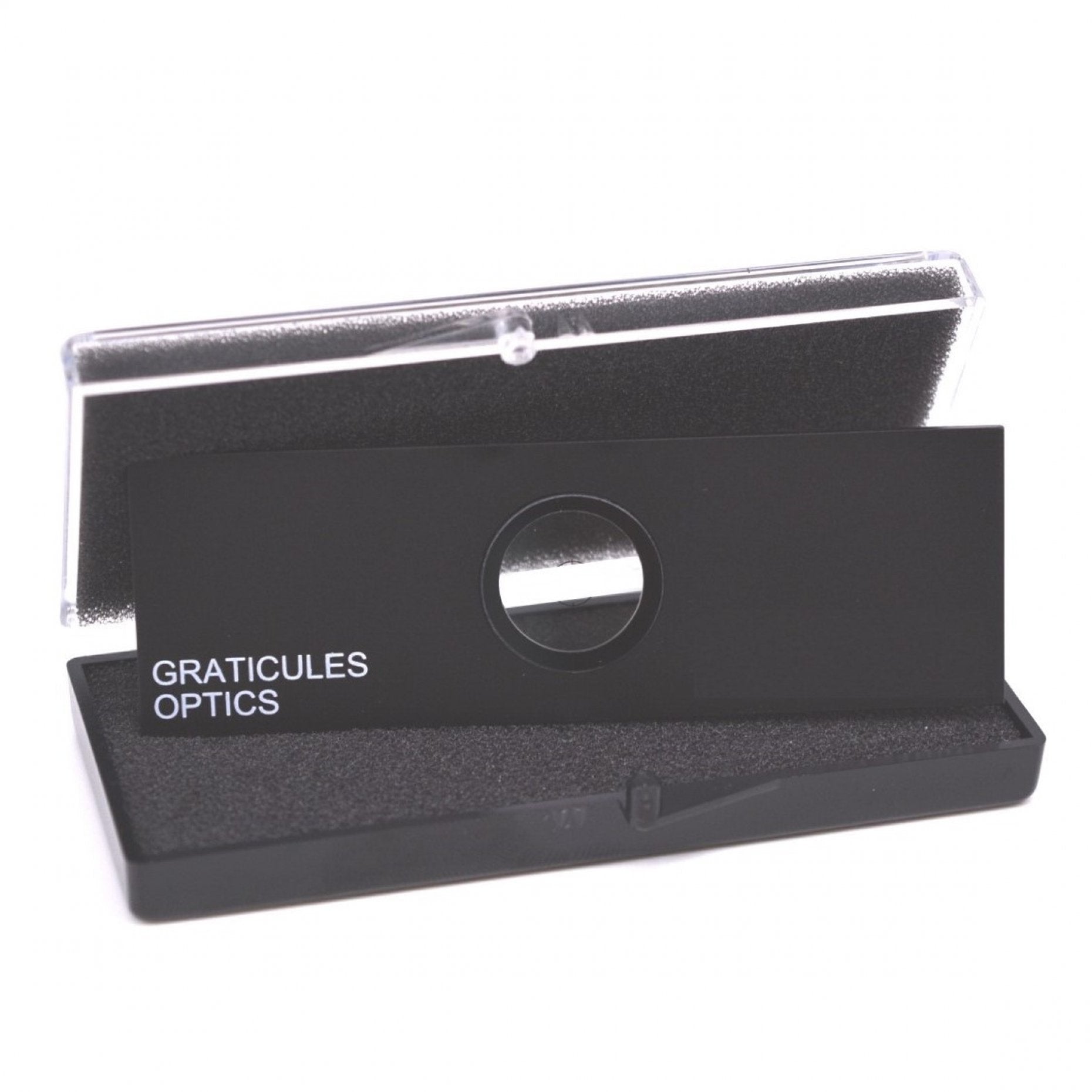

Mount

Black Anodised Aluminium Slide (76mm x 25mm x 1.5mm)

Divisional Marker Lengths

1.0mm, 0.8mm, 0.6mm, 0.5mm, 0.4mm

Orientation

Correct on top surface

Documentation

SDS

Technical Notes

View full details
Variant Variant total Quantity Price Variant total
S21 Micrometer Scale 5mm/0.5mm, 2mm/0.1mm, 0.2mm/0.01 (Unit: each)02A00410
S21 Micrometer Scale 5mm/0.5mm, 2mm/0.1mm, 0.2mm/0.01 (Unit: each)02A00410
1.031,40 lei/ea		 0,00 lei
1.031,40 lei/ea 0,00 lei
S21 Micrometer Scale 5mm/0.5mm, 2mm/0.1mm, 0.2mm/0.01 with Graticules certificate (Unit: each)02A00410/GRA
S21 Micrometer Scale 5mm/0.5mm, 2mm/0.1mm, 0.2mm/0.01 with Graticules certificate (Unit: each)02A00410/GRA
2.350,40 lei/ea		 0,00 lei
2.350,40 lei/ea 0,00 lei
S21 Micrometer Scale 5mm/0.5mm, 2mm/0.1mm, 0.2mm/0.01 with UKAS certificate (Unit: each)02A00410/UKA
S21 Micrometer Scale 5mm/0.5mm, 2mm/0.1mm, 0.2mm/0.01 with UKAS certificate (Unit: each)02A00410/UKA
3.200,60 lei/ea		 0,00 lei
3.200,60 lei/ea 0,00 lei
S21 Micrometer Scale 5mm/0.5mm, 2mm/0.1mm, 0.2mm/0.01 with NPL certificate (Unit: each)02A00410/NPL
S21 Micrometer Scale 5mm/0.5mm, 2mm/0.1mm, 0.2mm/0.01 with NPL certificate (Unit: each)02A00410/NPL
5.942,40 lei/ea		 0,00 lei
5.942,40 lei/ea 0,00 lei
