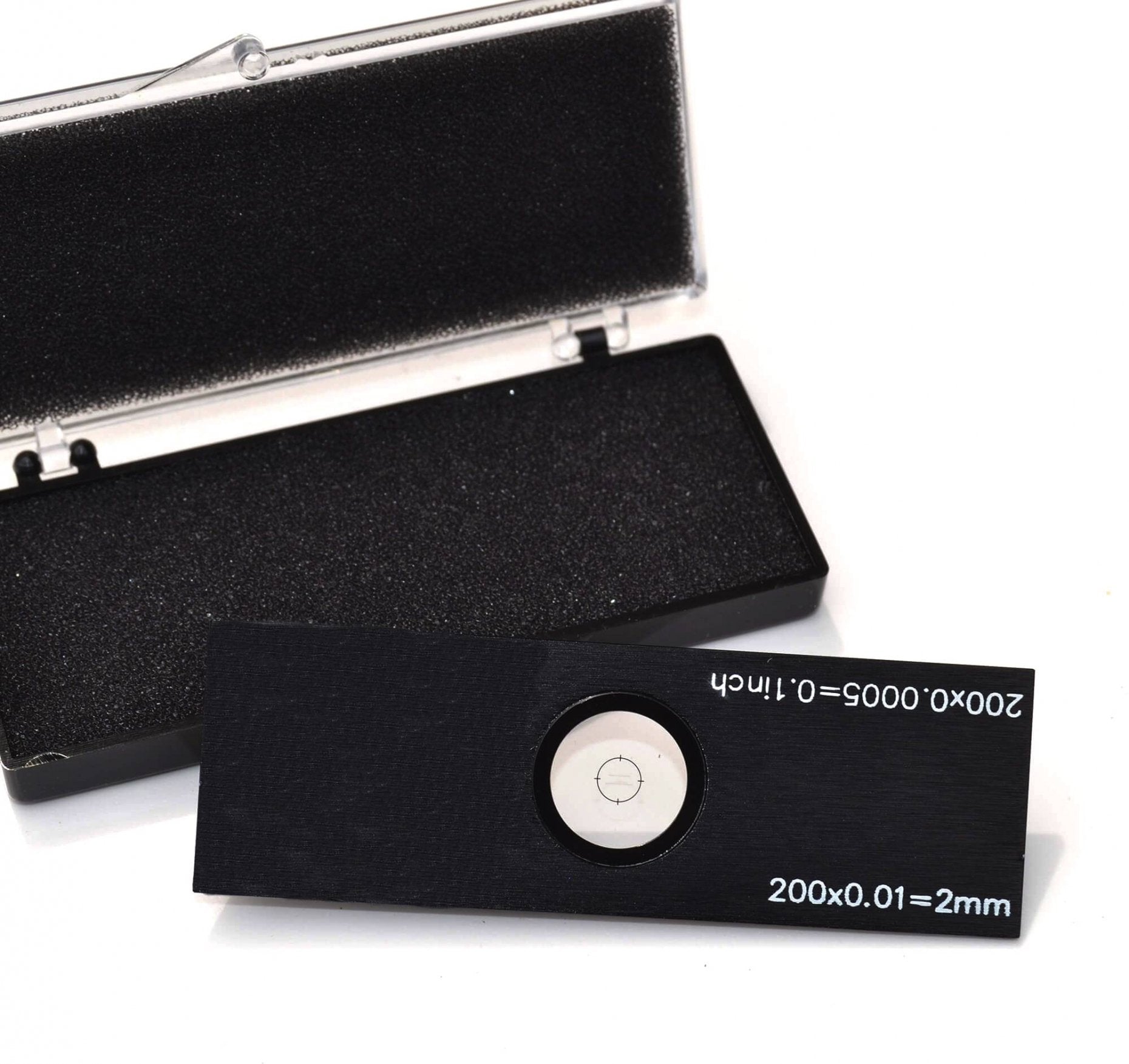

S20 Stage Micrometer Double Scales Metric/Imperial 2mm/0.01mm and 0.1''/0.0005''

S20 Stage Micrometer Double Scales Metric/Imperial 2mm/0.01mm and 0.1''/0.0005''

Pattern

S20

Description

Stage Micrometer Double Scales Metric/Imperial 2mm/0.01mm and 0.1''/0.0005''

Key features

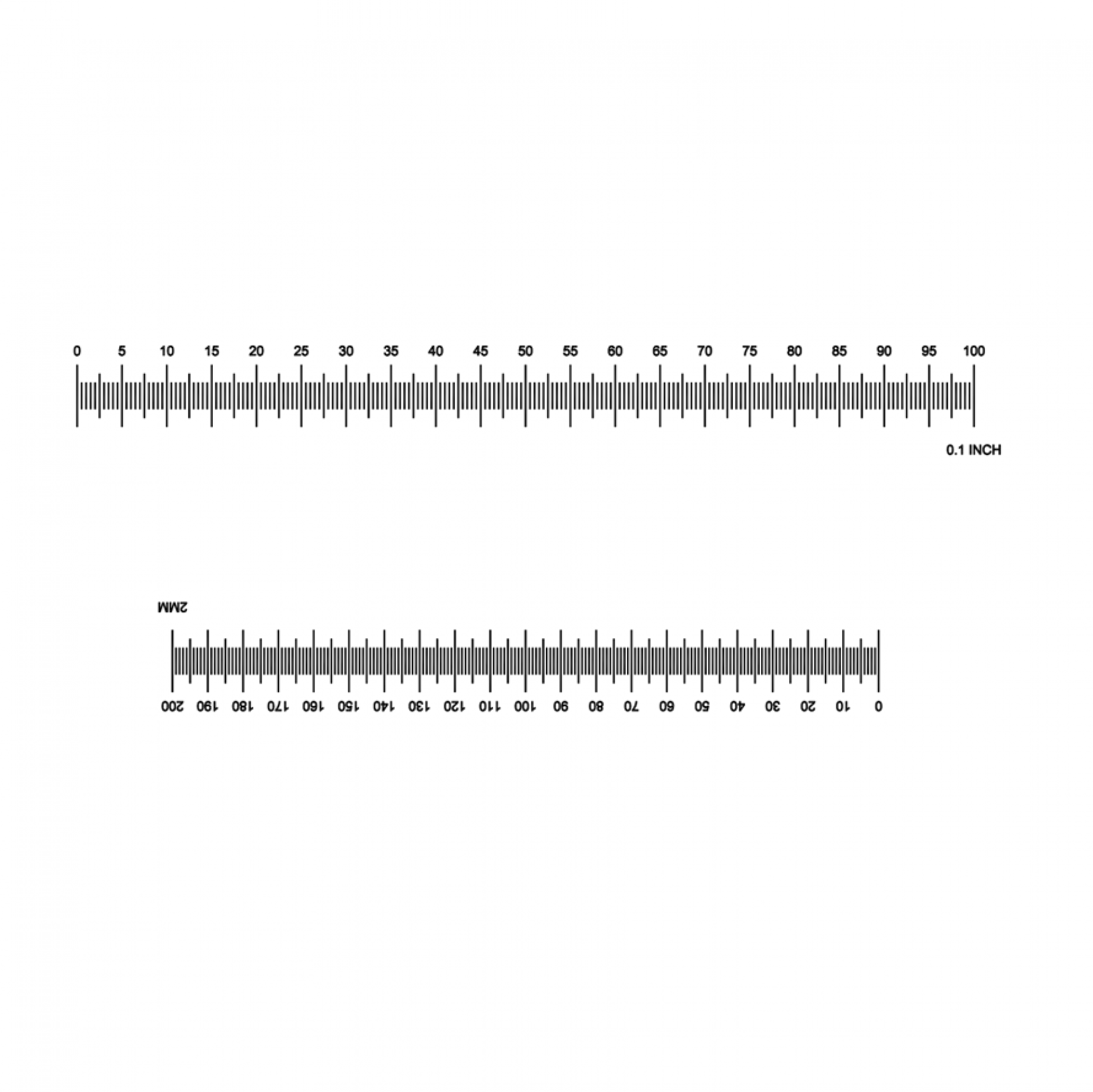

Stage Micrometer with Metric/Imperial Double Scales. 2mm scale in 0.01mm divisions (10µm) and 0.1 inch scale in 0.0005 inch divisions.
For Transmitted Light.

Line Thickness

0.002mm +/-0.001mm

Glass Type and Thickness

B270 1mm thick

Scale Length Tolerance

+/-0.0015mm

Mount

Black Anodised Aluminium Slide (76mm x 25mm x 1.5mm)

Divisional Marker Lengths

0.175mm, 0.125mm, 0.075mm

Orientation

Correct on top surface

Documentation

SDS

Technical Notes

View full details
Variant Variant total Quantity Price Variant total
S20 Double Micrometer Scale 2mm/0.01mm & 0.1inch/0.05inch div (Unit: each)02A00409
S20 Double Micrometer Scale 2mm/0.01mm & 0.1inch/0.05inch div (Unit: each)02A00409
1.429,50 lei/ea		 0,00 lei
1.429,50 lei/ea 0,00 lei
S20 Double Micrometer Scale 2mm/0.01mm & 0.1inch/0.05inch div with Graticules certificate (Unit: each)02A00409/GRA
S20 Double Micrometer Scale 2mm/0.01mm & 0.1inch/0.05inch div with Graticules certificate (Unit: each)02A00409/GRA
2.748,40 lei/ea		 0,00 lei
2.748,40 lei/ea 0,00 lei
S20 Double Micrometer Scale 2mm/0.01mm & 0.1inch/0.05inch div with UKAS certificate (Unit: each)02A00409/UKA
S20 Double Micrometer Scale 2mm/0.01mm & 0.1inch/0.05inch div with UKAS certificate (Unit: each)02A00409/UKA
3.598,70 lei/ea		 0,00 lei
3.598,70 lei/ea 0,00 lei
S20 Double Micrometer Scale 2mm/0.01mm & 0.1inch/0.05inch div with NPL certificate (Unit: each)02A00409/NPL
S20 Double Micrometer Scale 2mm/0.01mm & 0.1inch/0.05inch div with NPL certificate (Unit: each)02A00409/NPL
9.575,10 lei/ea		 0,00 lei
9.575,10 lei/ea 0,00 lei
