S18 Stage Micrometer Double Graduated Metric/Imperial 25mm and 1'' scales

S18 Stage Micrometer Double Graduated Metric/Imperial 25mm and 1'' scales

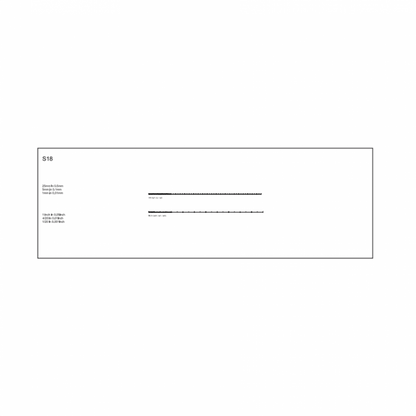

Pattern

S18

Description

Stage Micrometer Double Graduated Metric/Imperial 25mm and 1'' scales

Key features

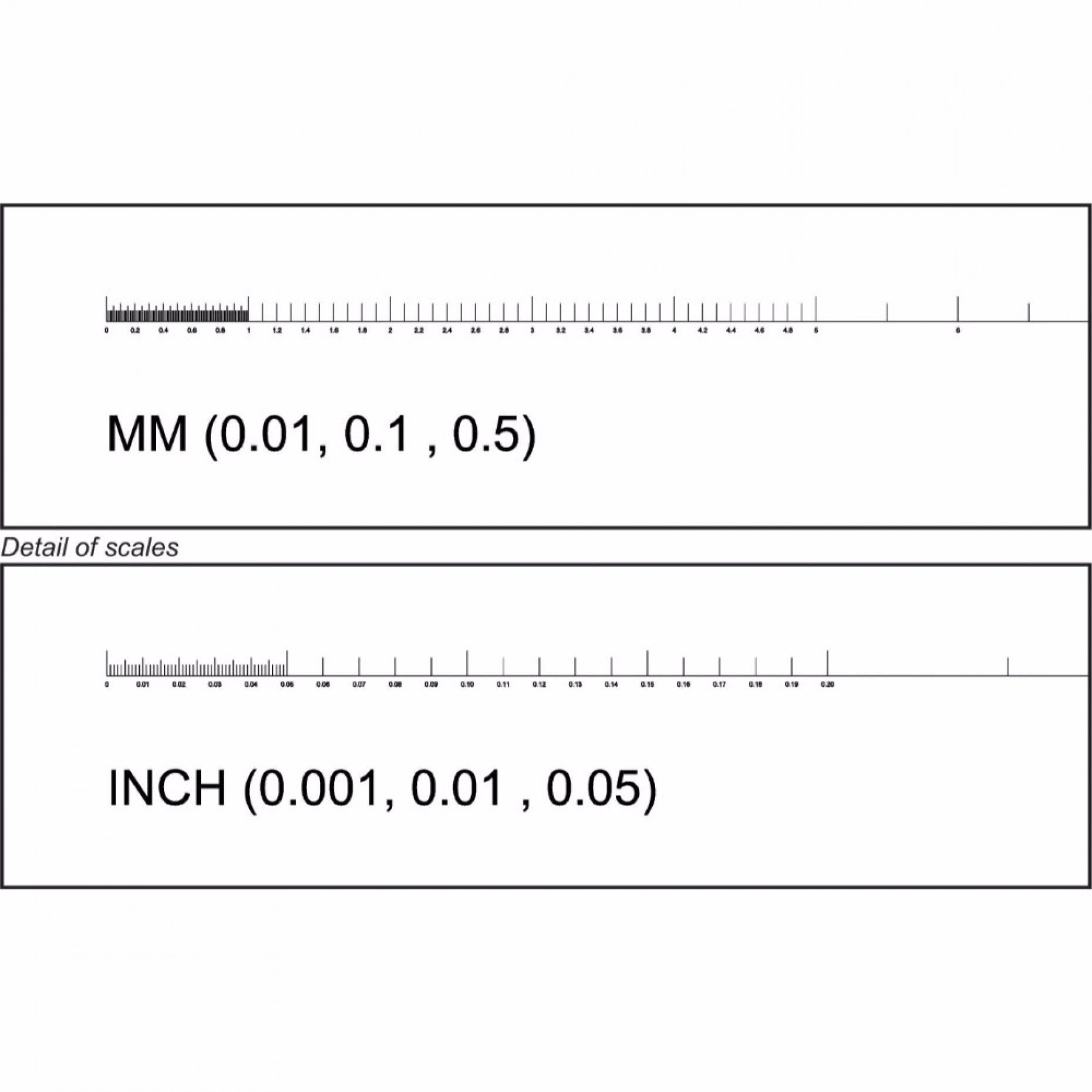

Stage Micrometer with 25mm scale in 0.5mm divisions, 5mm in 0.1mm divisions and 1mm in 0.01mm divisions + 1 inch in 0.05 inch divisions, 0.2 inch in 0.01 inch divisions and 0.05 inch in 0.0001 inch divisions.
For Transmitted Light.

For the calibration of measurement instruments across a wide range of magnifications. This graduated scale stage micrometer is suitable for low magnification, stereo inspection microscopes to higher magnification compound microscopes. The double scale (Metric & Imperial/English), extends this flexibility further, suiting Quality Control Departments that serve all international markets.

Line Thickness

0.0025mm

Glass Type and Thickness

SodaLime 1.5mm

Slide Dimensions

76mm x 25mm

Documentation

SDS

Technical Notes

View full details
Variant Variant total Quantity Price Variant total
S18 Graduated Double Micrometer Scales, 25mm/0.5mm, 5mm/0.1mm, 1mm/0.01mm and 1"/0.05", 0.2"/0.01", 0.05"/1" (Unit: each)02A00418
S18 Graduated Double Micrometer Scales, 25mm/0.5mm, 5mm/0.1mm, 1mm/0.01mm and 1"/0.05", 0.2"/0.01", 0.05"/1" (Unit: each)02A00418
1.169,20 lei/ea		 0,00 lei
1.169,20 lei/ea 0,00 lei
S18 Graduated Double Micrometer Scales, 25mm/0.5mm, 5mm/0.1mm, 1mm/0.01mm and 1"/0.05", 0.2"/0.01", 0.05"/1" with UKAS certificate (Unit: each)02A00418/UKA
S18 Graduated Double Micrometer Scales, 25mm/0.5mm, 5mm/0.1mm, 1mm/0.01mm and 1"/0.05", 0.2"/0.01", 0.05"/1" with UKAS certificate (Unit: each)02A00418/UKA
3.338,50 lei/ea		 0,00 lei
3.338,50 lei/ea 0,00 lei
