S16 Stage Micrometer Crossed Scales 1mm/0.01mm

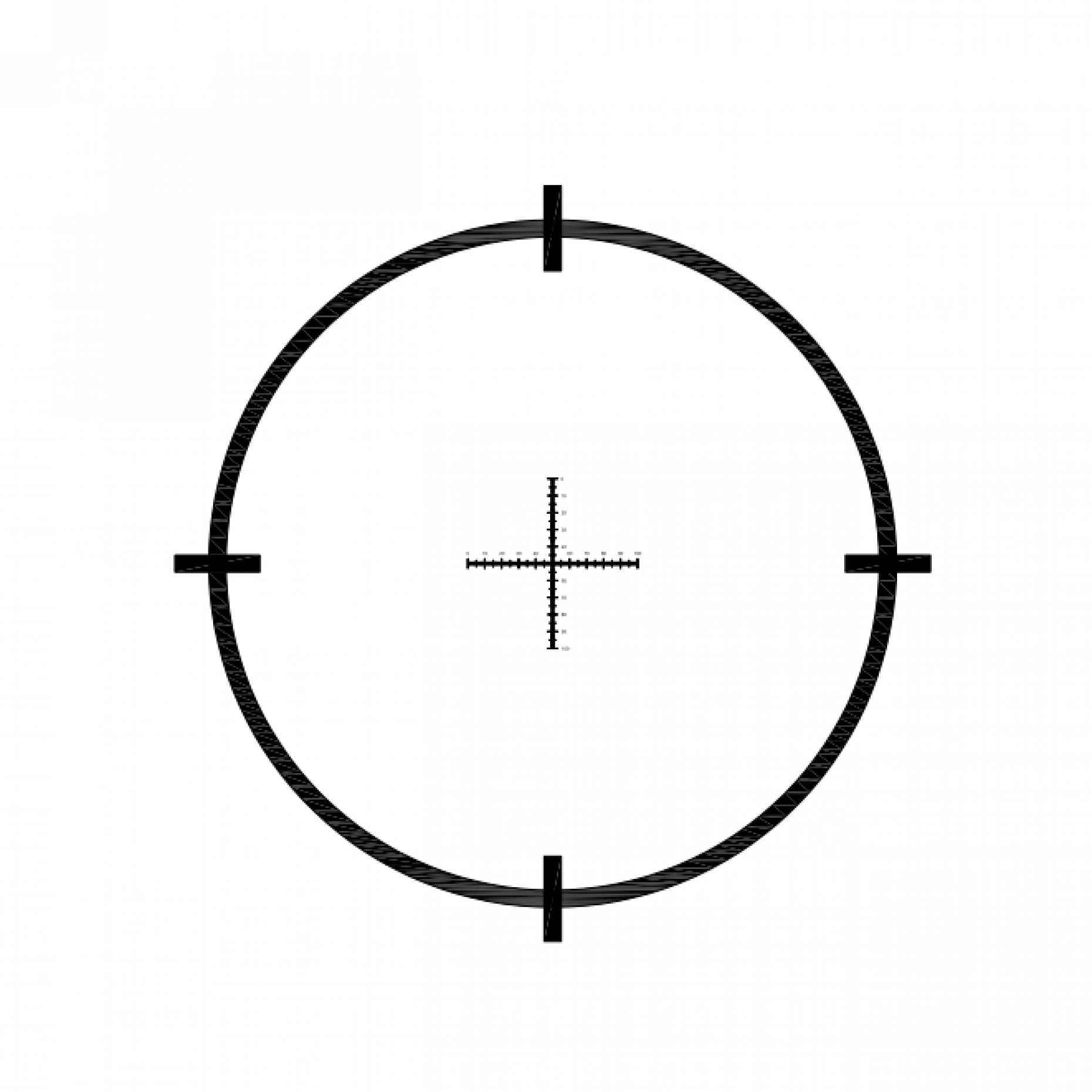

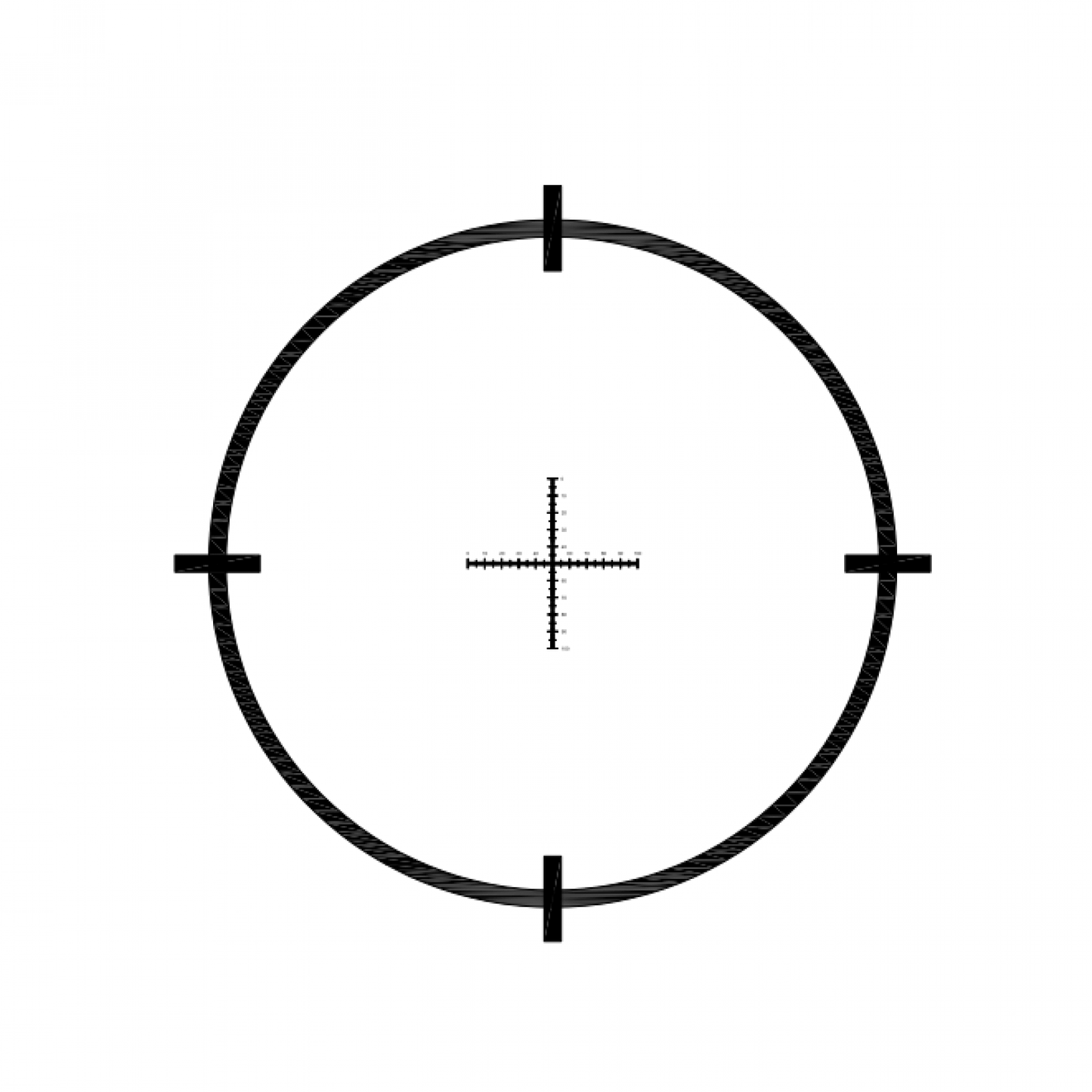

Pattern

S16

Description

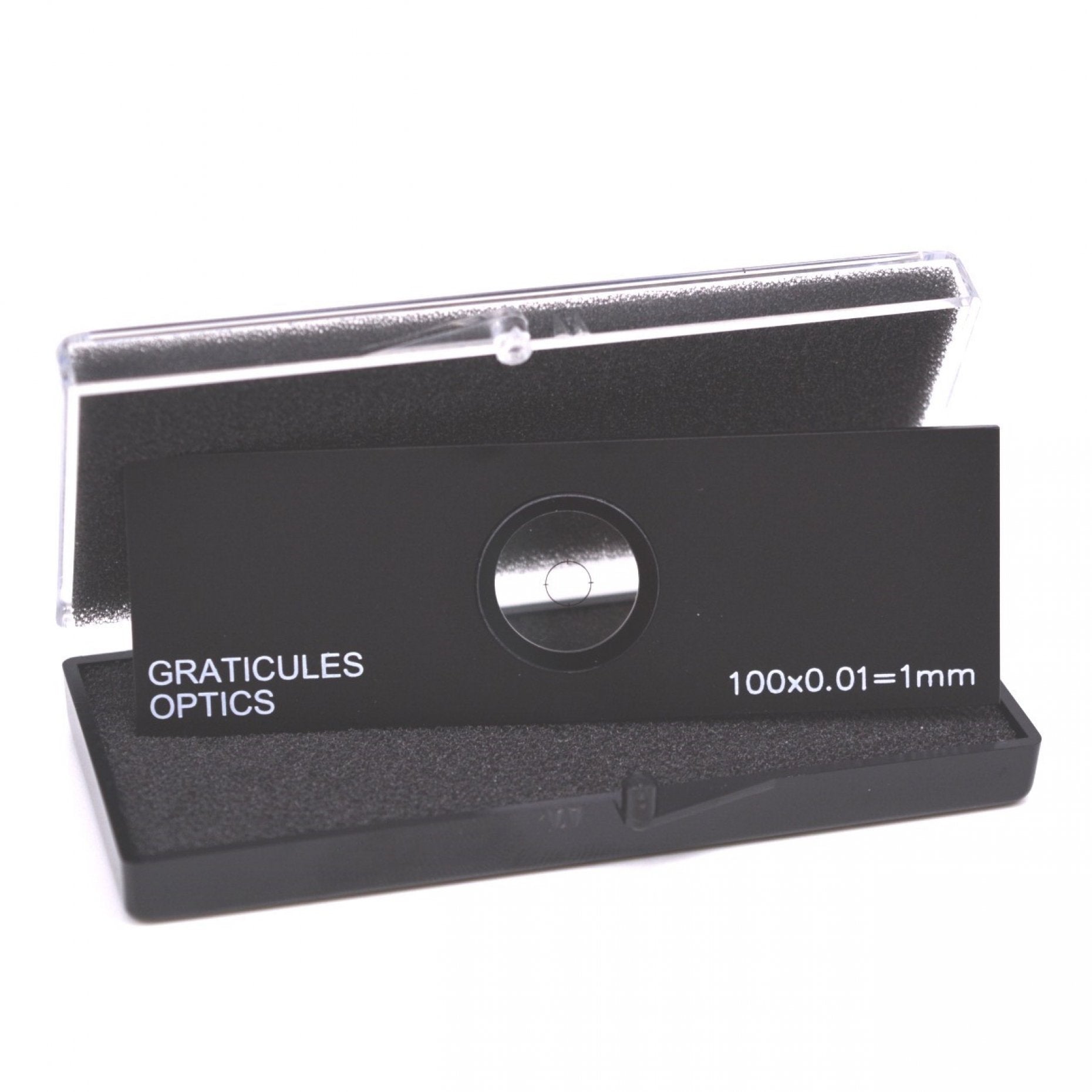

Stage Micrometer Crossed Scales 1mm/0.01mm

Key features

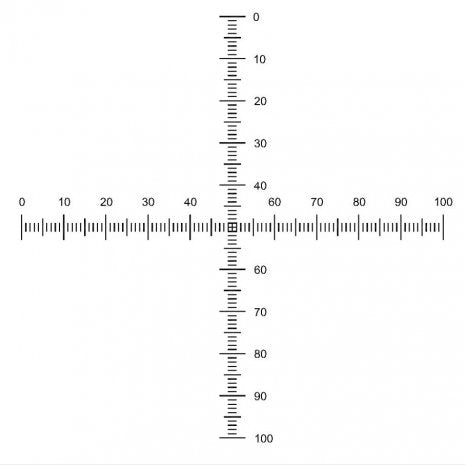

Stage Micrometer with Crossed Scales, each 1mm long subdivided into 100 divisions of 0.01mm (10µm).
For Transmitted Light.

0.002mm +0.001mm

B270 1mm thick

+/-0.001mm

Black Anodised Aluminium Slide (76mm x 25mm x 1.5mm)

0.060mm, 0.040mm, 0.020mm

Correct on top surface

Ø3.95mm to line centers of 0.1mm line width

🚚 Estimated Delivery: 5 - 6 weeks from payment confirmation

Your cart
Variant	Variant total	Quantity	Price	Variant total
S16 Crossed Micrometer Scales 1mm in 0.01mm divisions. (Unit: each)02A00429	S16 Crossed Micrometer Scales 1mm in 0.01mm divisions. (Unit: each)02A00429 3.479,43 lei/ea	0,00 lei	Quantity	3.479,43 lei/ea	0,00 lei

S16 Crossed Micrometer Scales 1mm in 0.01mm divisions with Graticules certificate (Unit: each)02A00429/GRA	S16 Crossed Micrometer Scales 1mm in 0.01mm divisions with Graticules certificate (Unit: each)02A00429/GRA 7.064,46 lei/ea	0,00 lei	Quantity	7.064,46 lei/ea	0,00 lei

S16 Crossed Micrometer Scales 1mm in 0.01mm divisions with UKAS certificate (Unit: each)02A00429/UKA	S16 Crossed Micrometer Scales 1mm in 0.01mm divisions with UKAS certificate (Unit: each)02A00429/UKA 9.375,13 lei/ea	0,00 lei	Quantity	9.375,13 lei/ea	0,00 lei

S16 Crossed Micrometer Scales 1mm in 0.01mm divisions with NPL certificate (Unit: each)02A00429/NPL	S16 Crossed Micrometer Scales 1mm in 0.01mm divisions with NPL certificate (Unit: each)02A00429/NPL 16.884,39 lei/ea	0,00 lei	Quantity	16.884,39 lei/ea	0,00 lei

Total items

0,00 lei

Product subtotal

Taxes, discounts and shipping calculated at checkout.
