S10 Stage Counting Grid 0.05mm Squares
S10 Stage Counting Grid 0.05mm Squares
Pattern
S10
Description
Stage Counting Grid 0.05mm Squares
Key features

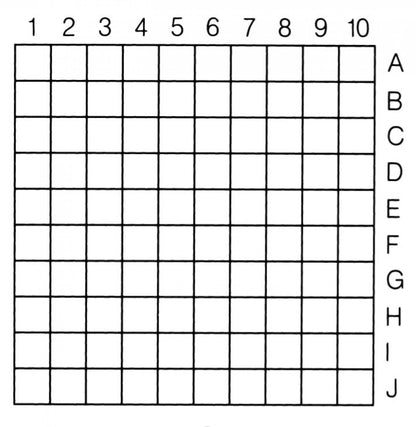

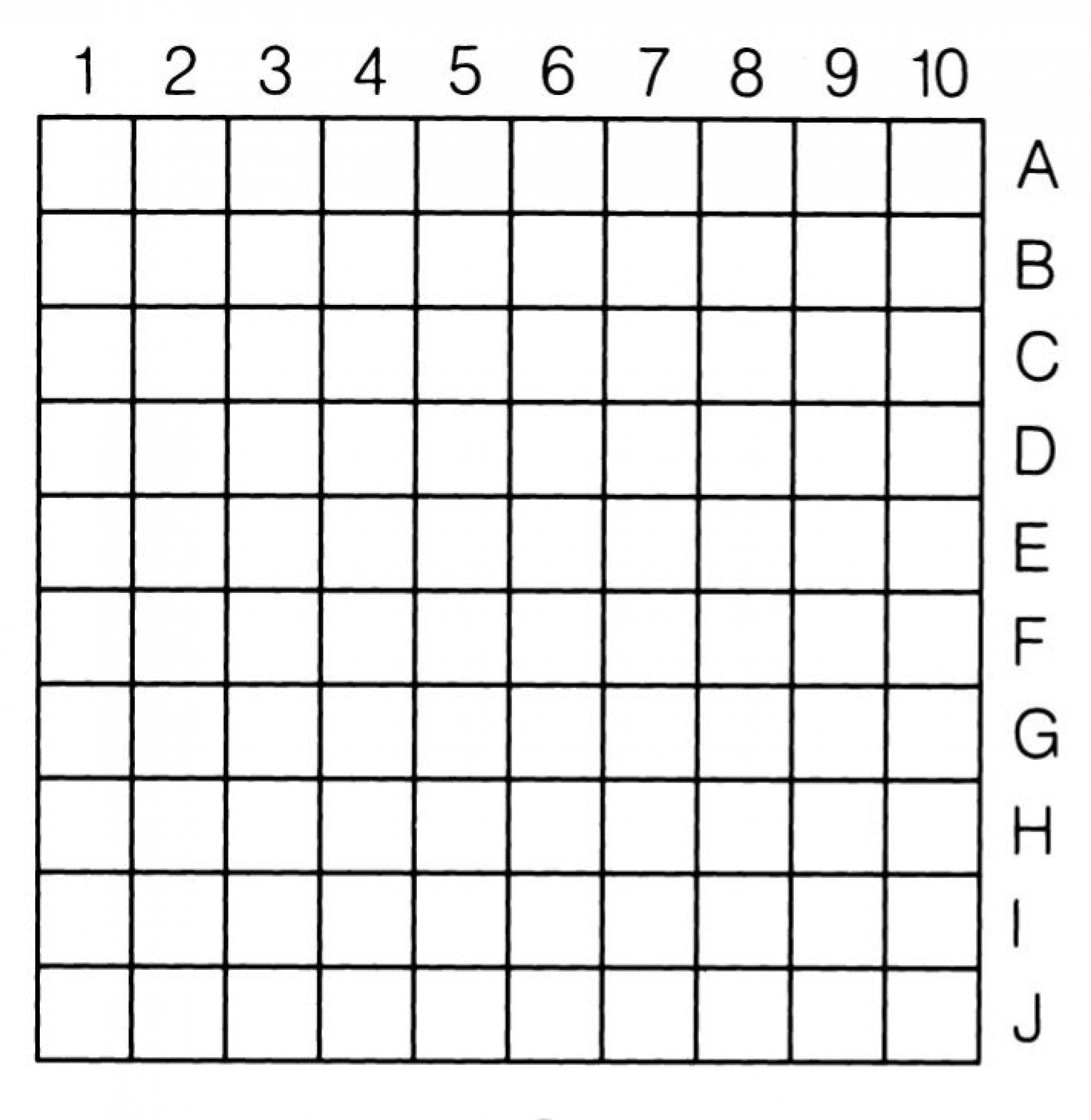

Counting Grid slide with 10x10 Grid of 0.05mm (50µm) squares.
For Transmitted Light.
Order code
02A00406
Line Thickness
0.003mm
Glass Type and Thickness
B270 1mm thick
Overall Tolerance
+/-0.002mm
Mount

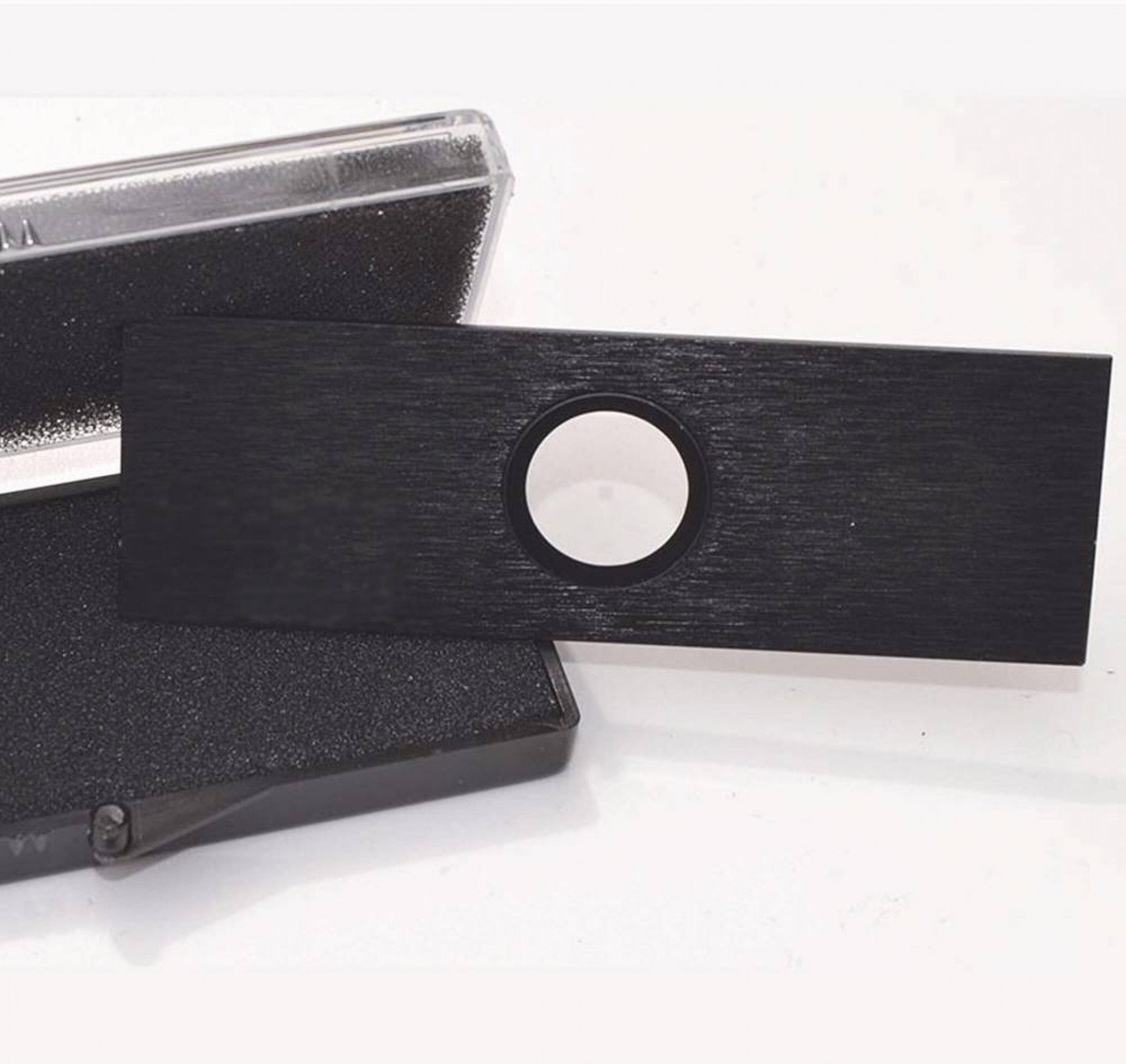

Black Anodised Aluminium Slide (76mm x 25mm x 1.5mm)
Orientation
Correct on top surface
