Rapid-Core Precise Tissue Punches

Rapid-Core Precise Tissue Punches



Multi-purpose sampling tools with retractable cutting cannulas

dimensions in mm

Rapid-Core is a multi-purpose sampling tool, designed with a retractable cutting cannula. It features easy operation, is safe to use, and is fast and precise. The body of the tool is made from polypropylene (PP) and the cutting tip from stainless steel 304 (SS304). The Rapid-Core razor sharp stainless steel cutting tip is designed to cut, retrieve and store cored samples from source materials such as skin, tissue, gels, paper, cloth, leaves, paint chips, films or other thin, soft substrates. The Rapid-Core is recommended as a special DNA sampling tool and ideal for forensic and laboratory sampling purposes. Each Rapid-Core Punch is ethylene oxide sterilized in a self-sealing sterilization pouch. This product will not withstand steam sterilization in an autoclave.

Features:

  • Single application disposable sampling punch
  • Retractable cutting cannula
  • Body is made of polypropylene
  • Stainless steel 304 (SS304) razor sharp cutting tip
  • Individually packaged
  • Sterile

Specifications:

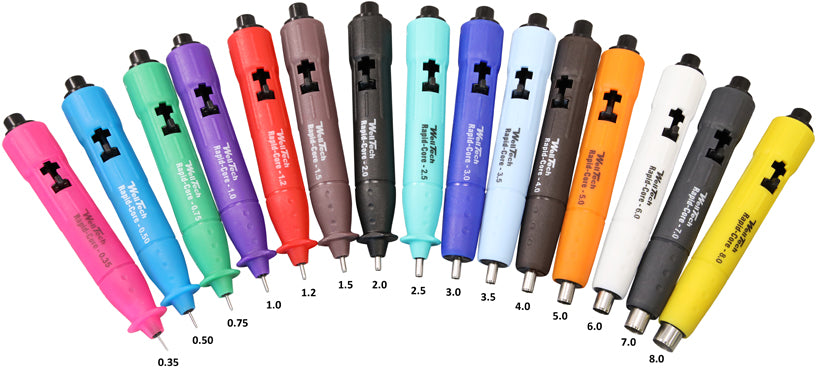

Sizes: 0.35, 0.5, 0.75, 1.0, 1.2, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 5.0, 6.0, 7.0, 8.0mm　
Material: PP - body, 304 stainless steel - cutting cannula (tip)　
Packaging: individually packaged
Sterilization: EO (ethylene Oxide)
Patent: US patent no. US 9,655,598 B2

Product No. Size (mm) I.D. (mm) O.D. (mm) Wall Thickness (mm)
15115 0.35 0.33 0.63 0.15
15115-1 0.5 0.50 0.80 0.15
15115-2 0.75 0.77 1.07 0.15
15115-3 1.0 0.96 1.26 0.15
15115-4 1.2 1.2 1.5 0.15
15115-5 1.5 1.5 1.9 0.20
15115-6 2.0 2.0 2.4 0.20
15115-7 2.5 2.5 2.9 0.20
15115-8 3.0 3.0 3.4 0.20
15115-9 3.5 3.5 3.9 0.20
15115-10 4.0 4.0 4.4 0.20
15115-11 5.0 5.0 5.5 0.25
15115-12 6.0 6.0 6.5 0.25
15115-13 7.0 7.0 7.5 0.25
15115-14 8.0 8.0 8.5 0.25
