PS5R Micrometer Scale 20mm in 0.01mm divisions for reflected light

PS5R Micrometer Scale 20mm in 0.01mm divisions for reflected light

Description

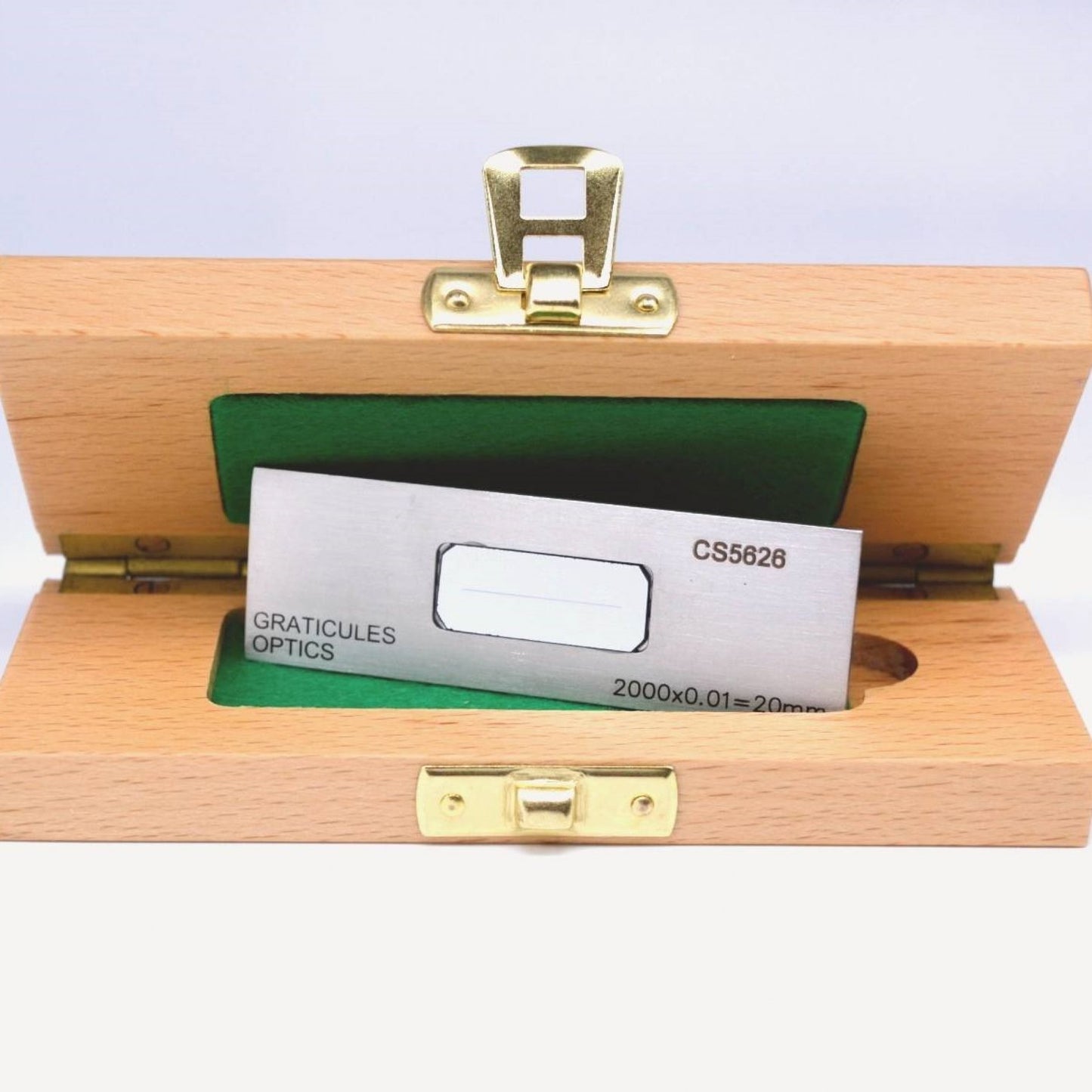

Stage Micrometer 20mm/0.01mm, Reflected Light

Key features

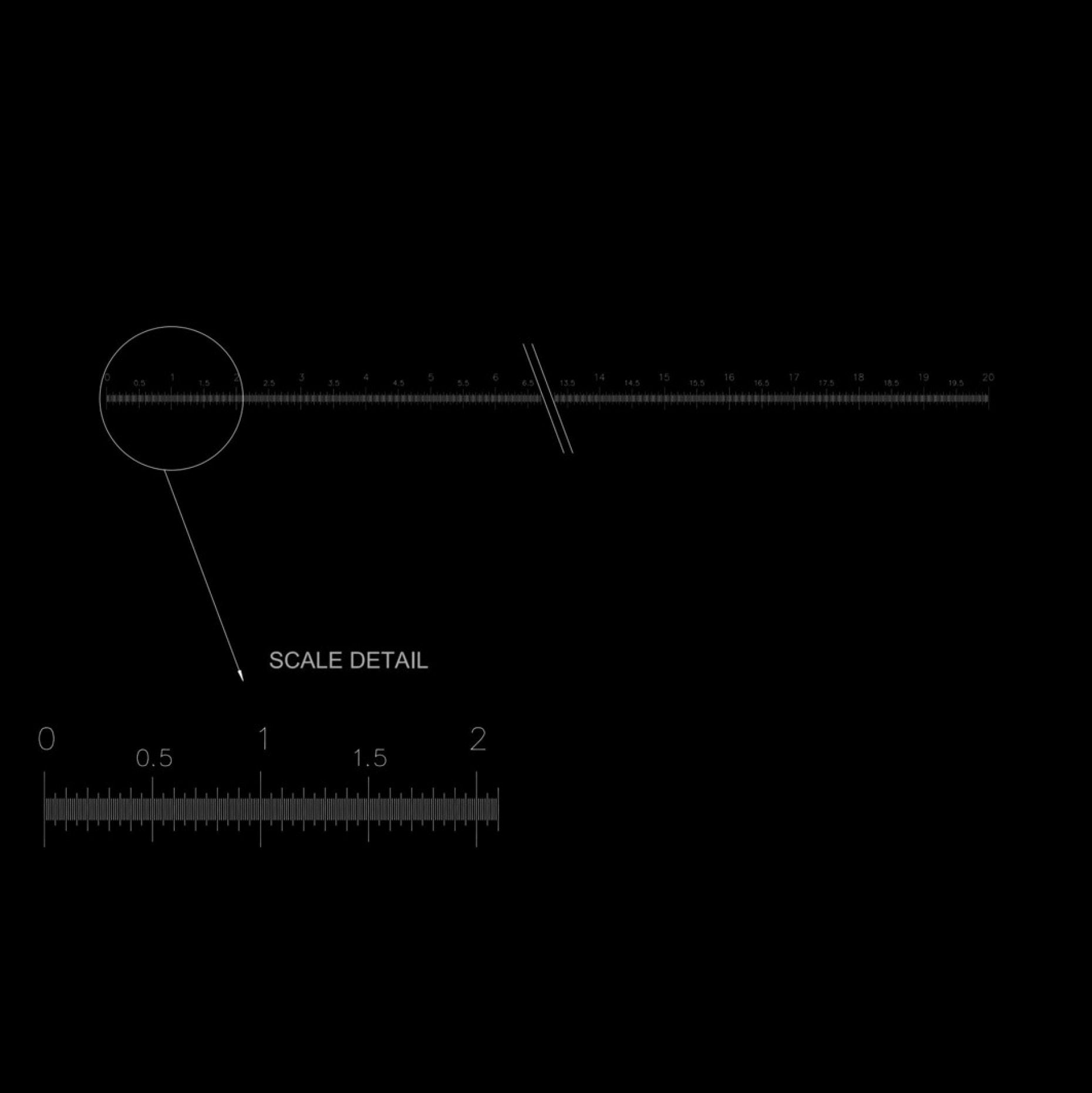

Stage Micrometer with 20mm scale subdivided into 2000 divisions of 0.01mm (10µm).
For Reflected Light.

Demand from microscopists has led Graticules Optics to introduce a longer stage micrometer. Calibration of compound microscopes at low magnifications, stereo microscopes and measurement of fields of view require a longer scale than those traditionally available.

Line Thickness

0.003mm +0.001mm

Glass Type and Thickness

B270 1mm thick

Scale Length Tolerance

+/-0.004mm

Mount

Stainless Steel Slide with engraved Serial Number

Divisional Marker Lengths

0.35mm, 0.30mm, 0.20mm, 0.15mm, 0.10mm

Orientation

Correct on top surface

Documentation

SDS

Technical Notes

View full details
Variant Variant total Quantity Price Variant total
PS5R Micrometer Scale 20mm in 0.01mm divisions for reflected light (Unit: each)05B01046
PS5R Micrometer Scale 20mm in 0.01mm divisions for reflected light (Unit: each)05B01046
1.917,60 lei/ea		 0,00 lei
1.917,60 lei/ea 0,00 lei
PS5R Micrometer Scale 20mm in 0.01mm divisions for reflected light with UKAS certificate (Unit: each)05B01046/UKA
PS5R Micrometer Scale 20mm in 0.01mm divisions for reflected light with UKAS certificate (Unit: each)05B01046/UKA
3.411,40 lei/ea		 0,00 lei
3.411,40 lei/ea 0,00 lei
PS5R Micrometer Scale 20mm in 0.01mm divisions for reflected light with NPL certificate (Unit: each)05B01046/NPL
PS5R Micrometer Scale 20mm in 0.01mm divisions for reflected light with NPL certificate (Unit: each)05B01046/NPL
10.105,00 lei/ea		 0,00 lei
10.105,00 lei/ea 0,00 lei
