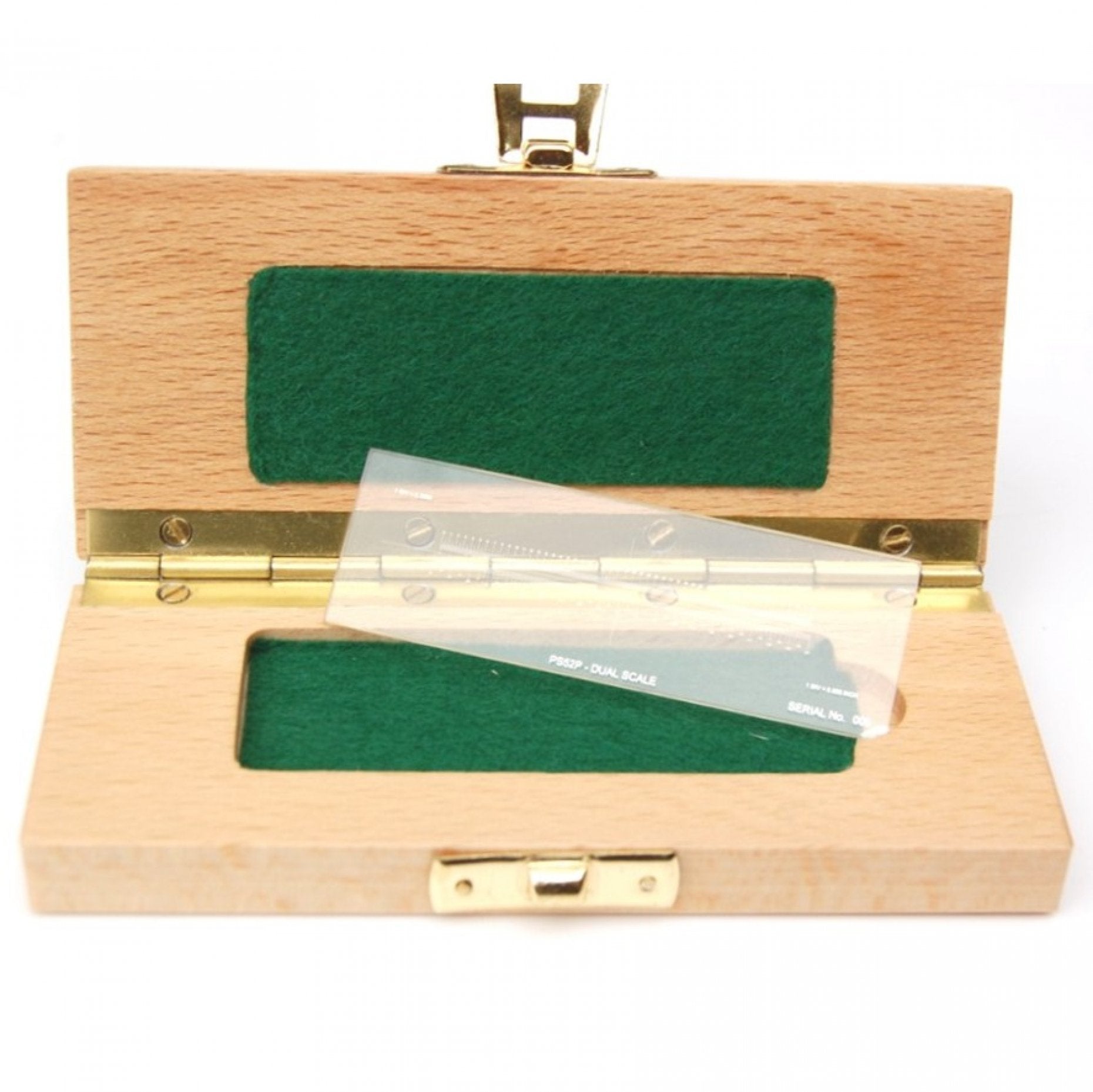

PS52P Dual Micrometer Calibration Slide, 76mm x 25mm, positive image, 50mm in 0.1mm divisions and 2" in 5" divisions, serial
PS52P Dual Micrometer Calibration Slide, 76mm x 25mm, positive image, 50mm in 0.1mm divisions and 2" in 5" divisions, serial

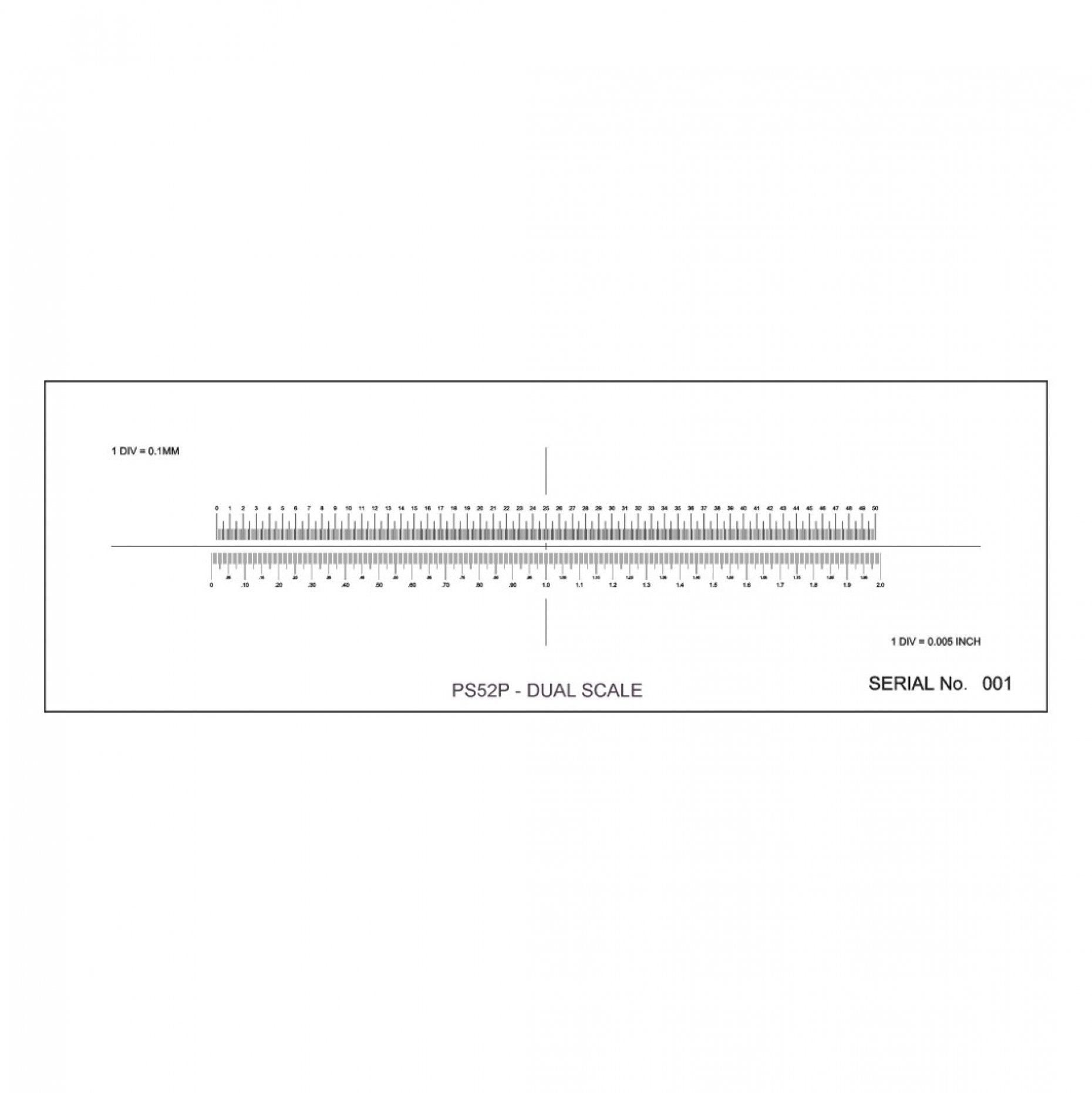

Pattern
PS52P
Description
Dual Scale Calibration Slide 50mm/0.1mm and 2''/0.005''
Key features
Dual Micrometer Calibration Slide with 50mm in 0.1mm (100µm) divisions and 2 inch in 0.005 inch divisions.
For Transmitted Light.
Graticules Optics has introduced this calibration slide that have the benefit of dual imperial/metric scales. The PS52P is for transmitted light applications and has a bright chrome positive image. It is ideal for calibrating optical products with a large field of view, such as stereo microscopes or imaging systems.
Line Thickness
0.012mm +/-0.002mm
Glass Type and Thickness
B270 1.5mm thick
Scale Length Tolerance
+/-0.005mm
Slide Dimensions
76mm x 25mm
Orientation
Correct on top surface
