PS5 Micrometer Scale 20mm in 0.01mm divisions - brightfield
PS5 Micrometer Scale 20mm in 0.01mm divisions - brightfield

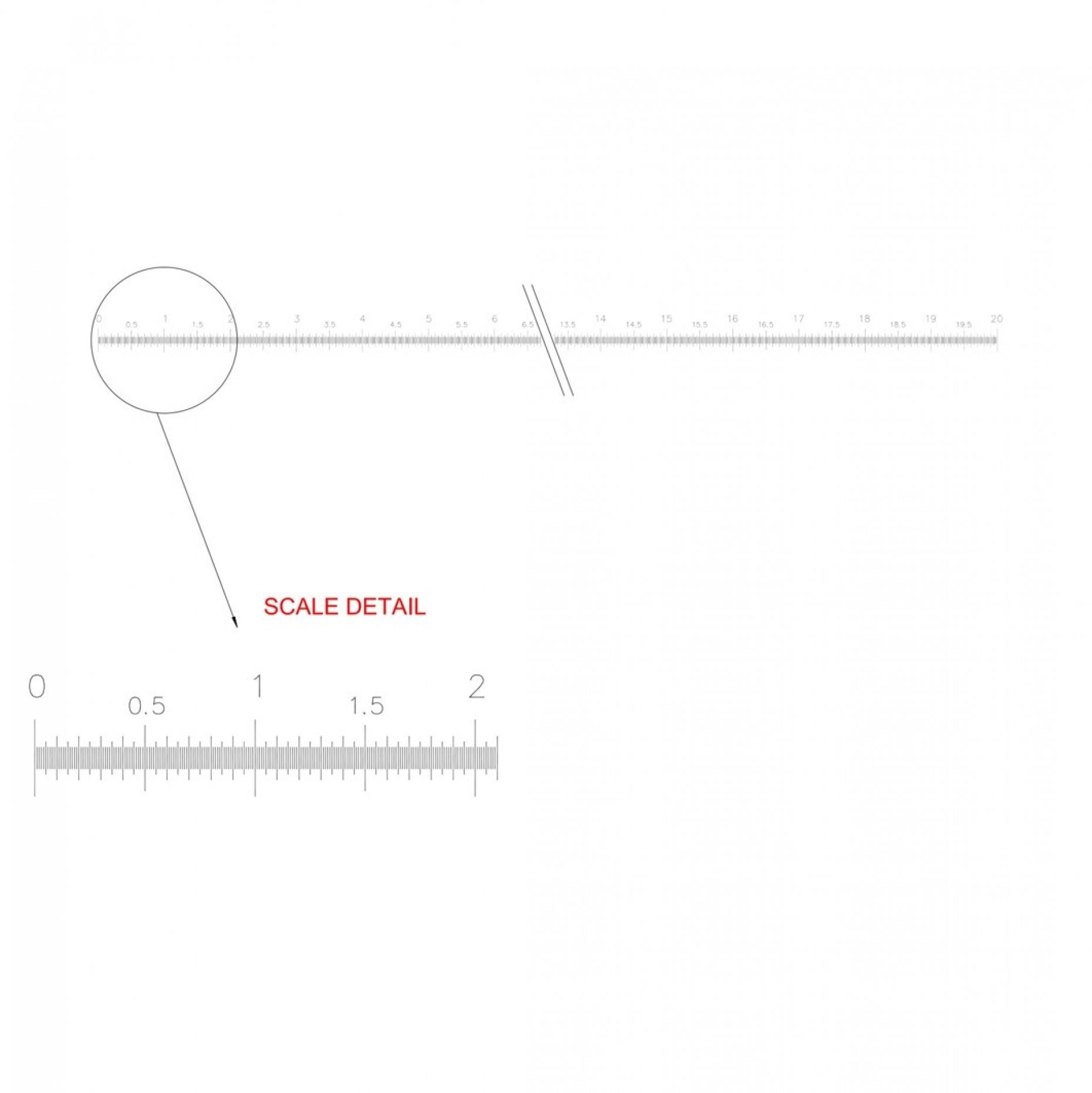

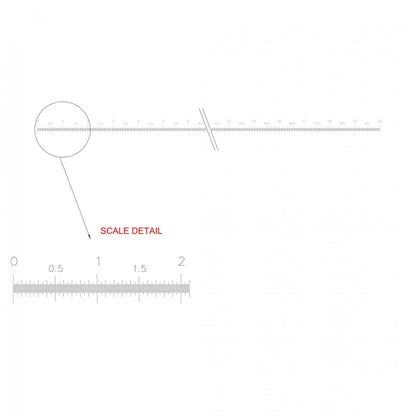

Pattern
PS5
Description
Stage Micrometer 20mm/0.01mm
Key features
Stage Micrometer with 20mm scale subdivided into 2000 divisions of 0.01mm (10µm).
For Transmitted Light.
Demand from microscopists has led Graticules Optics to introduce a longer stage micrometer. Calibration of compound microscopes at low magnifications, stereo microscopes and measurement of fields of view require a longer scale than those traditionally available.
Line Thickness
0.002mm +0.001mm
Glass Type and Thickness
B270 1mm thick
Scale Length Tolerance
+/-0.004mm
Mount

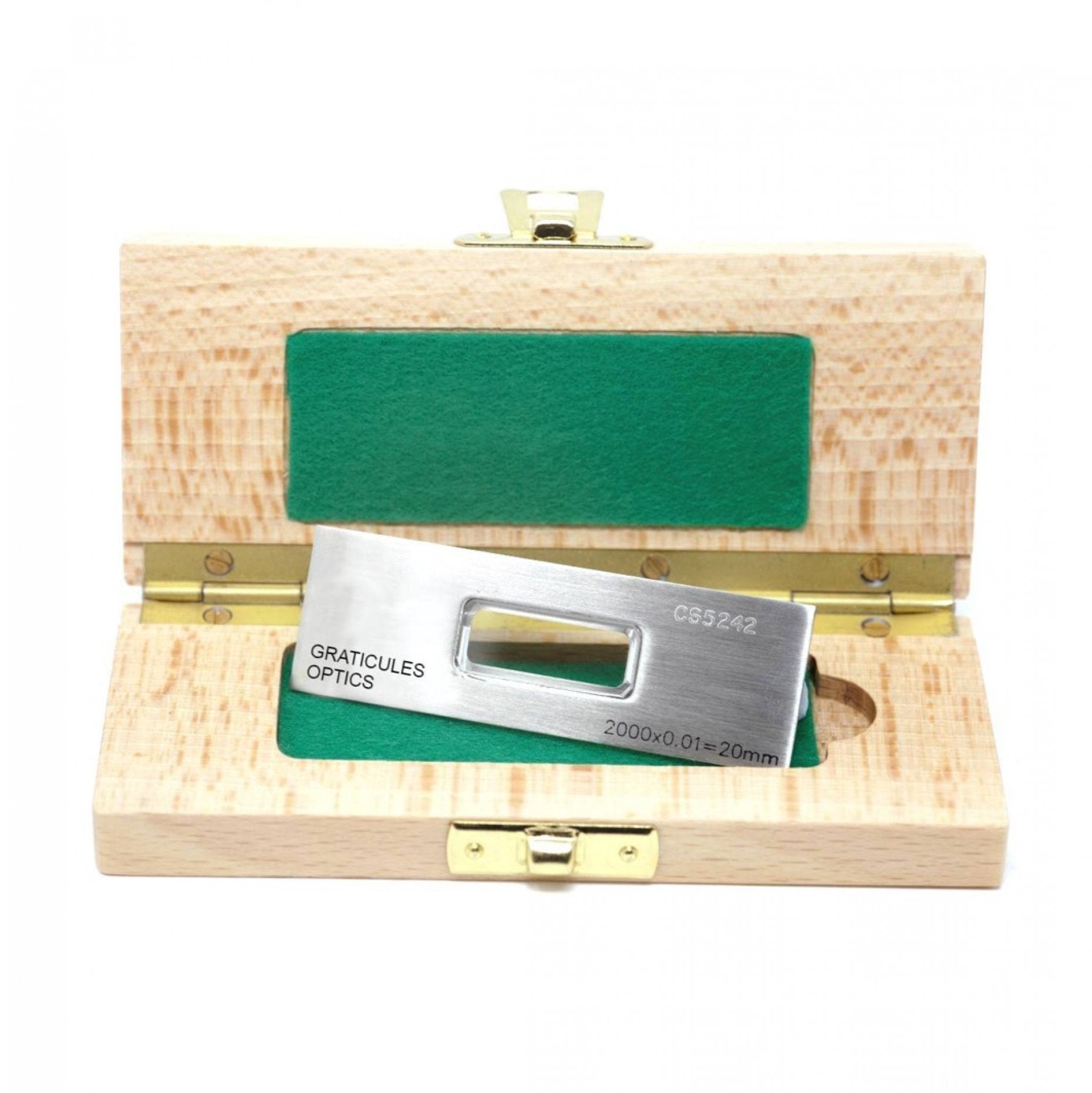

Stainless Steel Slide with engraved Serial Number
Divisional Marker Lengths
0.35mm, 0.30mm, 0.20mm, 0.15mm, 0.10mm
Orientation
Correct on top surface
Documentation
Documentation
🚚 Estimated Delivery: 5 - 6 weeks from payment confirmation
