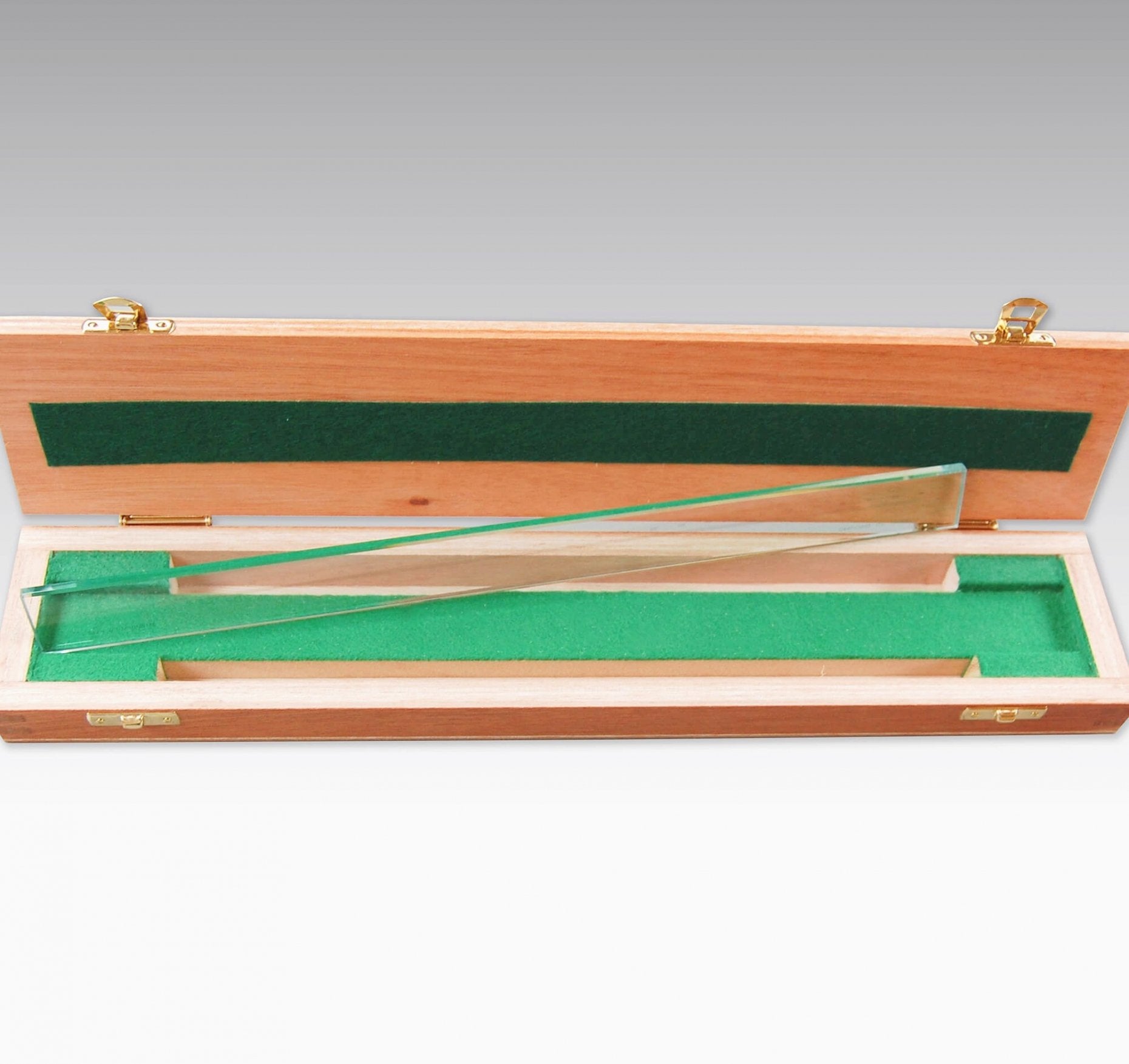

PS300XO Ultra Flat Long Scale 300mm in 0.1mm divisions + cross and dot series on Ultra Flat glass, suitable for high precision DKD certifications
PS300XO Ultra Flat Long Scale 300mm in 0.1mm divisions + cross and dot series on Ultra Flat glass, suitable for high precision DKD certifications

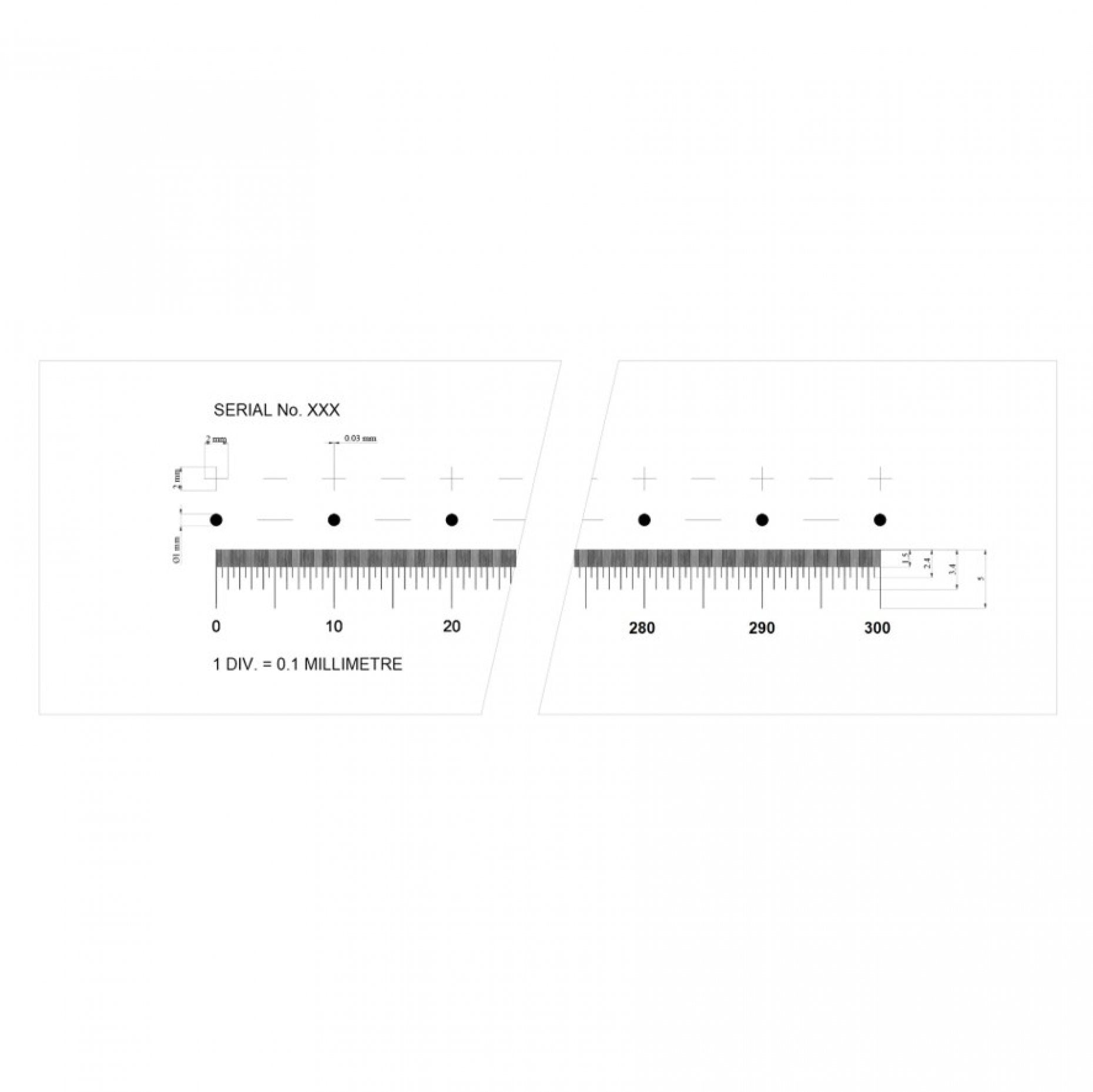

Pattern
PS300XO
Description
HD Long Scale 300mm/0.1mm + Dot and Cross Series
Key features
High Definition Long Scale with 300mm scale subdivided into 3000 divisions of 0.1mm (100µm) + cross and dot series at 10mm centres.
Glass Type and Thickness
Green Float 6mm thick, Ultra Flat
Dimensions
340mm x 30mm
Divisional Marker Lengths
1.5mm. 2.4mm, 3.4mm, 5.0mm
Line Thickness
0.03mm
Overall Accuracy
Within 0.007mm
