PFTE Flat Molds

Molds for Flat Embedding
Machined from PTFE Resin

for electron microscopy specimen embedding
cured acrylics are successfully released

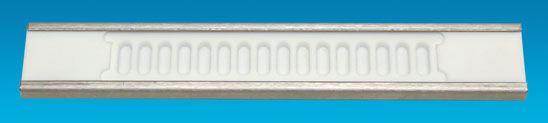

16 Cavities, cavity dimensions: 14 L x 4.8 W x 3 D (mm)
(10506)

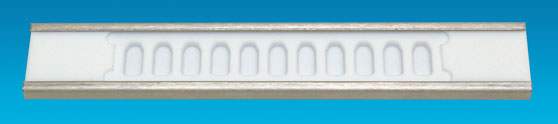

11 Size 00 Cavities, cavity dimensions: 14 L x 6.9 W x 3 D (mm)
(10506-10)

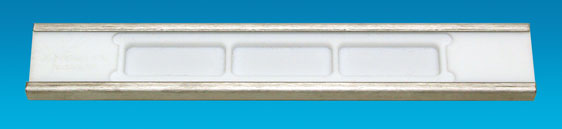

3 Cavities, cavity dimensions: 37.6 L x 13.8 W x 3 D (mm)
(10508)

• Especially useful when embedding with LR White, LR Gold, and Lowicryls for electron microscopy
• Can be used for both low temperature UV and thermal polymerization
• Unique configuration provides recesses for Thermanox® Cover Slips or ACLAR^® film to insure anaerobic polymerization (see ACLAR® under "Embedding")

Following curing, each of the specimen blocks can be removed by flexing the Mold. To restore flatness of the mold, simply slide it back into the provided metal Clamping Frame. PTFE resin is nonreactive and provides durability, flexibility and ease of release.

PELCO® Technical Notes, PTFE Molds for Flat Embedding (84KB PDF)

PTFE Flat Embedding Mold

(10509)

Six tapered round openings, 34mmOD at top and 32mmOD at the bottom, 3mm deep. The cavities are numbered 1-6 at the bottom.
(idea courtesy of Doug Price, University of Kentucky)
