PELCO SEMClip™ Geological Thin Section Holders, M4

15431-4

PELCO SEMClip™ Geological Thin Section Holder

Holds a standard geological thin section or petrographic slides of up to 47 x 27mm (compatible with 45 x 25mm, 46 x 26mm, 46 x 27mm, and 47 x 27mm). 2 clips are provided for secure holding. Tweezer inserts enable easy loading. Overall dimensions are 55 x 30 x 8mm. Material: aluminum with copper clips and brass screws.

Screw used is M2 x 3mm pan head screw, brass.

15435-4

PELCO SEMClip™ Variable Size Geological Thin Section Holder

This variable size geological thin section holder holds either standard petrographic slides of up to 48 x 28mm or slides from 40 x 20mm to 75 x 25mm. Two clips are provided for secure holding. Tweezers insert enables easy loading. Overall dimensions are 51 x 32 x 8mm. Material: vacuum grade aluminum with copper clips and brass screws.

Screw used is M2 x 3mm pan head screw, brass.

15432-4

PELCO SEMClip™ Dual Geological Thin Section Holder

Holds two standard geological thin sections or petrographic slides of up to 47 x 27mm (compatible with 45 x 25mm, 46 x 26mm, 46 x 27mm, and 47 x 27mm). Tweezer inserts enable easy loading. Clips are provided for secure holding. Overall dimensions are 55 x 58 x 8mm. Material: aluminum with copper clips and brass screws.

Screw used is M2 x 3mm pan head screw, brass.

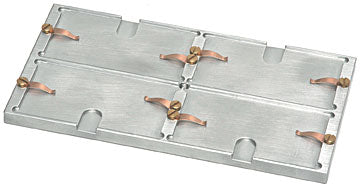

15434-4

PELCO SEMClip™ Quadruple Geological Thin Section Holder

Holds four standard geological thin sections or petrographic slides of up to 47 x 27mm (compatible with 45 x 25mm, 46 x 26mm, 46 x 27mm, and 47 x 27mm). Tweezer inserts enable easy loading. Clips are provided for secure holding. Overall dimensions are 107 x 58 x 8mm. Material: aluminum with copper clips and brass screws.

Screw used is M2 x 3mm pan head screw, brass.
