PELCO® Vacuum Pick-Up System with Pump

PELCO® Vacuum Pick-Up System with Pump



Selecting a Vacuum Pick-Up System


Handle and transport grids and wafers without the use of tweezers

Use this system for picking up delicate lightweight material with a finger controlled vacuum. Attach various hollow needle tips (5 included with system) or rubber cups (3 included with system) onto the pick-up pen.

Features:

  • Use easy finger control for picking up or releasing.
  • Not for wet or corrosive materials.
  • There is a convenient on/off switch on top of the pump body.
  • A Pick-Up Pen Stand benchtop organizer is available for the Vacuum Pick-Up System as option

The PELCO® Vacuum Pick-Up System includes: pump, finger control pen, five interchangeable needle tips (12, 16, 18, 20 and 25 gauge), 3 each clear silicone rubber vacuum cups (0.25", 0.125" and 0.375"), in-line filter and hose. Needle tip length is 39mm (1.53").

PELCO® Technical Notes, Vacuum Pick-Up System (395KB PDF)

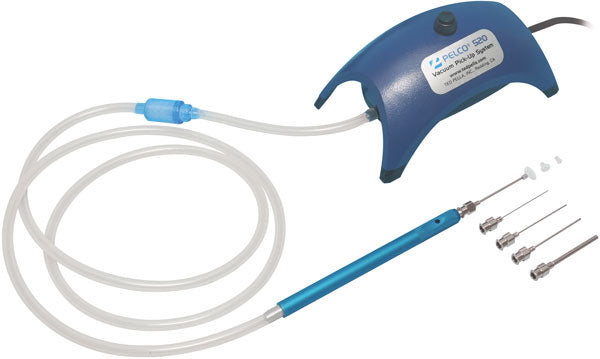

Vacuum Pick-Up System
shown in use

Vacuum Tips & Cups
Pen-Vac™ probes are interchangeable
with PELCO® Vacuum Pick-Up probes.

Vacuum Pick-Up Pen Stand
Benchtop organizer for the
PELCO® Vacuum Pick-Up System.

The PELCO® Vacuum Pick-Up System has a vacuum spec of 5" Hg. This equates to a suction force of 1.73g/mm2. Compensating for cup deformation and leakage, we have determined the practical lifting capacity for the cups and tips as:


Practical Lifting Capacity
Product No. Cup or Tip Size O.D. (mm) I.D. (mm) Lifting
Capacity (g)
520-4 Vac Cup 0.375" 9.53 - 70
520-5 Vac Cup 0.25" 6.4 - 35
520-6 Vac Cup 0.125" 3.18 - 10
520-7 Tip 12 gauge 2.77 2.36 5
520-8 Tip 16 gauge 1.65 1.18 1
520-9 Tip 18 gauge 1.27 0.80 0.5
520-10 Tip 20 gauge 0.9 0.56 0.3
520-11 Tip 25 gauge 0.52 0.24 0.05



Complete System includes: pump, finger control pen, five interchangeable needle tips (12, 16, 18, 20 and 25 gauge), 3 each clear silicone rubber vacuum cups (0.125", 0.25" and 0.375"), in-line filter and hose. Needle tips length is 39mm (1.53").

Useful to be added:

PELCO® Vacuum Pick-Up Pen Stand

Benchtop organizer for the PELCO® Vacuum Pick-Up System and Probes

PELCO® Vacuum Pick-Up Pen Stand
(520-20)

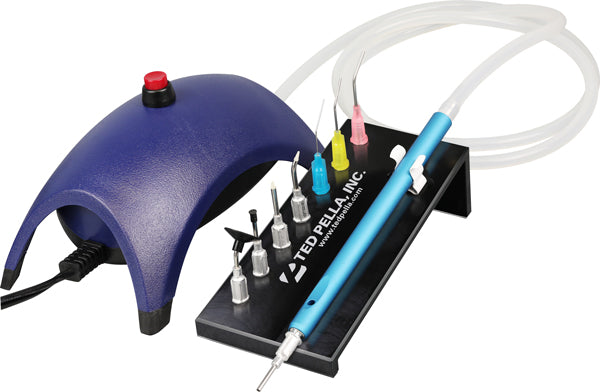

Stand with Probes and Vacuum Pick-Up System
(520-20, 520-1)

The perfect accessory for an organized bench space, the PELCO® Vacuum Pick-Up Pen Stand holds the Pick-Up Pen as well as seven probes. The slip-resistant base keeps the stand in place even when the system's silicone tube hangs over the edge of the work surface.

go to Probes and Cups

Documentation

SDS

Technical Notes
