The slow rotational speed of the PELCO^® R2 lends itself to EM tissue processing techniques. Slow rotation is recommended for processing specimens and leads to more complete infiltration without air mixing, giving improved results for tissue preparations.

The PELCO^® R2 has rubber cushioned feet on the bottom as well as on the back so it may be placed on either of two angles, 35° from horizontal when placed on the "bottom feet" and 55° from horizontal when placed on the "back feet".

A high torque motor maintains constant speed at full load. Variable speed is easily set with a rotary control. Rotational speed is less than 1 to greater than 7.5 rpm. The PELCO^® R2 has been tested under heavy load conditions to assure reliability.

A black-anodized head (1051) with 18 holes for bottles or vials up to 30mm in diameter comes with the R2. Our #12706 Snap-Cap® Vials are used in this head. Optional head is available (1054).

Dimensions:
Head: 19.7cm (7-3/4") O.D., 18 holes (32mm ø)
Body: 18.6cm (7-5/16") W, 16.5cm (6-1/2") H, 20.3cm (8") D

With 1051 Head Mounted the R2 Occupies the Following Dimensions:
19.7cm (7-3/4") W, 19.5cm (7-11/16") H, 20.3cm (8") D

Weight with 1051 Head: 2.4Kg (5.25 lbs.)

Power Requirements: Universal Voltage 100-240VAC, 45W, 50/60Hz

PELCO® Technical Notes, PELCO® R2 Rotary Mixer (229KB PDF)

PELCO^® R2 Rotator
with Heads with Clips for Test Tubes

Low-speed mixer for test tubes (1 - 7.5 RPM), design provides two angles 55° or 35°

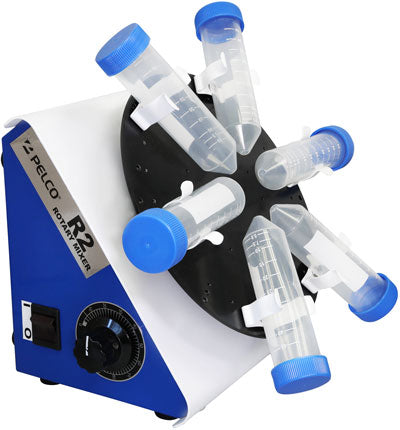

R2 Rotator Head with Clips for 50ml tubes
(#1050-2)

R2 Rotator Head with Clips for 5, 10 and 15ml tubes
(#1050-3)

PELCO R2 Rotator Head with Clips for 1.5 and 2.0ml tubes
(#1050-4)

The PELCO^® R2 Rotator has rubber cushioned feet on the bottom as well as on the back so it may be placed on either of two angles, 35° from horizontal when placed on the "bottom feet" and 55° from horizontal when placed on the "back feet".

A high torque motor maintains constant speed at full load. Variable speed is easily set with a rotary control. Rotational speed is less than 1 to greater than 7.5 rpm. The PELCO^® R2 has been tested under heavy load conditions to assure reliability.

Optional, 1054 Rotator Head for the PELCO^® R2 Rotator

1054 Rotator Head for the R2

1054 Rotator Head with #411 Specimen Vials loaded

Dimensions:
Head: 19.7cm (7-3/4") O.D., 31 holes (16.3mm ø)

#411 Clear Wheaton® Sample Vials with Rubber Lined Screw Cap
Solid top black phenolic caps with 14B white rubber liner are attached. The vials are manufactured from Wheaton 33® low extractable borosilicate glass (meets ASTM Type I Class A and USP Type I Standards) to protect against changes in pH and maintain purity of contents. They have uniform sidewall and bottom thicknesses, are lightweight and have excellent strength and clarity. Storage down to -40° C.

PELCO^® R1 Single Speed Rotator

Tissue infiltration for electron microscopy preparations.

PELCO^® R1 Single Speed Rotator shown in the 35° and 55° positions

This small, economical rotator is suitable for electron microscopy preparations. It has a slow speed of approximately 10RPM. It is effective for gentle and thorough infiltration of solvents and embedding plastics. The Rotator head has twelve holes which accommodate vials up to 30mm in diameter. Our #12706 Snap-Cap^® Vials are used in this head. See additional head below for up to 16mm diameter vials.

Dimensions:

Base: 10.2 x 15.6cm (4 x 6-1/8")
Rotor Head: (prod. no. 1058)15.9cm diameter x 2.7cm high (6-1/4 x 1-1/16"); 12 holes (32mm ø)
Height with Head Attached: 13.7cm (5-3/8")

1056 Rotator Head for the R1

PELCO® Technical Notes, PELCO® R1 Rotary Mixer (229KB PDF)
