PELCO® CLEM Silicon Support Grids with Silicon Nitride Membranes

PELCO® CLEM Silicon Support Grids with Silicon Nitride Membranes

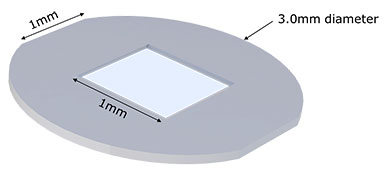

3.0mm major diameter with two parallel
1mm flats for repeatable alignment

FE-SEM image of flat

These silicon support grids with silicon nitride membranes have frames that are specially truncated with two parallel flats, which act as an aid for specimen alignment in Correlative Light & Electron Microscopy (CLEM) experiments. The CLEM grids are 200µm thick and 3mm in diameter, with two 1mm-long parallel flat edges on both sides. The silicon nitride films are available in four different thicknesses: 15 nm 50 nm, 100 nm and 200 nm, with a variety of aperture sizes from 0.1 x 0.1mm to 1 x 1mm.

  • The durability of the silicon nitride support film allows cells to be cultured directly on them.
  • Two CLEM grids can be glued together to construct a sealed, liquid-filled chamber, allowing the samples to remain in fluid while imaging in an electron microscope. Sealing can be done with either a fast-curing epoxy glue #14422 or M-Bond® 610 #16039.
  • The presence of the parallel flats on both sides of the CLEM grid allows the orientation and alignment of the sample to be maintained when using different imaging techniques.

1 x 1mm 0.75 x 0.75mm 0.5 x 0.5mm 0.25 x 0.25mm 0.5 x 1.5mm 0.1 x 1.5mm 0.1 x 0.1mm





Documentation

SDS

Technical Notes

View full details
Variant Variant total Quantity Price Variant total
PELCO® 15nm Silicon Nitride Support Film, with 0.25 x 0.25mm Window, for CLEM (Unit: pkg/10)21560CL-10
PELCO® 15nm Silicon Nitride Support Film, with 0.25 x 0.25mm Window, for CLEM (Unit: pkg/10)21560CL-10
1.471,90 lei/ea		 0,00 lei
1.471,90 lei/ea 0,00 lei
PELCO® 15nm Silicon Nitride Support Film, with 0.1 x 1.5mm (2) Windows, for CLEM (Unit: pkg/10)21568CL-10
PELCO® 15nm Silicon Nitride Support Film, with 0.1 x 1.5mm (2) Windows, for CLEM (Unit: pkg/10)21568CL-10
1.471,90 lei/ea		 0,00 lei
1.471,90 lei/ea 0,00 lei
PELCO® 15nm Silicon Nitride Support Film, with 0.1 x 0.1mm (9) Windows, for CLEM (Unit: pkg/10)21569CL-10
PELCO® 15nm Silicon Nitride Support Film, with 0.1 x 0.1mm (9) Windows, for CLEM (Unit: pkg/10)21569CL-10
1.471,90 lei/ea		 0,00 lei
1.471,90 lei/ea 0,00 lei
PELCO® 50nm Silicon Nitride Support Film, with 1.0 x 1.0mm Window, for CLEM (Unit: pkg/10)21518-10
PELCO® 50nm Silicon Nitride Support Film, with 1.0 x 1.0mm Window, for CLEM (Unit: pkg/10)21518-10
973,80 lei/ea		 0,00 lei
973,80 lei/ea 0,00 lei
PELCO® 50nm Silicon Nitride Support Film, with 0.5 x 0.5mm Window, for CLEM (Unit: pkg/10)21500CL-10
PELCO® 50nm Silicon Nitride Support Film, with 0.5 x 0.5mm Window, for CLEM (Unit: pkg/10)21500CL-10
987,90 lei/ea		 0,00 lei
987,90 lei/ea 0,00 lei
PELCO® 50nm Silicon Nitride Support Film, with 0.75 x 0.75mm Window, for CLEM (Unit: pkg/10)21501CL-10
PELCO® 50nm Silicon Nitride Support Film, with 0.75 x 0.75mm Window, for CLEM (Unit: pkg/10)21501CL-10
1.016,90 lei/ea		 0,00 lei
1.016,90 lei/ea 0,00 lei
PELCO® 50nm Silicon Nitride Support Film, with 1.5 x 0.5mm Window, for CLEM (Unit: pkg/10)21504CL-10
PELCO® 50nm Silicon Nitride Support Film, with 1.5 x 0.5mm Window, for CLEM (Unit: pkg/10)21504CL-10
1.016,90 lei/ea		 0,00 lei
1.016,90 lei/ea 0,00 lei
PELCO® 50nm Silicon Nitride Support Film, with 0.25 x 0.25mm Window, for CLEM (Unit: pkg/10)21505CL-10
PELCO® 50nm Silicon Nitride Support Film, with 0.25 x 0.25mm Window, for CLEM (Unit: pkg/10)21505CL-10
957,60 lei/ea		 0,00 lei
957,60 lei/ea 0,00 lei
PELCO® 50nm Silicon Nitride Support Film, with 0.1 x 1.5mm (2) Windows, for CLEM (Unit: pkg/10)21508CL-10
PELCO® 50nm Silicon Nitride Support Film, with 0.1 x 1.5mm (2) Windows, for CLEM (Unit: pkg/10)21508CL-10
987,90 lei/ea		 0,00 lei
987,90 lei/ea 0,00 lei
PELCO® 50nm Silicon Nitride Support Film, with 0.1 x 0.1mm (9) Windows, for CLEM (Unit: pkg/10)21509CL-10
PELCO® 50nm Silicon Nitride Support Film, with 0.1 x 0.1mm (9) Windows, for CLEM (Unit: pkg/10)21509CL-10
987,90 lei/ea		 0,00 lei
987,90 lei/ea 0,00 lei
PELCO® 100nm Silicon Nitride Support Film, with 0.5 x 0.5 mm Window, for CLEM (Unit: pkg/10)21506CL-10
PELCO® 100nm Silicon Nitride Support Film, with 0.5 x 0.5 mm Window, for CLEM (Unit: pkg/10)21506CL-10
738,20 lei/ea		 0,00 lei
738,20 lei/ea 0,00 lei
PELCO® 100nm Silicon Nitride Support Film, with 0.75 x 0.75 mm Window, for CLEM (Unit: pkg/10)21516CL-10
PELCO® 100nm Silicon Nitride Support Film, with 0.75 x 0.75 mm Window, for CLEM (Unit: pkg/10)21516CL-10
783,70 lei/ea		 0,00 lei
783,70 lei/ea 0,00 lei
PELCO® 100nm Silicon Nitride Support Film, with 1.0 x 1.0mm Window, for CLEM (Unit: pkg/10)21514CL-10
PELCO® 100nm Silicon Nitride Support Film, with 1.0 x 1.0mm Window, for CLEM (Unit: pkg/10)21514CL-10
783,70 lei/ea		 0,00 lei
783,70 lei/ea 0,00 lei
PELCO® 100nm Silicon Nitride Support Film, with 1.5 x 0.5mm Window, for CLEM (Unit: pkg/10)21511CL-10
PELCO® 100nm Silicon Nitride Support Film, with 1.5 x 0.5mm Window, for CLEM (Unit: pkg/10)21511CL-10
783,70 lei/ea		 0,00 lei
783,70 lei/ea 0,00 lei
PELCO® 100nm Silicon Nitride Support Film, with 0.25 x 0.25mm Window, for CLEM (Unit: pkg/10)21507CL-10
PELCO® 100nm Silicon Nitride Support Film, with 0.25 x 0.25mm Window, for CLEM (Unit: pkg/10)21507CL-10
738,20 lei/ea		 0,00 lei
738,20 lei/ea 0,00 lei
PELCO® 100nm Silicon Nitride Support Film, with 0.1 x 1.5mm (2) Windows, for CLEM (Unit: pkg/10)21512CL-10
PELCO® 100nm Silicon Nitride Support Film, with 0.1 x 1.5mm (2) Windows, for CLEM (Unit: pkg/10)21512CL-10
738,20 lei/ea		 0,00 lei
738,20 lei/ea 0,00 lei
PELCO® 100nm Silicon Nitride Support Film, with 0.1 x 0.1mm (9) Windows, for CLEM (Unit: pkg/10)21513CL-10
PELCO® 100nm Silicon Nitride Support Film, with 0.1 x 0.1mm (9) Windows, for CLEM (Unit: pkg/10)21513CL-10
738,20 lei/ea		 0,00 lei
738,20 lei/ea 0,00 lei
PELCO® 200nm Silicon Nitride Support Film, with 0.5 x 0.5mm Window, for CLEM (Unit: pkg/10)21520CL-10
PELCO® 200nm Silicon Nitride Support Film, with 0.5 x 0.5mm Window, for CLEM (Unit: pkg/10)21520CL-10
738,20 lei/ea		 0,00 lei
738,20 lei/ea 0,00 lei
PELCO® 200nm Silicon Nitride Support Film, with 0.75 x 0.75mm Window, for CLEM (Unit: pkg/10)21521CL-10
PELCO® 200nm Silicon Nitride Support Film, with 0.75 x 0.75mm Window, for CLEM (Unit: pkg/10)21521CL-10
782,00 lei/ea		 0,00 lei
782,00 lei/ea 0,00 lei
PELCO® 200nm Silicon Nitride Support Film, with 0.1 x 0.1mm (9) Windows, for CLEM (Unit: pkg/10)21529CL-10
PELCO® 200nm Silicon Nitride Support Film, with 0.1 x 0.1mm (9) Windows, for CLEM (Unit: pkg/10)21529CL-10
736,10 lei/ea		 0,00 lei
736,10 lei/ea 0,00 lei
PELCO® 200nm Silicon Nitride Support Film, with 1.5 x 0.5mm Window, for CLEM (Unit: pkg/10)21524CL-10
PELCO® 200nm Silicon Nitride Support Film, with 1.5 x 0.5mm Window, for CLEM (Unit: pkg/10)21524CL-10
782,00 lei/ea		 0,00 lei
782,00 lei/ea 0,00 lei
PELCO® 200nm Silicon Nitride Support Film, with 1.0 x 1.0mm Window, for CLEM (Unit: pkg/10)21522CL-10
PELCO® 200nm Silicon Nitride Support Film, with 1.0 x 1.0mm Window, for CLEM (Unit: pkg/10)21522CL-10
782,00 lei/ea		 0,00 lei
782,00 lei/ea 0,00 lei
PELCO® 200nm Silicon Nitride Support Film, with 0.25 x 0.25mm Window, for CLEM (Unit: pkg/10)21525CL-10
PELCO® 200nm Silicon Nitride Support Film, with 0.25 x 0.25mm Window, for CLEM (Unit: pkg/10)21525CL-10
736,10 lei/ea		 0,00 lei
736,10 lei/ea 0,00 lei
PELCO® 200nm Silicon Nitride Support Film, with 0.1 x 1.5mm (2) Windows, for CLEM (Unit: pkg/10)21528CL-10
PELCO® 200nm Silicon Nitride Support Film, with 0.1 x 1.5mm (2) Windows, for CLEM (Unit: pkg/10)21528CL-10
774,80 lei/ea		 0,00 lei
774,80 lei/ea 0,00 lei
