PELCO® Castable Embedding Supplies
PELCO® Castable Embedding Supplies
Example: Circuit Board encapsulated using the PELCO® Epoxy Mount Kit.
The clear resin allows for easy identification of the sample.
813-500, 813-510, 813-501, 502, 504, 505, 514, 515
128-4, 12904-20, 12906-20
PELCO® 2-Hour Epoxy Mount Kit
for optical clarity, high hardness, low viscosity and good adhesion
The PELCO® Epoxy Mount Kit uses a cold embedding material designed for metallography, ceramography, geology and petrology samples. Used for light microscopy, scanning electron microscopy and micro probe analysis. It is low viscosity, low exotherm reaction and low shrinkage.
It can be used in conjunction with vacuum impregnation to ensure complete and void-free embedding. The cured resin is extremely hard, optically clear, and has excellent bond strength. It gives excellent polish and edge retention to the sample. Polymerization time is 2 hours at 77° F (25° C). Mixing ratio is 2:1 per volume (resin 2 parts to hardener 1 part).
PELCO® 24-Hour Epoxy Mount Kit
for optical clarity, high hardness, low viscosity and good adhesion
The PELCO® 24-Hour Epoxy Mount Kit has the same optical clarity, high hardness, low shrinkage and low viscosity as our 2-Hour epoxy kit, but with a much longer pot life (up to one hour) and slower curing (24 hours). This allows for embedding larger batches in one charge and better impregnation of porous samples.. The longer pot life gives ample time to remove trapped gas and to avoid air bubbles in the embedding.
It can be used with vacuum or pressure impregnation to remove trapped gas. The cured resin is extremely hard, optically clear and has excellent bond strength. It gives excellent edge retention during grinding and polishing of metallographic samples. Polymerization time is 24 hours at 77°F (25°C). Mixing ratio is 3:1 per volume (resin 3 parts to hardener 1 part).
813-501 PELCO® Epoxy Resin, 1 gallon (3,785ml)
813-504 PELCO® Fast Cure Hardener (2 hour), 0.5 gallon (1,892ml)
813-503 PELCO® Epoxy Pump, set of 2
128-4 Mixing Sticks, pkg/100
12904-20 Tri-Stir Beakers, 100ml, with pouring spout, pkg/20
12906-20 Tri-Stir Beakers, 250ml, with pouring spout, pkg/20
813-501 PELCO® Epoxy Resin, 1 gallon (3,785ml)
813-514 PELCO® Slow Cure Hardener (24 hour), 0.33 gallon (1262ml)
813-503 PELCO® Epoxy Pump, set of 2
128-4 Mixing Sticks, pkg/100
12904-20 Tri-Stir Beakers, 100ml, with pouring spout, pkg/20
12906-20 Tri-Stir Beakers, 250ml, with pouring spout, pkg/20
PELCO® Technical Notes, PELCO® 24-Hour Epoxy Mount Kit (PDF)
Note: This product is hazardous. An extra shipping charge is required by the Carriers when hazardous goods are transported.
PELCO® Epoxy Pump Set
813-503
The pumps screw directly onto the gallon, 1/2 gallon or quart bottles of resin and hardener allowing for quick, exact and clean dispensing. The pumps dispense one fluid once per stroke. For example, if 3 oz. are required, two strokes of one pump and one of the other, will deliver the correct ratio.
PELCO® Technical Notes, PELCO® Epoxy Pump Set (PDF)

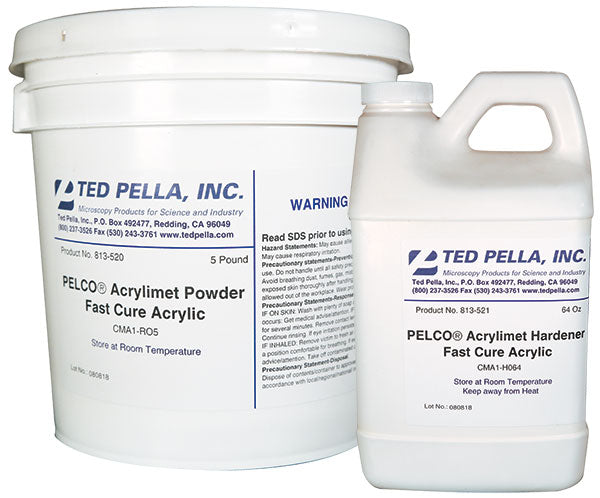

PELCO® Acrylimet
813-520, 521, 522
PELCO® Acrylimet for quick turn-around sample embedding using a castable resin system comprising an acrylic powder with liquid solvent/ hardener. With a room temperature cure time of 5 – 8 minutes following mixing, a cured hardness of approximately 85 Shore D, only moderate shrinkage and being semi-transparent, PELCO® Acrylimet is ideal for quickly embedding electronic components, printed circuit board cross sections and a variety of materials science samples ready for metallographic sample preparation.
#813-520, 813-522 SDS (102KB PDF)
Note: The liquid solvent hardener #813-521 is hazardous. An extra shipping charge is required by the Carriers when hazardous goods are transported.
