PELCO® “Air-Out” Vacuum System
PELCO® “Air-Out” Vacuum System
813-600, 813-600-220

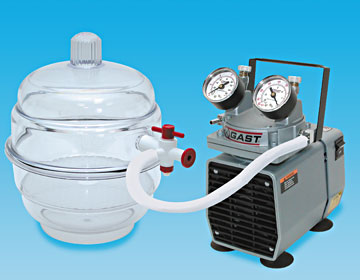

For removal of air bubbles from the epoxy resin mixture, providing enhanced bonding and embedding quality. The PELCO® "Air-Out" Vacuum system comprises the 2246-1 large, clear Polycarbonate Desiccator; the 3436 or 3436-220 oil-free Diaphragm Pump and 4 ft. Silicone Vacuum Hose. The large, clear desiccator allows for monitoring the air from the embedding epoxy. The large 9" plate provides room for a large number of samples for simultaneous out gassing.
| Specifications for the 2246-1 Large, All-Clear Vacuum Desiccator | ||
|
inches
|
mm
|
|
| Flange O.D. |
10-3/4
|
273
|
| Inside Diameter |
9-7/16
|
240
|
| Plate Diameter |
9
|
230
|
| Overall Height |
12-1/8
|
311
|
| Maximum Clearance above plate |
7-3/4
|
197
|
