Parallel Line Grids 3.00-3.05mm Diameter

Parallel Line Grids 3.00-3.05mm Diameter

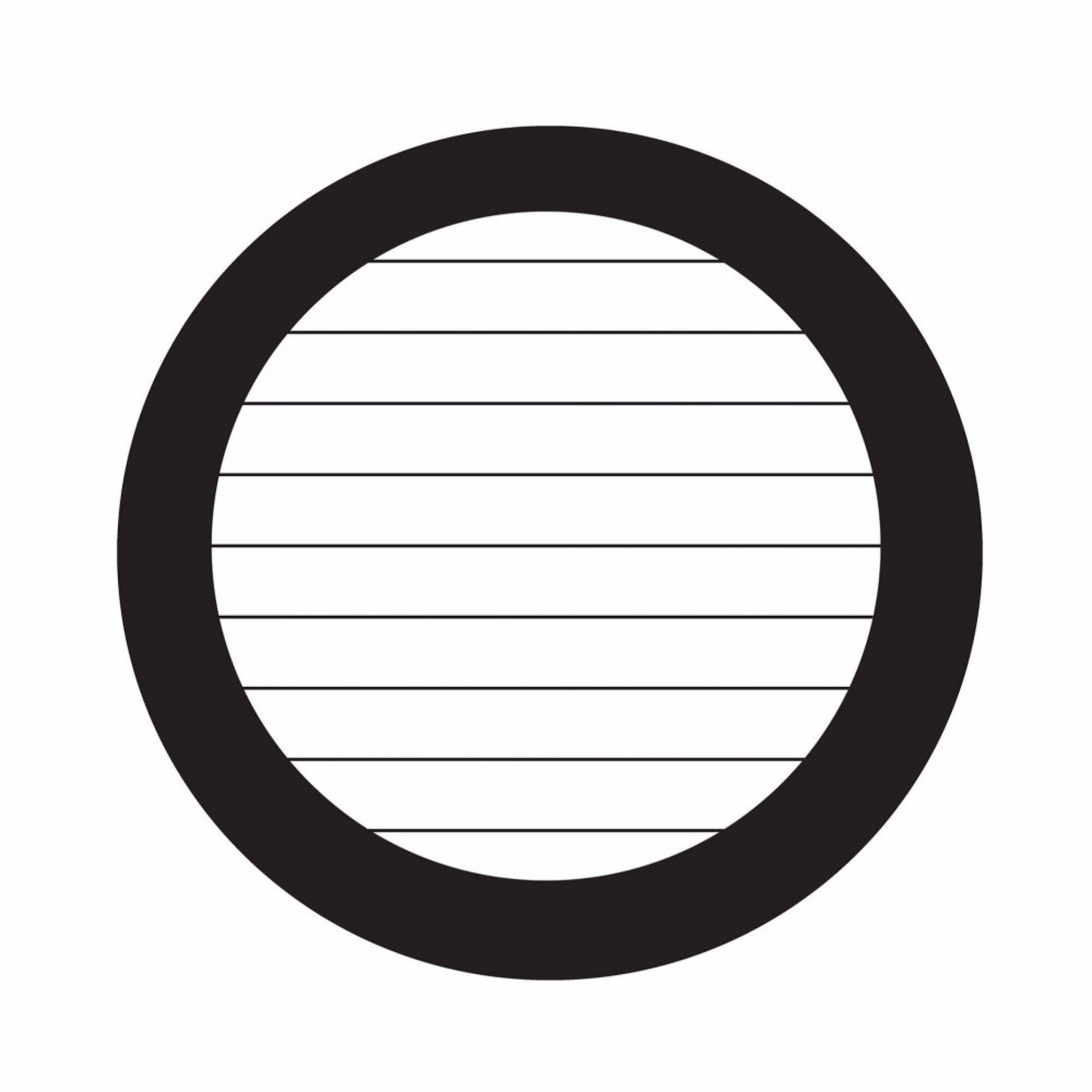

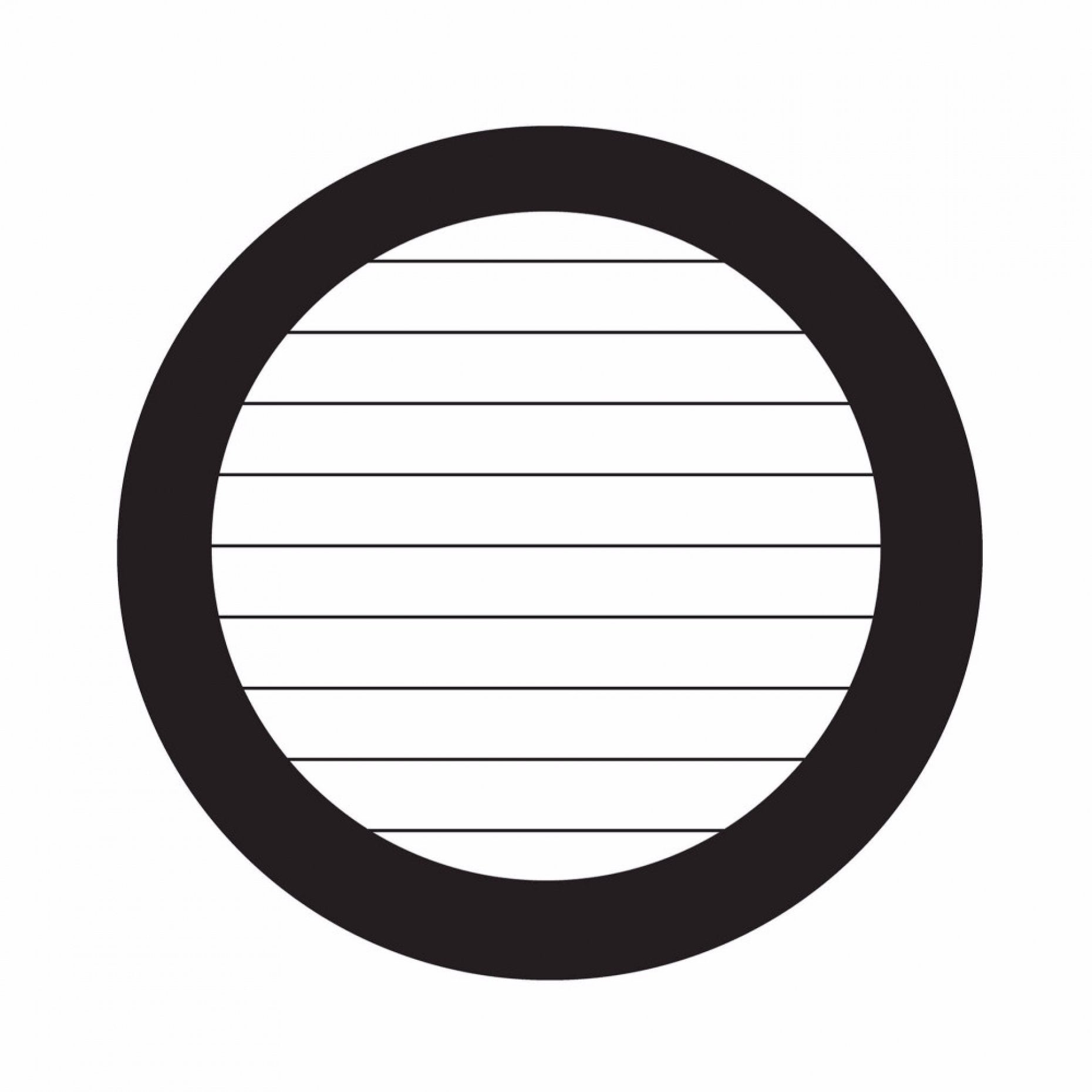

254 Microns Pitch 1G_100L

Material  Part number
Copper 1GC100L
Nickel 1GN100L
Pattern Pitch microns Mesh Space microns Bar microns Transmission % Tolerance +/-microns
1G_100L 254 100 204 50 65 5





165 Microns Pitch HF45_

Material  Part number
Copper HF45Cu
Nickel HF45Ni
Pattern Pitch microns Mesh Space microns Bar microns Transmission % Tolerance +/-microns
HF45_ 165 150 127 38 60 3





127 Microns Pitch 1G_200L/HF46_

Material  Part number
Copper 1GC200L
Copper HF46Cu
Nickel 1GN200L
Nickel HF46Ni
Pattern Pitch microns Mesh Space microns Bar microns Transmission % Tolerance +/-microns
HF46_ 127 200 92 35 53 2
1G_200L 127 200 102 25 80 5

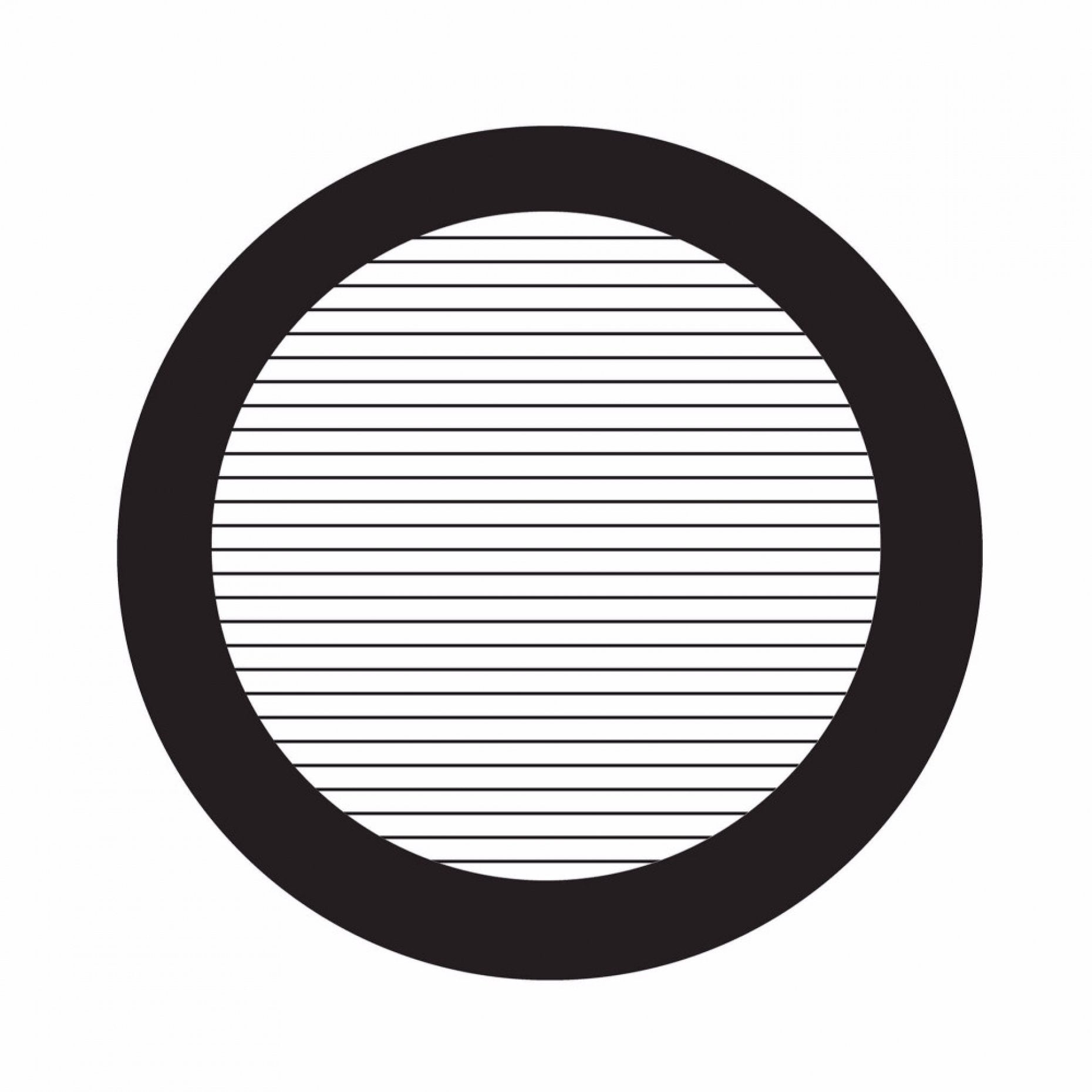

84 Microns Pitch 1G_300L

Material  Part number
Copper 1GC300L
Nickel 1GN300L
Pattern Pitch microns Mesh Space microns Bar microns Transmission % Tolerance +/-microns
1G_300L 84 300 62 22 55 5





Documentation

SDS

Technical Notes

🚚 Estimated Delivery: 5 - 6 weeks from payment confirmation

View full details
Variant Variant total Quantity Price Variant total
100 Mesh 254 Microns Pitch Parallel Line Grids, Copper (Unit: 100/vial)1GC100L
100 Mesh 254 Microns Pitch Parallel Line Grids, Copper (Unit: 100/vial)1GC100L
121,23 lei/ea		 0,00 lei
121,23 lei/ea 0,00 lei
100 Mesh 254 Microns Pitch Parallel Line Grids, Nickel (Unit: 100/vial)1GN100L
100 Mesh 254 Microns Pitch Parallel Line Grids, Nickel (Unit: 100/vial)1GN100L
133,11 lei/ea		 0,00 lei
133,11 lei/ea 0,00 lei
150 Mesh 165 Microns Pitch Parallel Line Grids, Copper (Unit: 100/vial)HF45Cu
150 Mesh 165 Microns Pitch Parallel Line Grids, Copper (Unit: 100/vial)HF45Cu
121,23 lei/ea		 0,00 lei
121,23 lei/ea 0,00 lei
150 Mesh 165 Microns Pitch Parallel Line Grids, NickelHF45Ni
150 Mesh 165 Microns Pitch Parallel Line Grids, NickelHF45Ni
133,11 lei/ea		 0,00 lei
133,11 lei/ea 0,00 lei
200 Mesh 127 Microns Pitch Parallel Line Grids, Copper (Unit: 100/vial)1GC200L
200 Mesh 127 Microns Pitch Parallel Line Grids, Copper (Unit: 100/vial)1GC200L
121,23 lei/ea		 0,00 lei
121,23 lei/ea 0,00 lei
200 Mesh 127 Microns Pitch Parallel Line Grids, Copper HF (Unit: 100/vial)HF46Cu
200 Mesh 127 Microns Pitch Parallel Line Grids, Copper HF (Unit: 100/vial)HF46Cu
121,23 lei/ea		 0,00 lei
121,23 lei/ea 0,00 lei
200 Mesh 127 Microns Pitch Parallel Line Grids, Nickel (Unit: 100/vial)1GN200L
200 Mesh 127 Microns Pitch Parallel Line Grids, Nickel (Unit: 100/vial)1GN200L
133,11 lei/ea		 0,00 lei
133,11 lei/ea 0,00 lei
200 Mesh 127 Microns Pitch Parallel Line Grids, Nickel HF (Unit: 100/vial)HF46Ni
200 Mesh 127 Microns Pitch Parallel Line Grids, Nickel HF (Unit: 100/vial)HF46Ni
133,11 lei/ea		 0,00 lei
133,11 lei/ea 0,00 lei
300 Mesh 84 Microns Pitch Parallel Line Grids, Copper (Unit: 100/vial)1GC300L
300 Mesh 84 Microns Pitch Parallel Line Grids, Copper (Unit: 100/vial)1GC300L
121,23 lei/ea		 0,00 lei
121,23 lei/ea 0,00 lei
300 Mesh 84 Microns Pitch Parallel Line Grids, Nickel (Unit: 100/vial)1GN300L
300 Mesh 84 Microns Pitch Parallel Line Grids, Nickel (Unit: 100/vial)1GN300L
133,11 lei/ea		 0,00 lei
133,11 lei/ea 0,00 lei
