Paraffin Block Trimmers

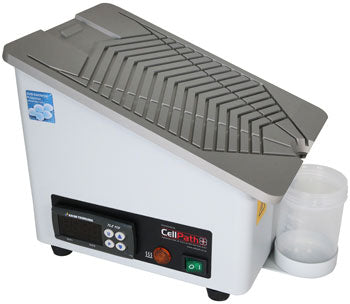

Paraffin Block Trimmer+

28101-6

Wax Block Trimmer+ efficiently removes excess paraffin from the outside of a tissue cassette following embedding. The edges and writing surface of the tissue cassette are de-waxed effortlessly by passing the paraffin block across the patterned heated work surface. Melted paraffin wax is then collected in a disposable collection pot.

The Block Trimmer+ allows users to prepare tissue blocks with no risk of damage to the printed text or barcode on the tissue cassette. It incorporates an ultra-fast heating system for rapid warm up, which combined with an extra-large heated work surface, allows multiple blocks to be passed across the work surface at one time.

• Revised design hotplate – trimmed wax is quickly wicked away
• ExacTrim Locator – removes wax from the writing surface of a standard cassette implanted in a Super Mega Mothership Cassette. It can also be used with conventional blocks as fine detail trimmer
• Variable digital temperature control with a memory function for desired temperature at start-up
• Neutral slope to satisfy both left and right-hand users
• Miniature circuit breaker eliminates fuses
• Dimensions: 152 Wx 202 D x 183.5mm H (6 W x 8 D x 7" H)
• Temperature Range: 80°C (176°F) ±1°C at 20°C (68°F) ambient
• Power Supply/Rating: Dual Voltage 220-240V or 110-120V 50/60Hz AC/250 Watts
• Weight: 3.0kg (5 lbs)

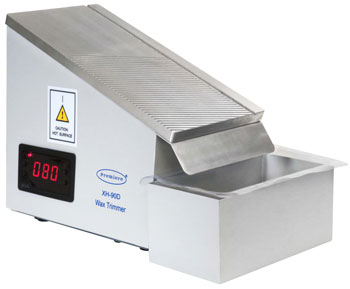

Block Wax Trimmer

28154-D, 28154-230-D

Our Block Wax Trimmer is an efficient appliance for removing excess paraffin from embedding tissue cassettes. This wax trimmer may be used with all sizes of biopsy and mega cassettes. The grooved, heated surface channels melted wax into a removable collection tray that stays in place at the base of the unit by magnetic contact. Disposable plastic liners are included to insert inside the collection tray for easy disposal of the runoff wax. The temperature is digitally controlled with a low temperature of 80°C (176°F) to a high temperature of 100°C (212°F).

Dimensions (including tray): 6" W x 11-1/4" D x 8" H (15.2 x 28.5 x 20.3cm)
