NW/KF Electrical Feedthroughs

NW/KF Electrical Feedthroughs

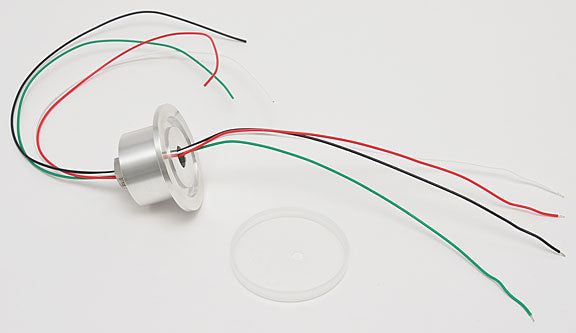

The PELCO® NW/KF Electrical Feedthrough is a universal type feedthrough, which can be used either as high voltage or instrumentation feedthrough for devices in vacuum. The PELCO® NW/KF Electrical Feedthrough has 4 wires and each wire is rated to a maximum of 1000V and 1A in vacuum. The wires are color coded; white, black, red and green and have no connectors. The feedthrough is based on an aluminum bored stub and available in NW/KF 16, -25, -40 and -50.

Flange Material Aluminum
Flange Sizes NW/KF 16, -25, 40 and -50
Maximum Voltage 1000V
Maximum Current in Vacuum 1A
Vacuum Rating Up to 10-6 mbar (10-6 Torr)
Number of Wires 4; white, black, red and green
Wire Gauge (AWG) / Number of strands 24 / 7
Wire Insulation PTFE
Wire Length 8"
Operating Temperature -20°C to 125°C (-4°F to 257°F)
Applications High Voltage or Instrumentation

Documentation

SDS

Technical Notes

View full details
Variant Variant total Quantity Price Variant total
NW/KF16 Electrical Feedthrough, 4 wires, Aluminum/PTFE, A=19mm, B=27mm (Unit: each)92516-16
NW/KF16 Electrical Feedthrough, 4 wires, Aluminum/PTFE, A=19mm, B=27mm (Unit: each)92516-16
911,90 lei/ea		 0,00 lei
911,90 lei/ea 0,00 lei
NW/KF25 Electrical Feedthrough, 4 wires, Aluminum/PTFE, A=25mm, B=27mm (Unit: each)92516-25
NW/KF25 Electrical Feedthrough, 4 wires, Aluminum/PTFE, A=25mm, B=27mm (Unit: each)92516-25
921,40 lei/ea		 0,00 lei
921,40 lei/ea 0,00 lei
NW/KF40 Electrical Feedthrough, 4 wires, Aluminum/PTFE, A=38mm, B=33mm (Unit: each)92516-40
NW/KF40 Electrical Feedthrough, 4 wires, Aluminum/PTFE, A=38mm, B=33mm (Unit: each)92516-40
1.055,80 lei/ea		 0,00 lei
1.055,80 lei/ea 0,00 lei
NW/KF50 Electrical Feedthrough, 4 wires, Aluminum/PTFE, A=51mm, B=33mm (Unit: each)92516-50
NW/KF50 Electrical Feedthrough, 4 wires, Aluminum/PTFE, A=51mm, B=33mm (Unit: each)92516-50
1.078,50 lei/ea		 0,00 lei
1.078,50 lei/ea 0,00 lei
