NG61 Grain Sizing graticule to ISO4967

NG61 Grain Sizing graticule to ISO4967

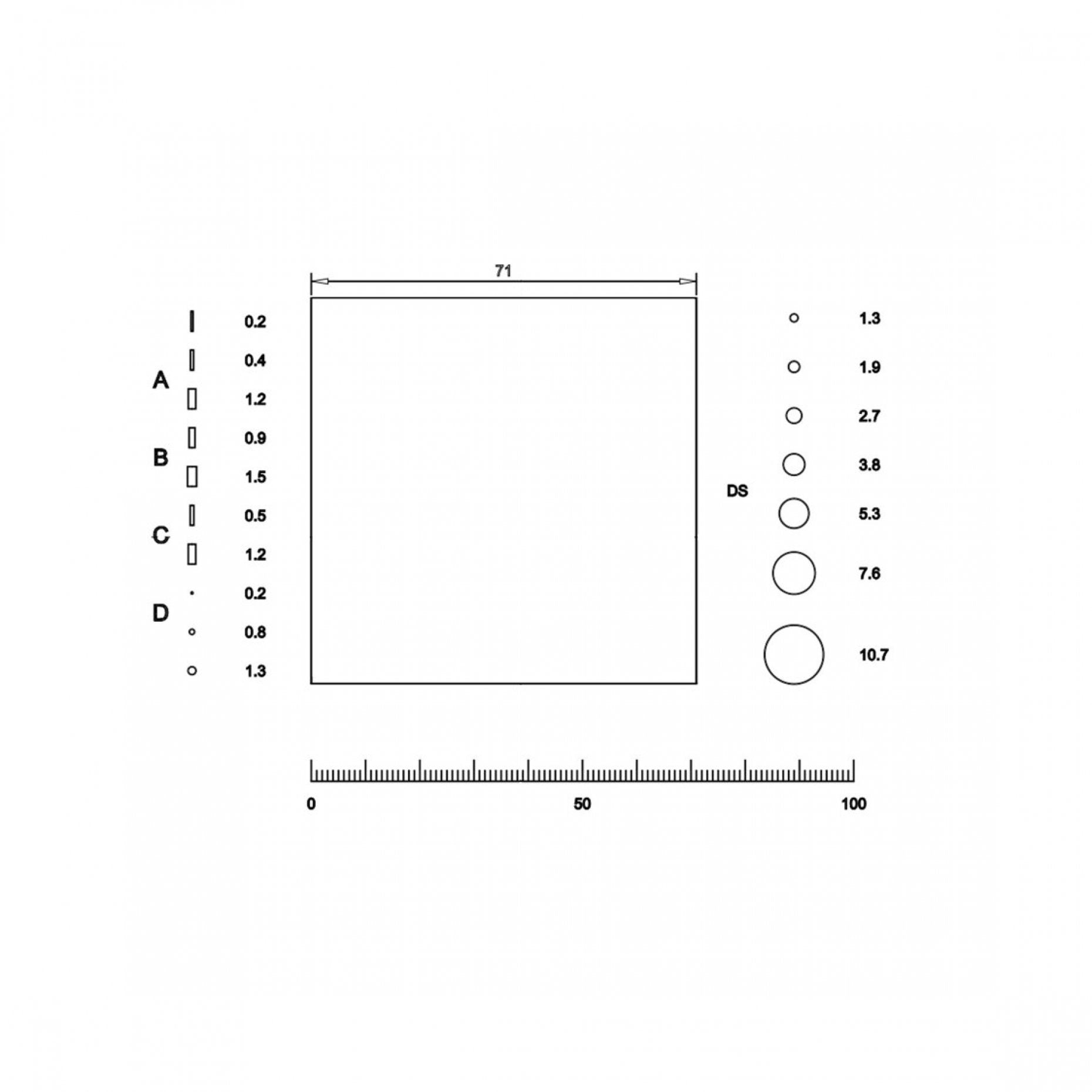

Pattern

NG61

Description

Grain Sizing Reticle to ISO4967 / JIS G0555

Key features

Eyepiece Reticle for the determination of non-metallic inclusion content of steel.

Scaled for use with 10x objective magnification.

JIS 0555 also has a requirement for a point counting reticle, which we can make if provided with dimensional details.

Line Thickness

0.017mm +/-0.003mm

Glass Type and Thickness

Soda Lime 1.5mm thick

Overall Tolerance

+/-0.005mm

Diameter Tolerance

+0/-0.1mm

Divisional Marker Lengths

0.39mm, 0.2mm

Orientation

Correct reading through glass

Documentation

SDS

Technical Notes

🚚 Estimated Delivery: 5 - 6 weeks from payment confirmation
