NEW Pelcotec™ Etched Si CDMS-XY ISO

Available as NIST Traceable or as Certified against NIST Standard

Easy to use and very useful for quick and precise SEM, FE-SEM, FIB, CD-SEM, LM, and AFM magnification calibration. Etched lines are provided in both X and Y axes for ease of 2 axis calibration without stage rotation.

Fully-featured and traceable calibration standards for a wide measurement range. They are made using the latest semiconductor and MEMS manufacturing techniques for etching features yielding superior line edge quality (Line edge roughness of +/- 0.3nm per 1um length of line edge) and are ideal for low keV imaging (≤1keV).

500nm, 250nm, 100nm and 50nm lines are only on the Etched Si CDMS-XY-0.1T-ISO and 0.1C-ISO products

The Pelcotec™ Etched Si CDMS-XY Calibration Standard is available in two feature size ranges, and as traceable at the wafer level to a NIST standard (ISO 17025:2017 Sampling Scope of Accreditation) or individually certified to a NIST standard in an ISO 17205:2017 accredited calibration laboratory for a total of four versions. Recertification of these ISO critical dimension standards in an ISO 17205:2017 accredited calibration laboratory is available.

Pelcotec™ Etched Si CDMS-XY-1T-ISO
Fully traceable at the wafer level to a NIST standard (ISO 17025:2017 Sampling Scope of Accreditation). Has features from 2.0mm to 1um for a magnification range from 10x - 20,000x; ideal for desktop SEMs and low to medium magnification applications.
Representative CDMS-XY-1T-ISO Traceable Certificate (345KB PDF)

Pelcotec™ Etched Si CDMS-XY-0.1T-ISO
Fully traceable at the wafer level to a NIST standard (ISO 17025:2017 Sampling Scope of Accreditation). Has features from 2.0mm to 50nm for a magnification range from 10x - 200,000x; for all SEM and most FE-SEM applications.
Representative CDMS-XY-0.1T-ISO Traceable Certificate (347KB PDF)

* Pelcotec™ Etched Si CDMS-XY-1C-ISO
Individually certified in an ISO 17205:2017 accredited calibration laboratory against a NIST standard. Has features from 2.0mm to 1µm for a magnification range from 10x - 20,000x; ideal for desktop SEMs and low to medium magnification applications.
Representative CDMS-XY-1C-ISO Conformance Certificate (513KB PDF)

* Pelcotec™ Etched Si CDMS-XY-0.1C-ISO
Individually certified in an ISO 17205:2017 accredited calibration laboratory against a NIST standard with features from 2.0mm to 50nm for a magnification range up to 10x - 200,000x; for all SEM and most FE-SEM applications.
Representative CDMS-XY-0.1C-ISO Conformance Certificate (702KB PDF)

* Recertification in an ISO 17025:2017 accredited calibration laboratory available.

Feature sizes for the Pelcotec™ Etched Si CDMS-XY-1T-ISO and -1C-ISO are:
2mm, 1mm, 0.5mm, 0.1mm, 50µm, 10µm, 5µm, 2µm, and 1µm

Feature sizes for the Pelcotec™ Etched Si CDMS-XY-0.1T-ISO and -1C-ISO are:
2mm, 1mm, 0.5mm, 0.1mm, 50µm 10µm, 5µm, 2µm, 1µm, 500nm, 250nm, 100nm, and 50nm

Comparison Table Below

	Pelcotec™ Etched Si CDMS-XY-1-ISO	Pelcotec™ Etched Si CDMS-XY-0.1-ISO
Substrate: High conductivity silicon (resistivity of 0.001 - 0.002 Ohm/cm)	✓	✓
Substrate size: 2.5 x 2.5mm	✓	✓
Substrate thickness: 525 ±10µm	✓	✓
Unique serial identification number per chip

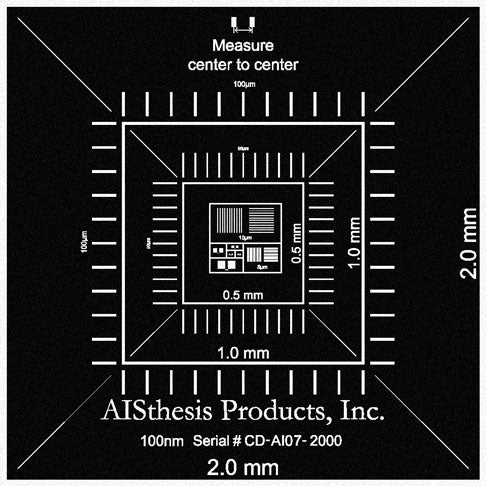

Calibration squares at 2mm, 1mm, 0.5mm, 0.25mm	✓	✓

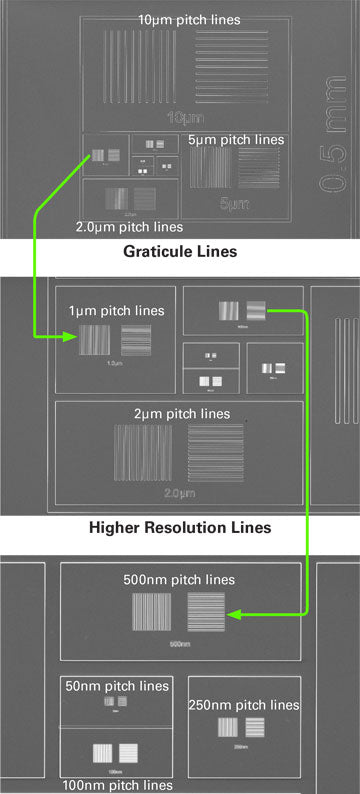

Graticule lines perpendicular to X and Y axes ruled at 10um, 5um, 2um and 1um pitch	✓	✓
High Resolution version only - Additional graticule lines perpendicular to X and Y axes ruled at 500, 250, 100nm and 50nm pitch	—	✓
Traceable at the wafer level to NIST (ISO 17025:2017 Sampling Scope of Accreditation)	T versions	T versions
Direct certification of CDMS chip to a NIST standard (ISO 17025:2017 Sampling Scope of Accreditation)	C versions	C versions
Recertification of CDMS chip to a NIST standard (ISO 17025:2017 Sampling Scope of Accreditation) available	C versions only	C versions only
Available unmounted	✓	✓
SEM mounts A-R available	✓	✓
Precision better than 0.3%	✓	✓
Line edge roughness of +/- 0.3nm per 1um length of line edge.	✓	✓
Measurements reported with an uncertainty (k=2)* of ±0.012μm	C versions	C versions

* Reported uncertainties represent expanded uncertainties expressed at approximately the 95%confidence level using a coverage factor of k = 2. The reported expanded measurement uncertainty is stated as the standard measurement uncertainty multiplied by the coverage factor K such that the coverage probability corresponds to the approximately 95%.

Etched Si CDMS product supplied with certification to ISO 17025:2017 requirement
from AISthesis Products, Inc., as an ISO/IEC 17025:2017 accredited calibration laboratory.

Certificate Number: 4904.01

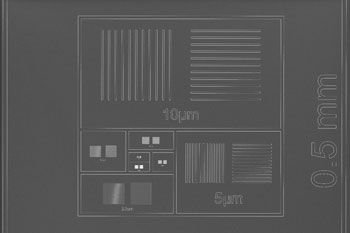

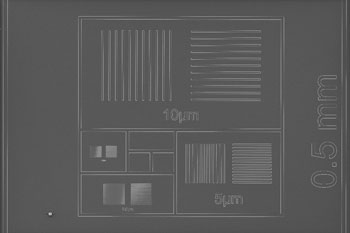

The Pelcotec™ Etched Si CDMS-XY ISO Critical Dimensions and Magnification Standards are made on an ultra flat silicon substrate with a precision etched lines for features sets from 100nm to 2µm. Due to its sturdy construction, the Etched Si CDMS-XY ISO Standard can be cleaned using a plasma cleaner on low settings.

The smaller features are nested for easy navigation and quick calibration. The accuracy of the features is 0.3% or better. The actual size of the standard is 2.5 x 2.5mm with a thickness of 525µm ±10µm. There is no coating on the Si surface. Each Pelcotec™ Etched Si CDMS-XY ISO Calibration Standard has a unique identification number.

They are available either unmounted or mounted on SEM holders A-R. For AFM applications the Pelcotec™ Etched Si CDMS-XY ISO is mounted on a 12mm AFM disc; for LM applications it is mounted on a 25 x 75mm glass slide.

The Etched Si CDMS-XY ISO Standard may also be mounted on a custom mount of your choice.

Store the Pelcotec™ Etched Si CDMS-XY ISO Calibration Standard in a vacuum desiccator such as the PELCO® SEM Sample Stub Vacuum Desiccator.

Pelcotec™ Etched Si CDMS-XY-1T-ISO

Traceable at the wafer level to a NIST standard (ISO 17025:2017 Sampling Scope of Accreditation) with features from 2mm to 1µm for magnification 10x-20,000x, ideal for desktop SEM.

Feature sizes: 2mm, 1mm, 0.5mm, 0.1mm, 50µm, 10µm, 5µm, 2µm, and 1µm

See mount selections, types A-R

Pelcotec™ Etched Si CDMS-XY-0.1T-ISO

Traceable at the wafer level to NIST standard (ISO 17025:2017 Sampling Scope of Accreditation) with features from 2mm to 50nm for magnification 10x-200,000x for SE, FE-SEM and FIB.

Feature sizes: 2mm, 1mm, 0.5mm, 0.1mm, 50µm, 10µm, 5µm, 2µm, 1µm, 500nm, 250nm, 100nm, and 50nm

See mount selections, types A-R

Pelcotec™ Etched Si CDMS-XY-1C-ISO

Certified to a NIST standard in an ISO 17205:2017 accredited calibration lab with features from 2mm to 1µm for magnification 10x-20,000x, ideal for desktop SEM.

Feature sizes: 2mm, 1mm, 0.5mm, 0.1mm, 50µm, 10µm, 5µm, 2µm, and 1µm

Recertification service in an ISO 17025:2017 accredited calibration laboratory available (see #713-1-RECERT in the product table below).

See mount selections, types A-R

Pelcotec™ Etched Si CDMS-XY-0.1C-ISO

Certified to a NIST standard in an ISO 17205:2017 accredited calibration lab with features from 2mm to 50nm for magnification 10x-200,000x for SEM, FE-SEM and FIB.

Feature sizes: 2mm, 1mm, 0.5mm, 0.1mm, 50µm 10µm, 5µm, 2µm, 1µm, 500nm, 250nm, 100nm, and 50nm

Recertification service in an ISO 17025:2017 accredited calibration laboratory available (see #714-01-RECERT in the product table below).

See mount selections, types A-R
